TFT LCD Display Factory Supply 4.3 Inch TFT Monitor LCD 800(RGB)X480 ST7282 IPS Module

Introducing the SFTO430HX-7011A-CT: A Dynamic 4.3 Inch TFT LCD Monitor with ST7282 Drive IC

Discover the SFTO430HX-7011A-CT, a cutting-edge 4.3-inch TFT LCD module designed for optimal performance and versatility. With a resolution of 800×480 pixels, this module offers crisp visuals and seamless integration. Powered by the advanced SC7282 IC, it combines controller and driver functions effortlessly, ensuring smooth operation.

Featuring a wide viewing angle of 80/80/80/80 and a sleek 16:9 aspect ratio, the SFTO430HX-7011A-CT provides an immersive visual experience from any angle. Whether mounted or handheld, its IPS full viewing angle guarantees exceptional clarity and detail.

Enhanced with a brightness of 350 nits, this landscape-mode module delivers vibrant displays in any environment. Additionally, it offers compatibility with Resistive Touch Screen and Projected Capacitive Touch Screen options, catering to diverse application needs.

Operating flawlessly in temperatures ranging from -30℃ to +80℃, with storage capabilities from -35℃ to +85℃, the SFTO430HX-7011A-CT is ideal for industrial settings, ensuring reliability in challenging conditions.

Applications:

From coffee machines to security systems, the SFTO430HX-7011A-CT finds its utility across various domains:

• Home automation
• Access control systems
• Monitoring equipment
• Analyzers
• Garden irrigation systems
• POS terminals
• Cash readers

Product Highlights:

• Optimal Viewing Experience: IPS full viewing angle ensures superior visibility from every angle, making it perfect for diverse applications.
• Exceptional Display Performance: Enjoy vivid colors, luminance, and intensity for an immersive viewing experience.
• Industrial Durability: With a wide operating temperature range, it’s built to withstand harsh industrial environments.
• Customizable Touch Screen Options: Choose between resistive touch screen or opt for a customized capacitive touch panel to suit specific requirements.
• Cost-Effective Solution: Offering high-quality features at a competitive price point.
• Easy Installation and Maintenance: Streamlined design for hassle-free setup and upkeep.

The resolution of a bitmap image determines its level of detail, reflecting the number of pixels it contains. Generally, higher resolution equates to sharper images and better print quality, albeit at the cost of increased file storage. Resolution is typically measured in units like DPI (dots per inch), LPI (lines per inch), and PPI (pixels per inch). However, only LPI directly represents optical resolution; DPI and PPI have distinct meanings and cannot be easily converted. While DPI and PPI are often confused, they pertain to different domains: pixels are relevant to digital displays, while dots are relevant to printing.

Take, for instance, Techstar’s SFTO430HX-7011A-CT, a 4.3″ TFT LCD boasting an 800 x 480 display resolution capable of vividly showcasing up to 16M colors. This display offers a comprehensive viewing experience with its wide viewing angle (85/85/85/85), 24-bit parallel RGB interface, vibrant LED backlighting, and the option for either resistive touch or capacitive touchscreen panels. With its capacity to reproduce an extensive color palette, users can ensure their brand colors are accurately represented. The SFTO430HX-7011A-CT Series from Techstar   elevate device interfaces through its vibrant colors, touchscreen functionality, and adjustable backlight brightness.

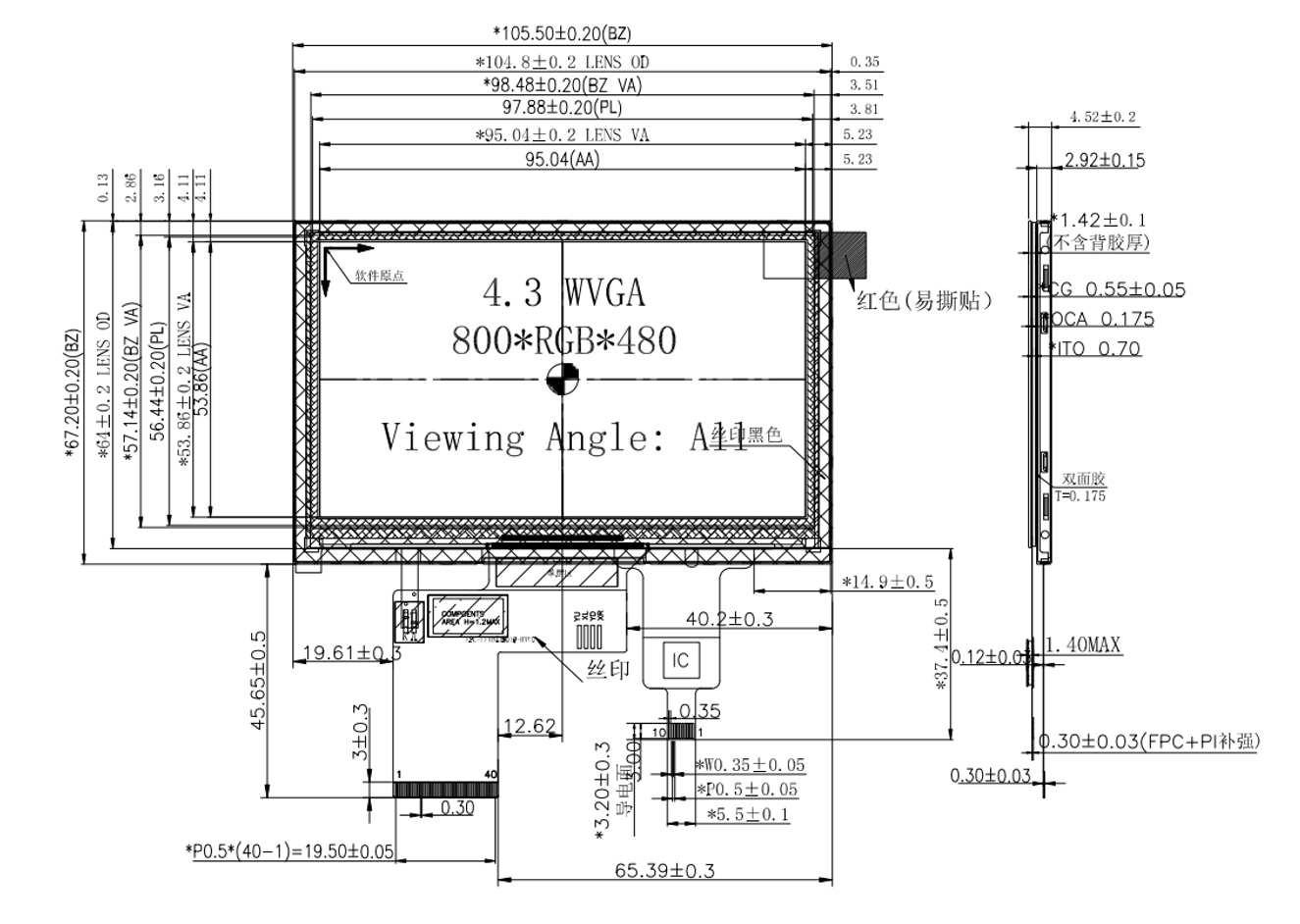

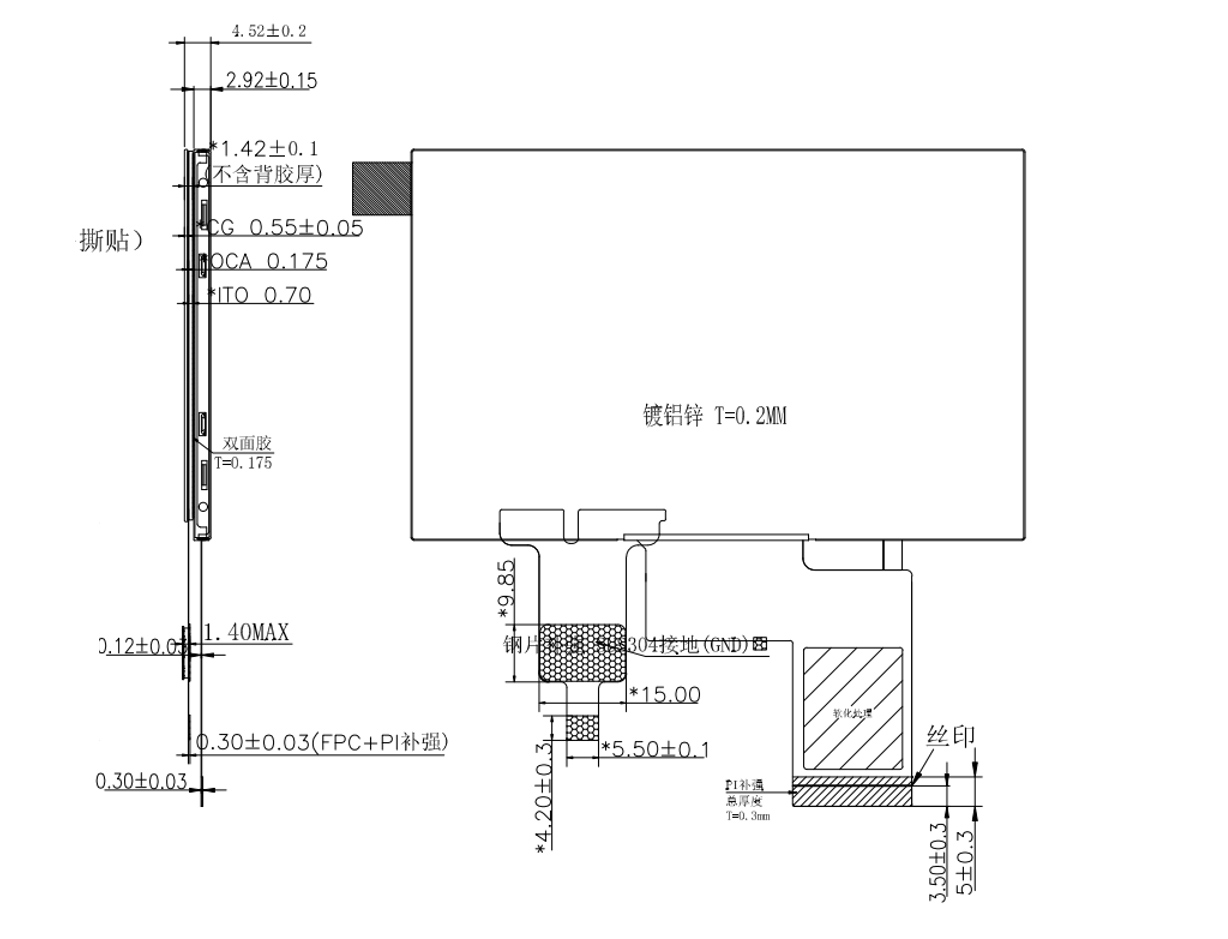

4.3 Inch TFT Monitor LCD 800(RGB)X480 ST7282 Drive IC IPS Product Drawing

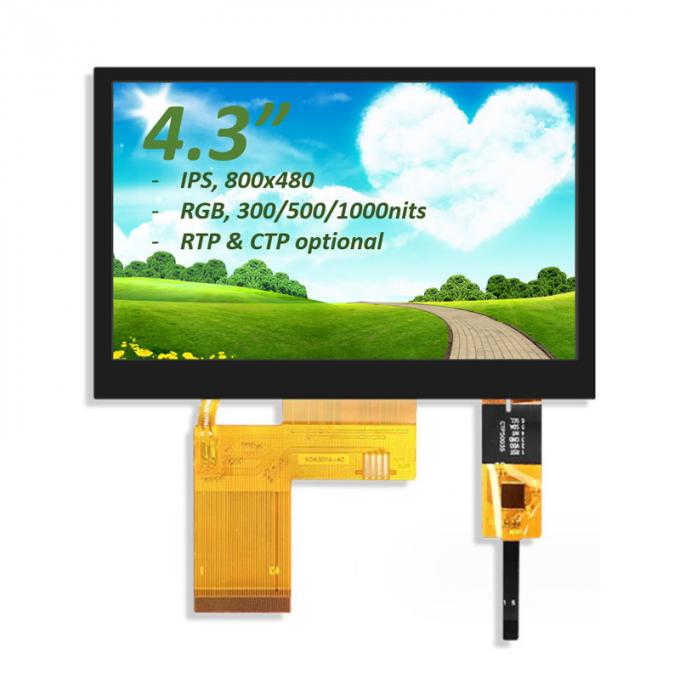

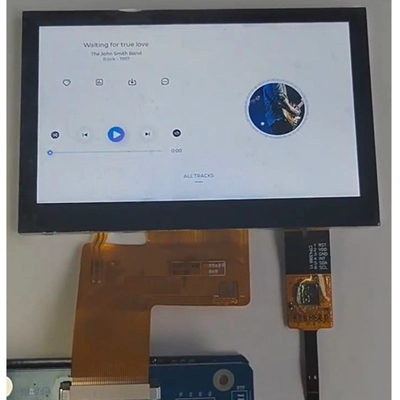

4.3 Inch TFT Monitor LCD 800(RGB)X480 ST7282 Drive IC IPS Product Image

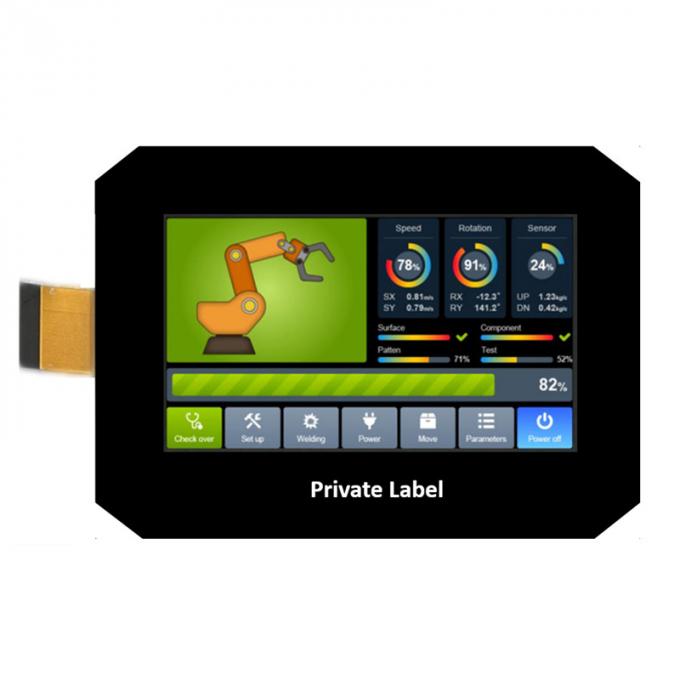

(Customized Touch Glass)
