ShenZhen Techstar Electronics Incorporated Co., Ltd SF-TC397H-8783A-T: A Dynamic 3.97″ Inch TFT LCD Touch Screen
The ShenZhen Techstar Electronics Incorporated Co., Ltd Tech SF-TC397H-8783A-T is a TFT LCD touch screen module boasting a diagonal size of 3.97 inches (4 inches) and a resolution of 480×800 pixels. Equipped with the ILI9806E IC, this module integrates controller and driver IC functions and supports an RGB interface. It operates within a supply voltage (Vdd) range of 2.6V to 3.3V and features a viewing direction of 12 o’clock with an aspect ratio of 4:3.
Designed for portrait mode, the SF-TC397H-8783A-T offers a brightness of 300 nits (typical value). Additionally, it is compatible with optional Resistive Touch Screen and Projected Capacitive Touch Screen functionalities. Operating temperatures range from -20℃ to +70℃, while storage temperatures span from -30℃ to +80℃. This versatile 3.97-inch (4-inch) TFT LCD module finds applications in various devices such as coffee machines, microwave ovens, scanners, home automation systems, access control systems, monitoring equipment, analyzers, security systems, garden irrigation systems, and more.
Product Advantages
- Excellent display performance of background color, luminance, viewing angle, and intensity, etc.
- Wide Temperature of Top of -20℃ to +70℃ for industrial applications.
- Stable Supply for continuous mass production of over 5 years. No EOL worry.
- Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well.
- FPC is customizable to have different interface, pin number and pin assignment, etc.
- Low-cost solution among the same kinds in the LCD industry.
- Easy to install and easy to maintain.
Application
Widely used in coffee machine, micro-wave oven, scanner, home automation, access control system, monitoring equipment, analyzers, security system, garden irrigation system, etc.
Customer Service
- Before signing an official contract with our customers we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
- Your inquiry related to our products or price will be replied in 24hrs.
- Keep informing our customer production process and help arrange quality checking in the factory if necessary.
- One-year warranty for our LCD display after delivery. All the defects can be returned and replaced within warranty period.
- Buyer can dispatch technician to our factory for free training before delivery.
- We’re focusing on creating values for customers. For essential technical or commercial support, we will arrange con-call meeting, online technical service, or at-site local help, etc to meet customer different needs.
Product Features
| Product: | 4″inch TFT LCD Touch Screen |
|---|---|
| Touch Screen: | Resistive Touch Panel (RTP) |
| Resolution: | 480×800 |
| Viewing Direction: | 12 O’clock |
| Driver IC: | ILI9806E |
| Pin Number: | 51 Pins |
| Connection: | Plugging |
| Interface: | RGB |
| Surface Luminance: | 300 Cd/m2 (nits) |
| LED Lifetime: | 40,000 Hours |
| Compliance: | REACH & RoHS Compliant |
| Operating Temp.: | -20℃ To +70℃ |
3.97 inch TFT LCD Display RGB Interface with Resistive Touchscreen Product Drawing
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1 | LEDK | O | LED Cathode |
| 2 | LEDA | O | LED Anode |
| 3 | YU | I | Touch Panel input signal |
| 4 | XL | I | Touch Panel input signal |
| 5 | YD | I | Touch Panel input signal |
| 6 | XR | I | Touch Panel input signal |
| 7 | GND | I | Ground |
| 8 | VCI | I | Power Supply 2.8V Voltage |
| 9 | NC | – | Set Open |
| 10 | IOVCC | I | Power Supply 1.8V Voltage |
| 11 | TE | I | Tearing effect output |
| 12 | SDO | – | SPI Interface Input/output Pin |
| 13 | SDI | I | SPI Interface Input/output Pin |
| 14 | WR/SCL | – | SPI Clock Signal |
| 15 | CSX | I | Input pin for chip selection signal |
| 16 | RESX | I | LCM Reset input signal |
| 17-40 | DB23-DB0 | I/O | Display Data I/O |
| 41 | ENABLE | I | Data enable signal in RGB I/F mode 1. |
| 42 | DOTCLK | I | Clock Signal to Sample each date |
| 43 | HSYNC | I | Horizontal Synchronizing Signal |
| 44 | VSYNC | I | Vertical Synchronizing Signal |
| 45 | LEDPWM | I | This pin is connect to the external LED driver. |
| 46 | LWDON | I | Used for turning On/Off external LED backlight control. |
| 47 | NC | – | Set Open |
| 48 | NC | – | Set Open |
| 49 | IM0 | I | Select the interface mode |
| 50 | IM1 | I | Select the interface mode |
| 51 | GND | I | Ground |

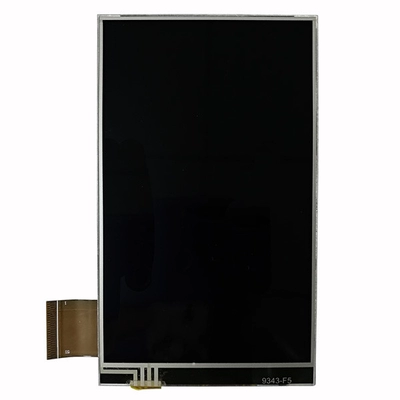

3.97 inch TFT LCD Display RGB Interface with Resistive Touchscreen Product Image
