ShenZhen Techstar Electronics Incorporated Co., LtdTech SF-TO400XC-8996A-N 4-inch Round TFT LCD Display
This automotive-grade circular TFT LCD display is ideal for car dashboards and other vehicle applications. Here’s a breakdown of its key features:
- Display: 4-inch diagonal, 720×720 pixel resolution for sharp visuals.
- Interface: MIPI for efficient data transfer.
- Power: Operates on 2.6V to 3.6V (typical 2.8V).
- Brightness: 500-1000 nits for excellent visibility even in sunlight.
- Touchscreen: Optional PCAP (Projected Capacitive Touch Screen) for interactive control.
- Temperature Range: -30°C to +85°C for reliability in harsh environments.
| Item of general information | Contents |
| LCD Display Size (Diagonal) | 4 inch Round TFT |
| Module Structure | TFT Display |
| LCD Display Type | TFT/TRANSMISSIVE |
| LCD Display Mode | Normally Black |
| Recommended Viewing Direction | IPS all viewing angles |
| Module size (W×H×T) | 105.3×109.61×2.3 mm |
| Active area (W×H) | 101.92 mm Diameter |
| Number of pixels (Resolution) | 720RGB×720 pixel |
| Module Interface Type | MIPI interface |
| Operating Temp. | -30℃ to +85℃ |
| Surface Luminance | 1000 cd/m2 |
| Color Numbers | 16.7M |
| Backlight Type | White LED |
4 inch Round TFT LCD, Circular TFT LCD 4″ Product Drawing

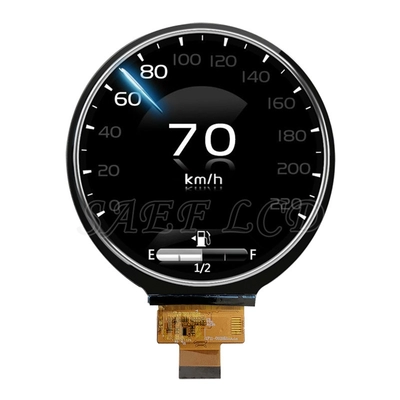

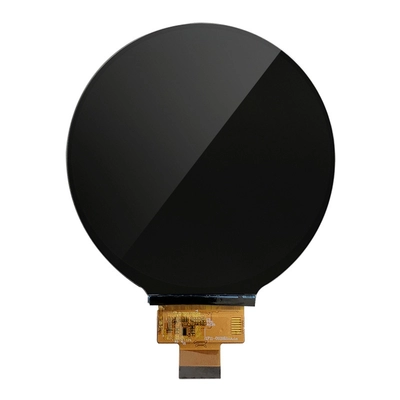

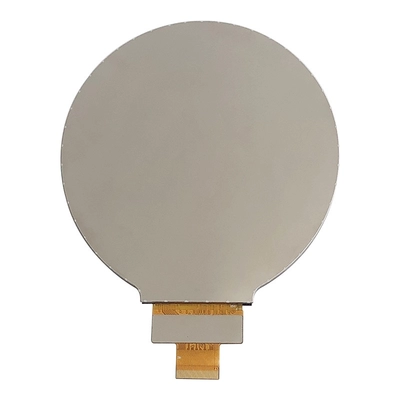

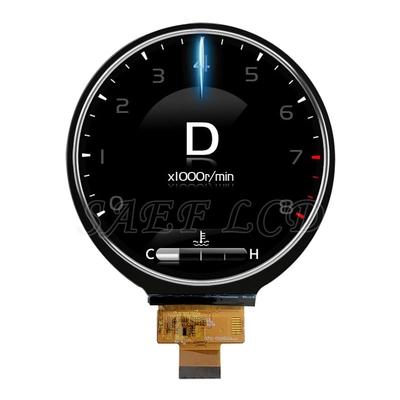

4 inch Round TFT LCD, Circular TFT LCD 4″ Product Image
