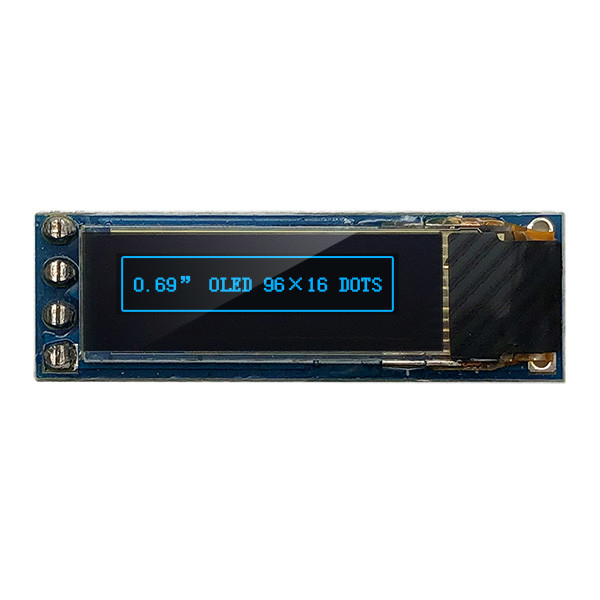

4 Pins 96×16 OLED Display Module 0.69 Inch I2C IIC SSD1306 3V/5V Compatible

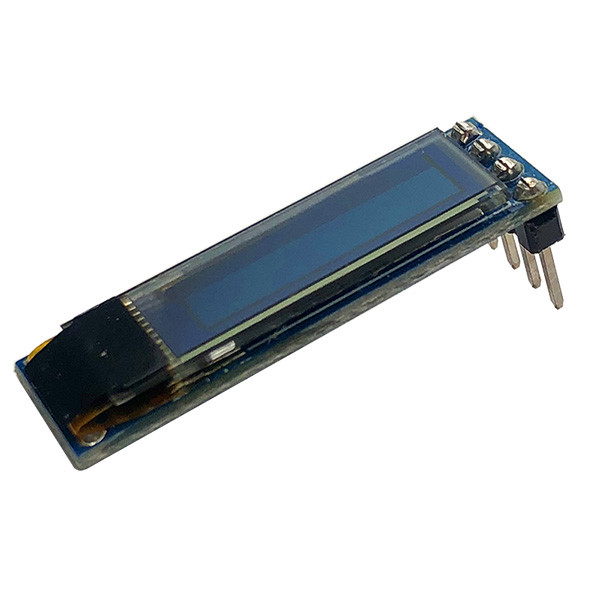

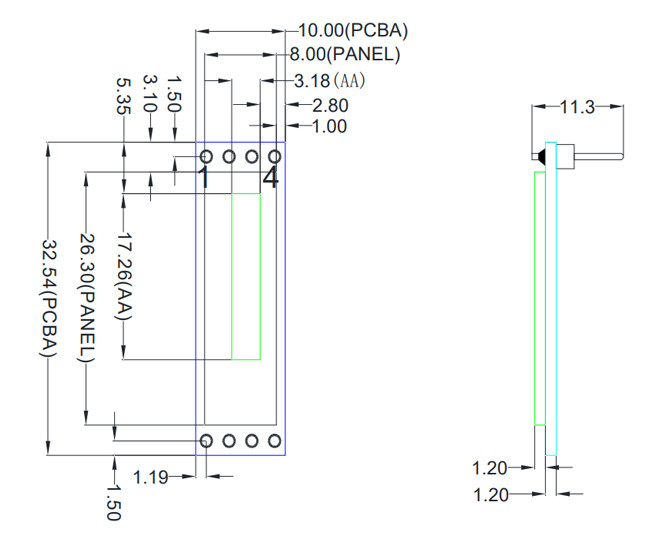

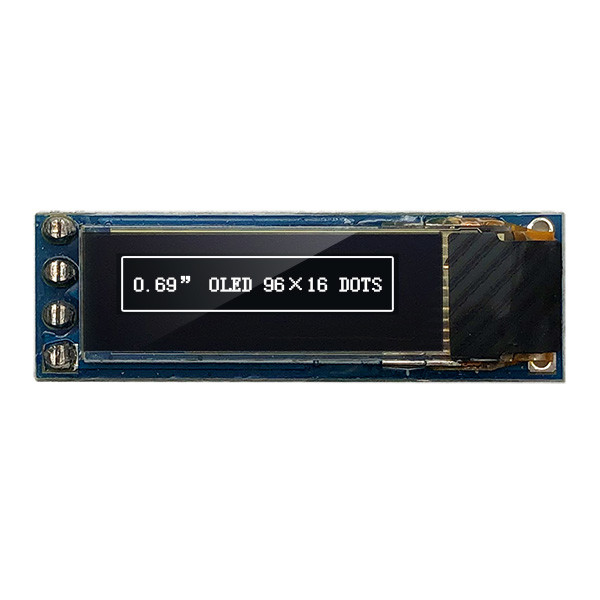

Unveiling the SFOM069YZ4-9616WB-01: A 0.69-inch OLED Module with a 96×16 resolution and a distinctive COG with PCB design. This module, housing the SSD1306 IC, boasts a 1/16 driving duty and supports the I2C interface. With a compact PCB outline measuring 32.54 × 10 mm, complete with on-board mounting holes and a configuration of 4×1 metal pins on the module, this OLED display brings a blend of sophistication and functionality. Key features include:

1. IIC serial communication interface, ensuring a hassle-free setup with only 2 signal lines connected to the power supply through a 4PIN line – simplicity at its core.
2. Dressed in a pristine white color, it provides a viewing angle exceeding 160 degrees, making it compatible with a range of platforms, including Arduino, 51 series, ESP, STIM32 / 2, and SCR chips.
3. Operating with remarkable efficiency, it consumes a mere 0.05W during normal operation. Supporting a voltage of 3.3V DC and functional across temperatures ranging from -40°C to 80°C, this OLED module stands out with its low power consumption and versatile performance.

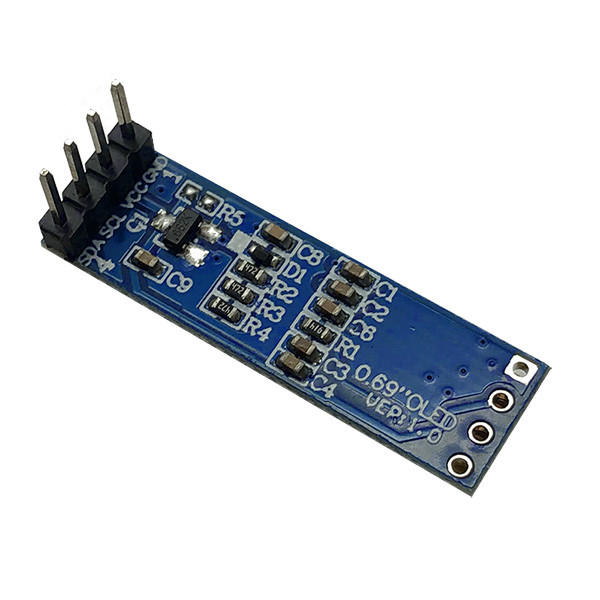

Decoding Pin Assignments

Pin 1: GND – Ground connection for the logic circuit. This pin serves as the foundation, requiring a secure connection to ground.

Pin 2: VCC – Power source for OLED. This pin functions as the vital link to the power supply, necessitating a connection to the power source.

Pin 3: SCL – Serial clock input for SCL.

Pin 4: SDA – Serial data input for SD.
