480×640 VGA TFT LCD Touch Screen Display 2.88 Inch With 2 Lane MIPI Interface

2.88-Inch 480×640 VGA TFT LCD With 2-Lane MIPI Interface, 21 Pins, for Medical Equipment Front Screens

Description of VGA 2.88-Inch LCD with MIPI TFT

The SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD SF-TO288AS-8983A-N TFT LCD display module is a transmissive-type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that utilizes amorphous silicon TFT as a switching device. This module consists of a TFT LCD module, a driver circuit, and a backlight unit. The resolution of the 2.88-inch display is 480 (RGB) x 640 dots (480 horizontal by 640 vertical pixels array), capable of displaying up to 16.7 million colors.

The SF-TO288AS-8983A-N supports a 2-lane interface. The supply voltage (VCC) for driving the LCD panel ranges from 2.4V to 3.3V, with a typical value of 2.8V. It is suitable for use in embedded systems, automation, medical equipment, industrial devices, and security equipment requiring a TFT display with high-quality, colorful images. The SF-TC300D-8974A-CT is an IPS-LCD type TFT with a brightness of 450 cd/m2 (typical value). The brightness can be customized to 1500 nits for applications that do not require high brightness. It can operate at temperatures ranging from -20°C to +70°C, with storage temperatures ranging from -30°C to +80°C.

Quality Management

Quality Policy

Our commitment:

• Ensuring impeccable quality while delivering goods punctually.
• Continuously improving to meet and exceed customer expectations.

Environmental, Health, and Safety (EHS) Policy

Our pledges:

• Strict adherence to all laws and regulations, prioritizing pollution prevention and control.
• Endeavoring to minimize emissions, conserve resources, and promote resource efficiency.
• Cultivating environmental consciousness and perpetually enhancing our surroundings.

Implemented Measures

We ensure:

• Transparency in our quality policies, fostering employee understanding through comprehensive training.
• Implementation of ‘5S’ management for a well-organized workplace and proficient staff.
• Comprehensive integration of the ISO9001 quality assurance system into all processes, ensuring meticulous management and control.
• Optimizing production costs while maintaining quality standards through efficient resource utilization and process improvement.

Frequently Asked Questions (FAQs)

Q1. Can I request a sample order?

A: Certainly! We encourage sample orders to verify quality. Mixed samples from different item numbers are also welcomed.

Q2. What is the lead time?

A: For off-the-shelf products, samples are available immediately. Sample remaking takes 1-1.5 weeks, while mass production requires 4-6 weeks. For design-in products, it involves a 2-3 day counter drawing proposal, 2 weeks for sample making upon drawing approval, and 5-6 weeks for trial-run/mass production after sample approval.

Q3. Is there a minimum order quantity (MOQ) for samples and production?

A: We offer low MOQ. Sample checking requires only 3-5 pieces, while mass production typically starts at 1K/lot. We support quantities lower than the standard MOQ for trial-run/PP-run orders.

Q4. What are the shipping options and delivery times?

A: We ship via DHL, UPS, FedEx, or TNT, with delivery times ranging from 5-7 days. Airline and sea shipping are also available upon request.

Q5. How do I place an order for an LCD module?

A: Simply inform us of your requirements or application. We will provide a quotation based on your specifications or our recommendations. Upon sample confirmation and deposit payment, we’ll proceed with production.

Q6. Can I customize the LCD product with my logo?

A: Absolutely! Kindly inform us during the design stage, and we’ll produce samples featuring your logo for your approval. Once the samples are confirmed, mass production will commence accordingly.

Q7: Do you provide a product warranty?

A: Yes, we offer a 1-year warranty on all our products.

Q8: How do you handle faulty products?

A: Our products undergo stringent quality control, ensuring a defect rate of less than 0.2%. During the warranty period, we’ll replace defective units with new ones. For batch defects, we offer repair services or explore other solutions based on the specific circumstances.

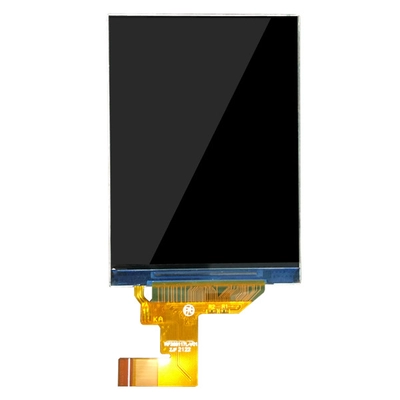

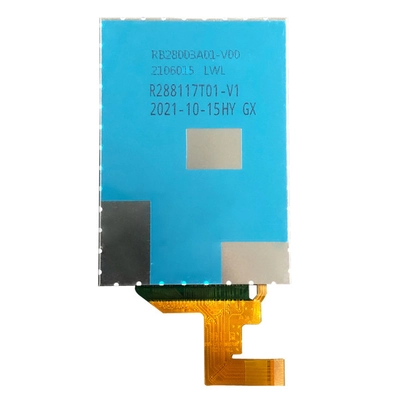

VGA 2.88″ LCD, 2.88 inch MIPI TFT LCD Real  Product Image
