Description
TFT LCD display module 4.3″ 480×854 IPS NT35512 MIPI interface with CTP PCAP 4.3 inch Portrait IPS 480×854 dots TFT Touch Screen
The SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD SF-TC430H-8579A-CT is a TFT LCD display module with a 4.3-inch diagonal size and IPS type panel, offering a resolution of 480×854 pixels. This display ensures clear viewing from all angles and comes with a PCAP touch screen with OCA attached. The touch screen utilizes a G+G structure and is driven by the GT9137 touch driver. The SF-TC430H-8579A-CT supports MIPI interface for the display, while the touch screen operates on IIC interface.
Product Features
| Product: | 4.3 Inch TFT Touch Screen |
|---|---|
| Resolution: | 480×854 |
| Touch Screen: | Capacitive Touch Panel (CTP) |
| Viewing Direction: | IPS Full Viewing Angle |
| Driver IC: | NT35512 |
| Pin Number: | 24 Pins |
| Connection: | ZIF |
| Surface Luminance: | 250 Cd/m2 (nits) |
| Interface: | MIPI |
| LED Lifetime: | 40,000 Hours |
| CTP Driver IC:: | GT9137 |
| Compliance: | REACH & RoHS Compliant |

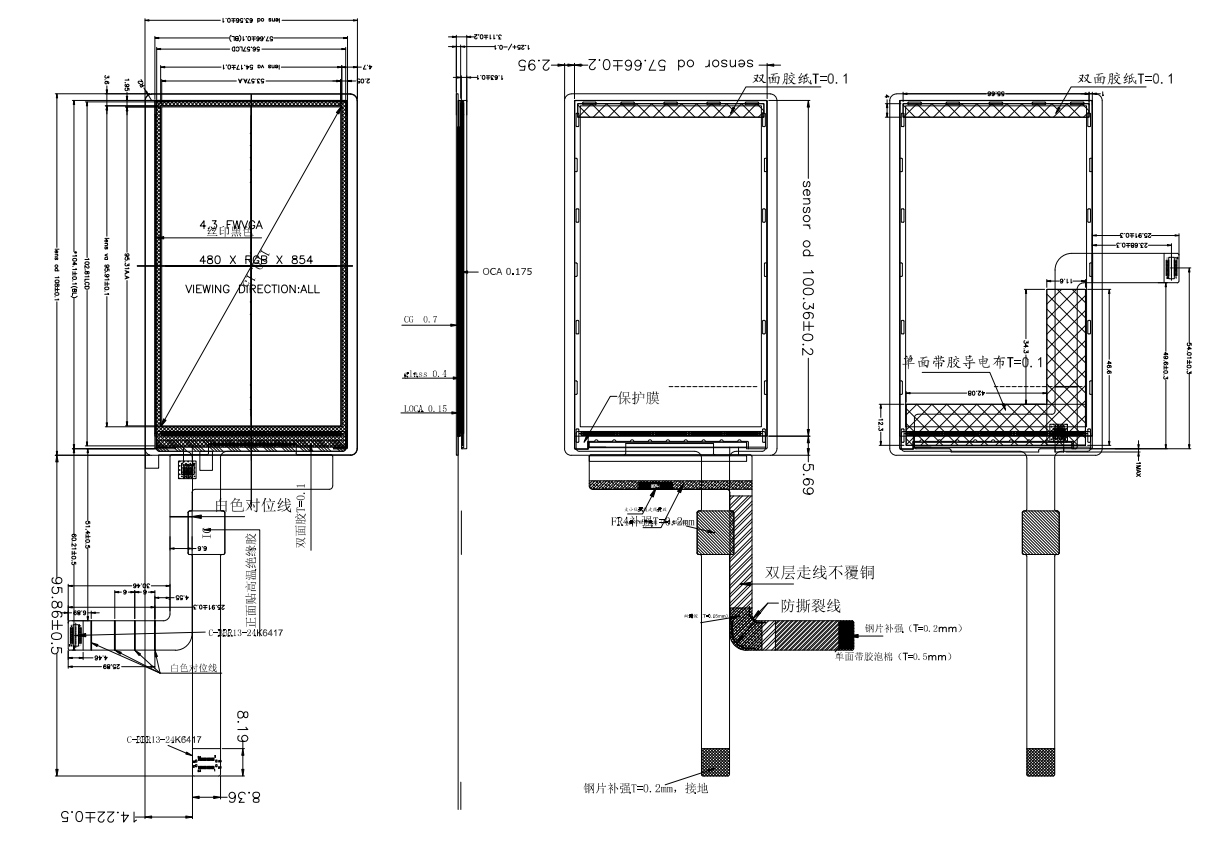

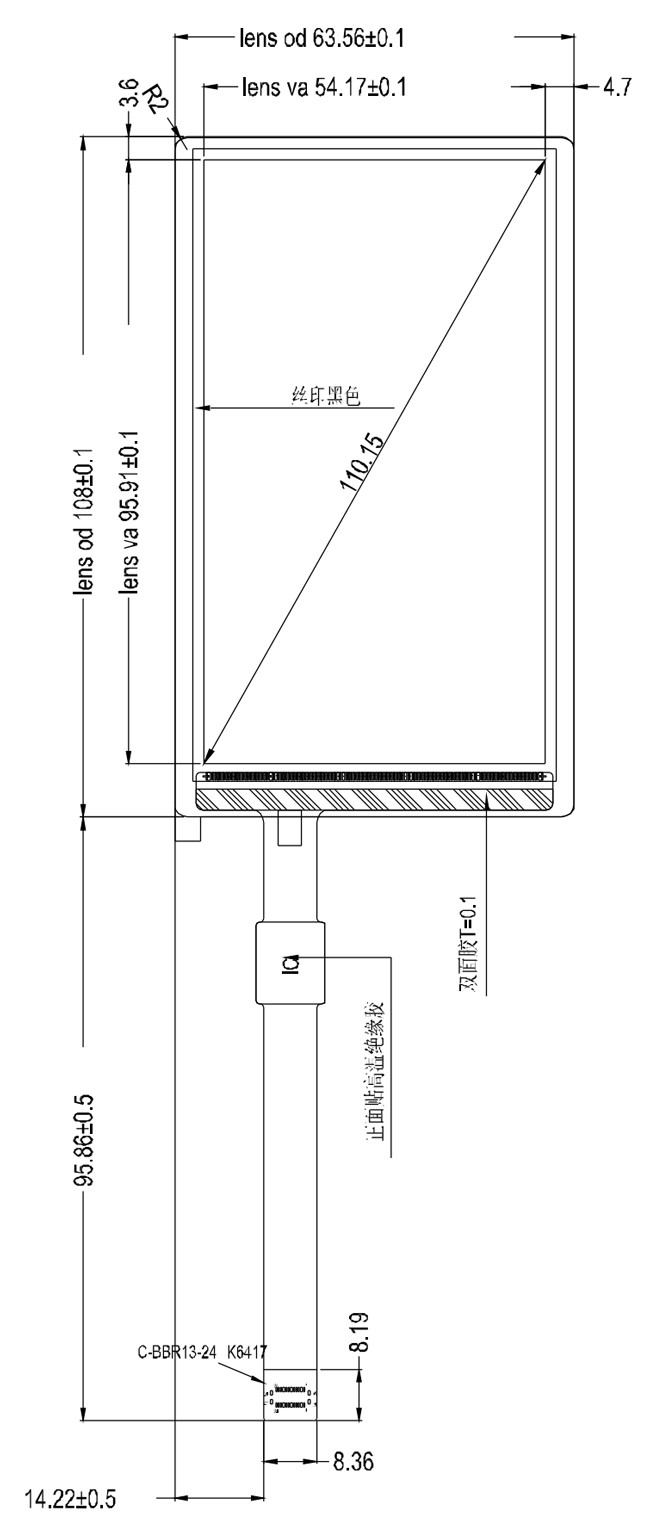

4.3 inch Portrait IPS 480×854 dots TFT Touch Screen Drawing
Interface Pin definition
| NO. | PIN NAME | I/O | Description |
| 1 | MIPI_TCN | I | DSI-CLK- clock signals |
| 2 | MIPI_TCP | I | DSI-CLK+Â clock signals |
| 3 | GND | I | Ground |
| 4 | MIPI_TDN0 | I | DSI-D0- data signals |
| 5 | MIPI_TDP0 | I | DSI-D0+ data signals |
| 6 | GND | I | Ground |
| 7 | MIPI_TDP1 | I | DSI-D1+ data signals |
| 8 | MIPI_TDN1 | I | DSI-D1- data signals |
| 9 | GND | I | Ground |
| 10 | NC | – | – |
| 11 | NC | – | – |
| 12 | GND | I | Ground |
| 13 | NC | – | – |
| 14 | NC | – | – |
| 15 | GND | I | Ground |
| 16 | VDD18_PMU | I | Power Supply 1.8V-2.8V |
| 17 | NC | – | – |
| 18 | LRSTB | I | Register select pin |
| 19 | NC | – | – |
| 20 | LPTE | I | Tearing effect output |
| 21 | VDD28_PMU | I | Power Supply 2.8V |
| 22 | GND | I | Ground |
| 23 | VLED_P | O | LED Anode |
| 24 | VLED_N | O | LED Cathode |
Maximum Absolute Limit
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | Â Â Â Â Â Â Â Â 1.6~3.3 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -20 to 70 | °C |
| Storage temperature | Tstg | -30 to 80 | °C |
| Â |
DC Characteristics (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test Condition |
| Operating voltage | VDD | 2.6 | 2.8 | 3.3 | V | – |
| Supply current | IDD | – | – | 5 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | – | VDD | V | – |
| VIL | 0 | – | 0.2VDD | V | ||
| Input leakage current | IIL | -1.0 | – | 1.0 | mA | VIN=VDD or VSS |

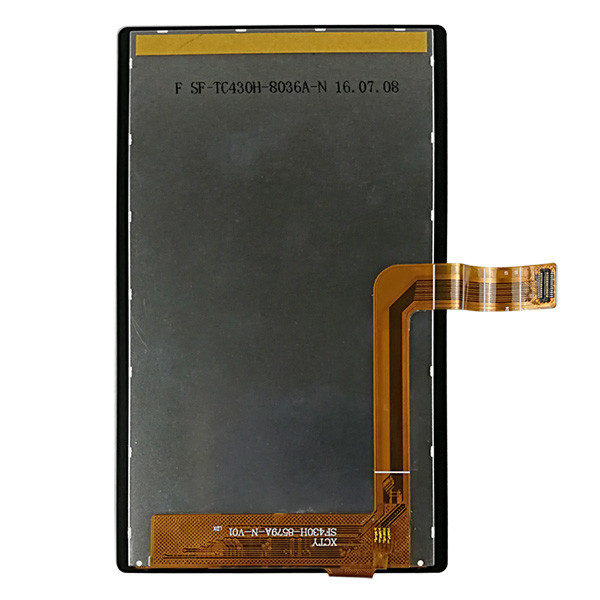

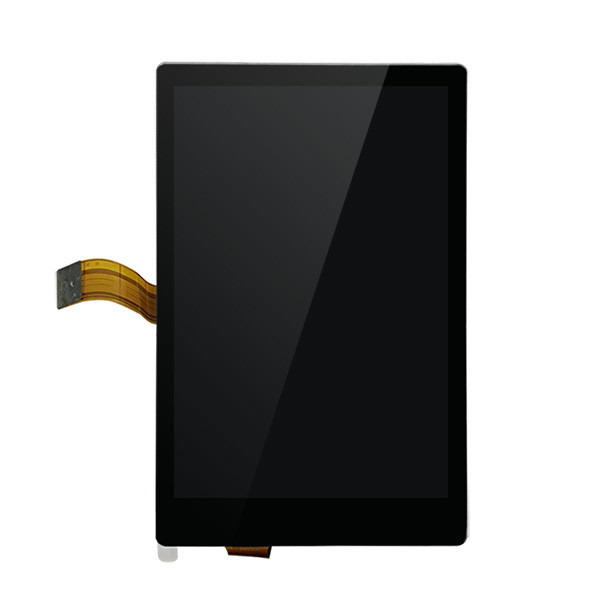

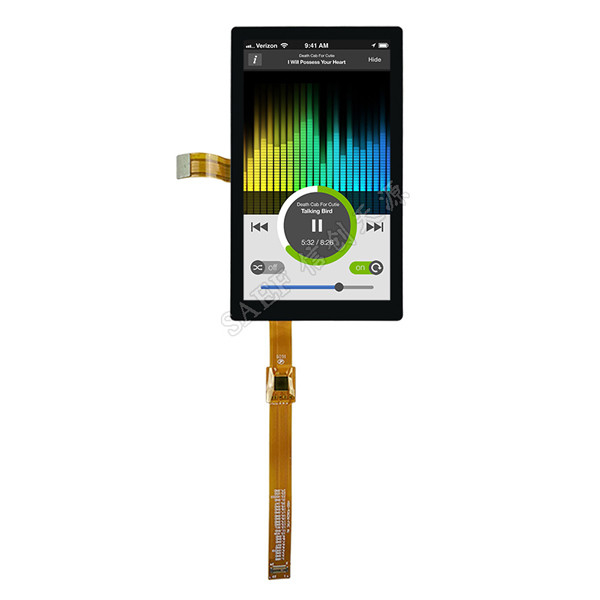

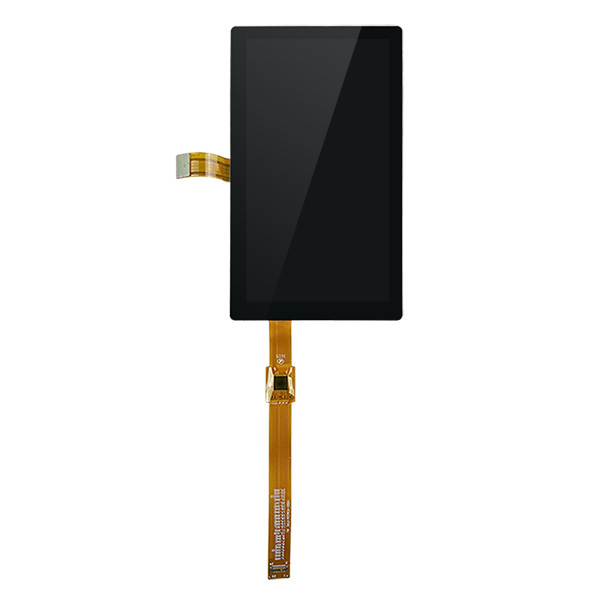

4.3 inch Portrait IPS 480×854 dots TFT Touch Screen Product Image
