Description
5.7″ Inch FHD Landscape TFT LCD Touch Screen LVDS Interface 60 Pin Display
SAEF TECHNOLOGY SF-TO570I-8968A-N is a 5.7 inch full TFT-LCD display with FHD 1920×1080 resolution (1920 horizontal by 1080 vertical pixels array). This model supports LVDS interface; the supply voltage (VCC) of driving LCD panel is from is 2.8V to 3.6V. Typical value is 3.3V. It can be used in embedded systems, automation, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image.
SF-TO570I-8968A-N is a IPS-LCD type TFT with brightness 1000 cd/m2 (typical value). the brightness can be reduced to 300 nits for some application does not need high brightness. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
Product Features
| Item of general information | Contents |
| LCD Display Size (Diagonal) | 5.7 inch IPS |
| Module Structure | TFT Display |
| LCD Display Type | TFT/TRANSMISSIVE |
| LCD Display Mode | Normally Black |
| Recommended Viewing Direction | IPS all viewing angles |
| Module size (W×H×T) | 134×84.5×4.0 mm |
| Active area (W×H) | 126.2×70.99 mm |
| Number of pixels (Resolution) | 1920RGB×1080 pixel |
| Pixel pitch (W×H) | 0.135×0.135 mm |
| Module Interface Type | LVDS interface |
| Driver IC | HX8239-A01 |
| Color Numbers | 16.7M |
| Backlight Type | White LED |
Why Choose us
1. We provide LCD Display custom solution
Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.
2. Total solutions for Touch screen and display
Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.
3. Commitment to quality reliability
SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.
4. Long-term supply
Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.
LVDS 5.7 inch TFT, 5.7″ FHD LCD Product Drawing

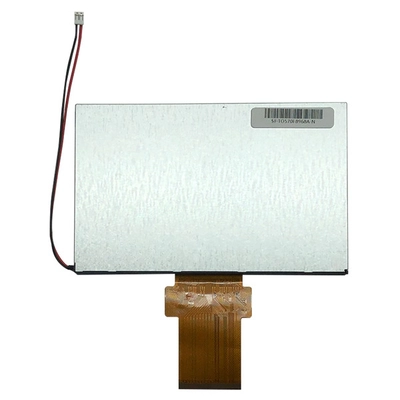

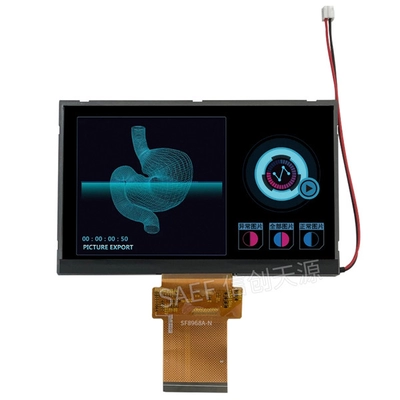

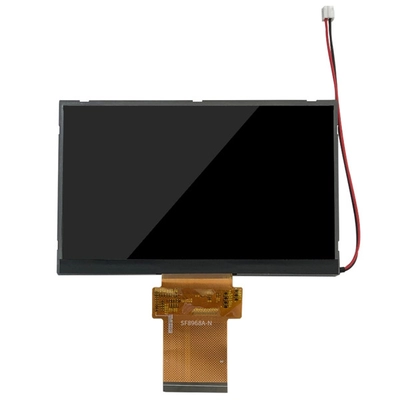

LVDS 5.7 inch TFT, 5.7″ FHD LCD Product Image
