Description
Introducing the SFHD500H09-800480A-CT: A 5-inch Raspberry Pi Compatible HDMI TFT Touchscreen Display with 800×480 IPS Resolution
SFHD500H09-800480A-CT represents the pinnacle of convenience and functionality, offering a seamless integration of TFT LCD, PCAP touch technology, and driving board in one compact module.
This 5-inch TFT display stands out as the perfect companion for your Raspberry Pi setup. Leveraging the native DSI connector on the Raspberry Pi, this display effortlessly connects, providing not only display information but also power, and complete compatibility with the capacitive touchscreen functionality. With this setup, all of Raspberry Pi’s GPIOs remain readily available for connecting to various peripherals*, ensuring optimal flexibility.
Moreover, unlike many Raspberry Pi displays in the market, our SFHD500H09-800480A-CT requires no modifications to the config.txt file on your Raspberry Pi before powering up*, simplifying the setup process significantly.
Key Features:
5-inch full-color TFT Display with 500 nits brightness
Capacitive touchscreen for intuitive interaction
Supports RGB interface signal output
Multilingual OSD support (Chinese/English)
Single 15-pin connector for display, capacitive touch, and power, minimizing clutter
Utilizes native DSI on the Raspberry Pi, preserving GPIO availability
Pre-configured file for hassle-free setup
Supports I2C to USB Capacitive single touch and multi-touch functions
Compatibility with HDMI signal sources such as Windows, Raspberry Pi, ATK, STB, DVD
DC-5V USB-5V2A input for power supply
Customizable audio support upon request
Motherboard software supports seamless online updates, ensuring continued functionality and performance enhancements.
| Product: | HDMI TFT Display 5 Inch |
|---|---|
| Touch Screen: | CTP( Capacitive Touch Screen) |
| Resolution: | 800*480 Dots |
| Cover Glass Dimension: | Customizable |
| Viewing Direction: | IPS All Viewing Angles (85/85/85/85) |
| Interface: | IIC To USB |
| Surface Luminance: | 300 Cd/m2 – 1000 Cd/m2 |
| LED Lifetime: | 40,000 Hours |

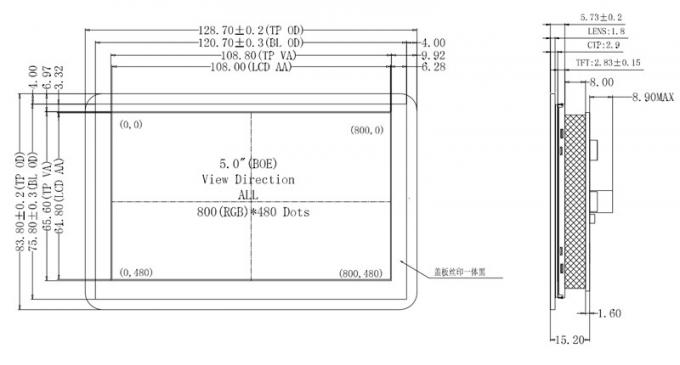

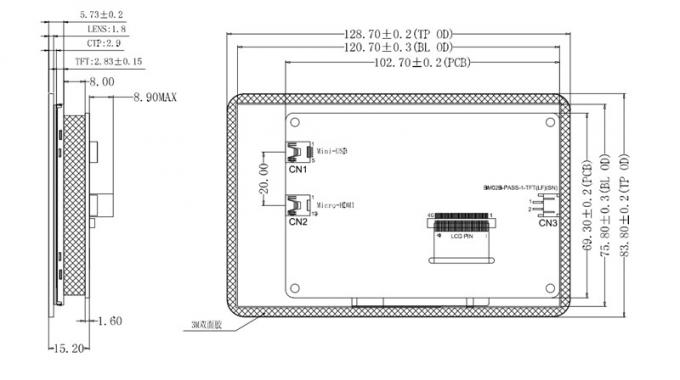

5″ Raspberry Pi Compatible HDMI TFT Touchscreen Display 800×480 IPS Product Drawing
Reliability Test
| Item | Condition | Time (hrs) | Assessment |
| High temp. Storage | 80°C | 120 |
No abnormalities in functions and appearance |
| High temp. Operating
|
70°C | 120 | |
| Low temp. Storage | -30°C | 120 | |
| Low temp. Operating | -20°C | 120 | |
| Humidity | 60°C/ 90%RH | 120 | |
| Thermal Shock Temp. Cycle | -20°C ¬ 25°C ®70°C
(0.5 hour ¬ 5 min ® 0.5 hour) |
10cycles | |

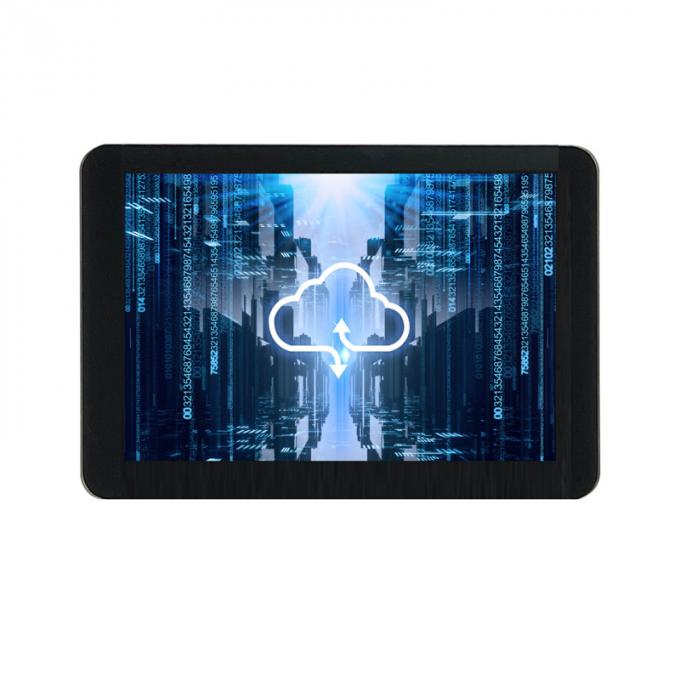

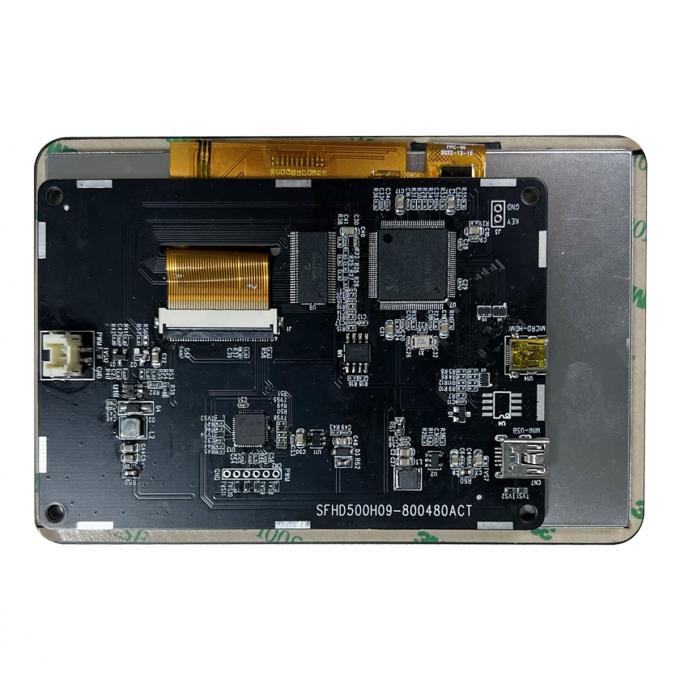

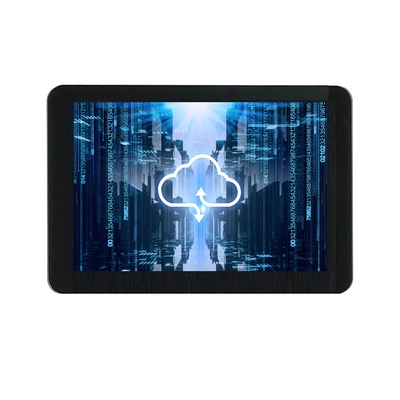

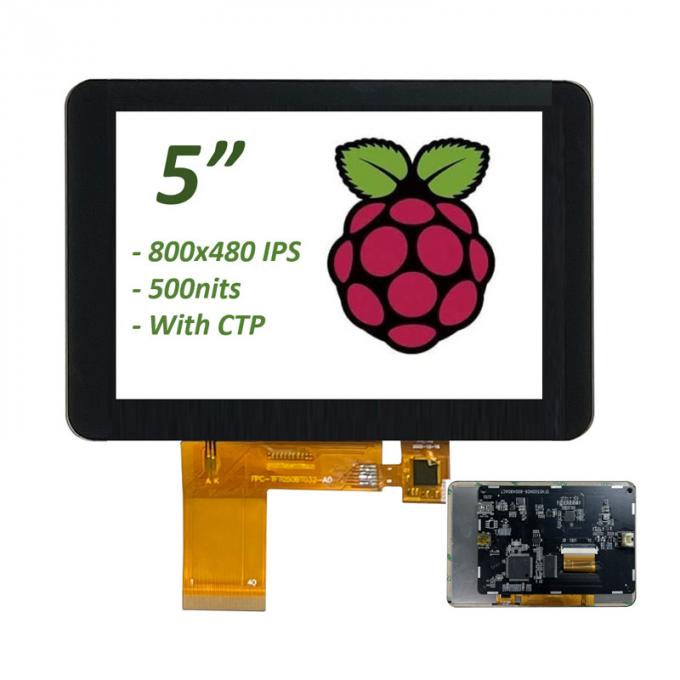

5″ Raspberry Pi Compatible HDMI TFT Touchscreen Display 800×480 IPS Product Image
