Revolutionize Your Display Experience with the 7-Inch 800×480 TN TFT Display Screen
Product Quick Insights:
- Model No. SF-TC700B–8792A-T
- Size: 7 inch
- Resolution: 800×480 dots
- View Direction: 6H
- Interface: RGB
- Control-Board: No
- Brightness(cd/m²): 300 (500nits or 1000nits optional)
- Touch Screen: Resistive Touch Panel (RTP)
Description:
Unlock the realm of vibrant visuals with our cutting-edge 7-inch TFT display screen, the SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD  SF-TC700B–8792A-T. Boasting a resolution of WVGA 800×480 dots, this display module promises to elevate your viewing experience to new heights. Whether you’re delving into embedded systems, automation, GPS navigation, or medical equipment, our TFT display delivers stunning, high-quality images with rich colors.
Designed for seamless integration, our display module is effortlessly controlled by a range of MCUs, including 8051, PIC, AVR, ARDUINO, and ARM, ensuring compatibility with various platforms. From industrial devices to security equipment, experience versatility across diverse applications.
Operating flawlessly within a temperature range of -20℃ to +70℃, with storage capabilities spanning from -30℃ to +80℃, our SF-TC700B–8792A-T module thrives in even the most demanding environments. Plus, with a surface brightness of 300 cd/m2 (typical value), immerse yourself in crystal-clear visuals.
Looking for enhanced brightness? Customize your experience with our adjustable backlighting, offering a luminance of up to 1000 cd/m2. Experience unparalleled compatibility with the SF-TC700B–8792A-T, fully compatible with the Winstar WF70GTIAGDNT0 model. Elevate your display game today!
Product Features:
| Product: | 7 Inch TFT Display |
|---|---|
| Resolution: | 800×480 Pixels |
| Pin Number: | 50 Pins (Customizable) |
| Interface: | RGB Interface |
| Outline Dim.: | 165x100x5.7 mm (Only TFT Screen) |
| Outline Dimension: | 165x100x6.8 Mm (With RTP) |
| Viewing Direction: | 6 O’clock |
| Touch Screen: | With Resistive Touch Screen |
| Connection: | Plugging (Can Be Customized) |
| Surface Luminance: | 300 Cd/m2 (Customizable) |
| Operating Temp.: | -20℃ To +70℃ |
| Compliance: | REACH & RoHS Compliant |

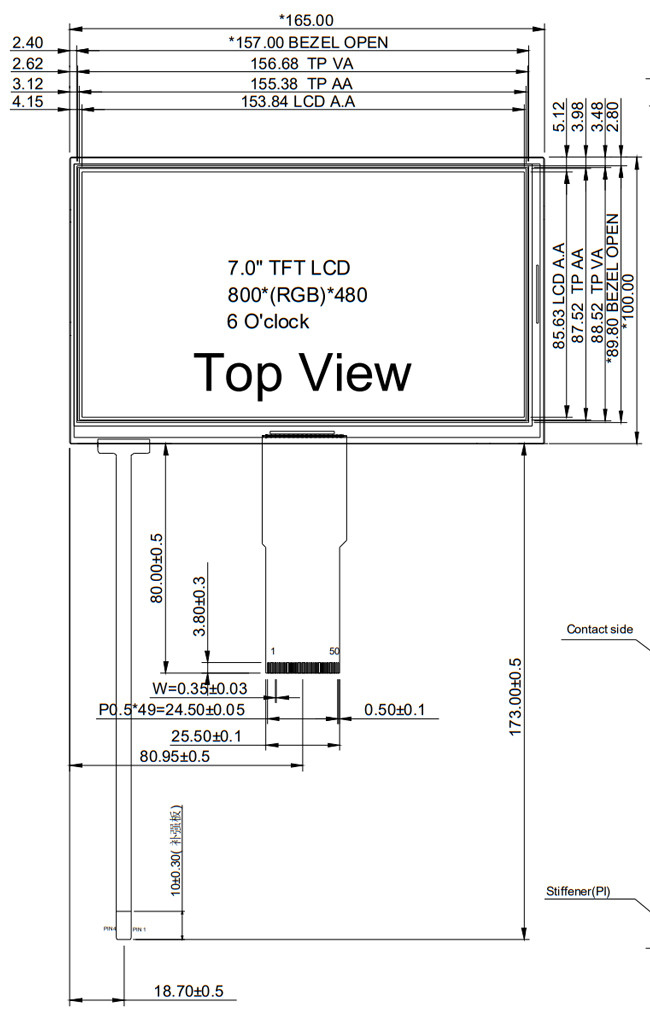

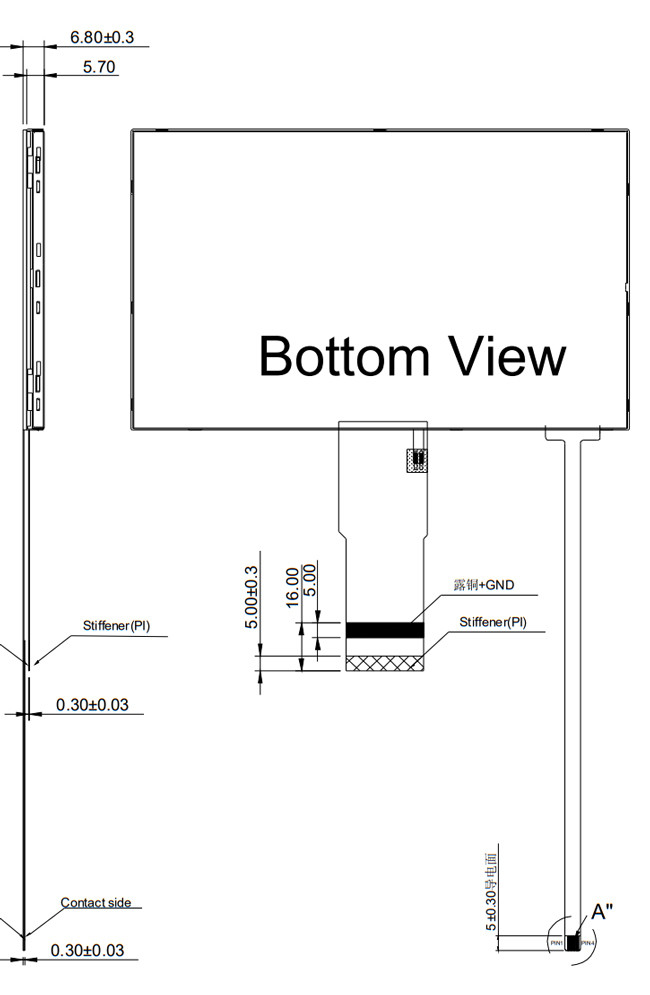

Resistive Touchscreen 7 inch TFT LCD, 7″ RGB TFT Display Product Drawing

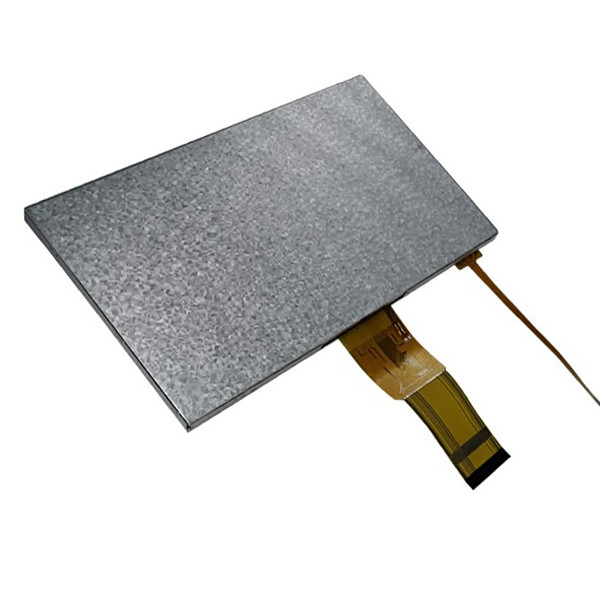

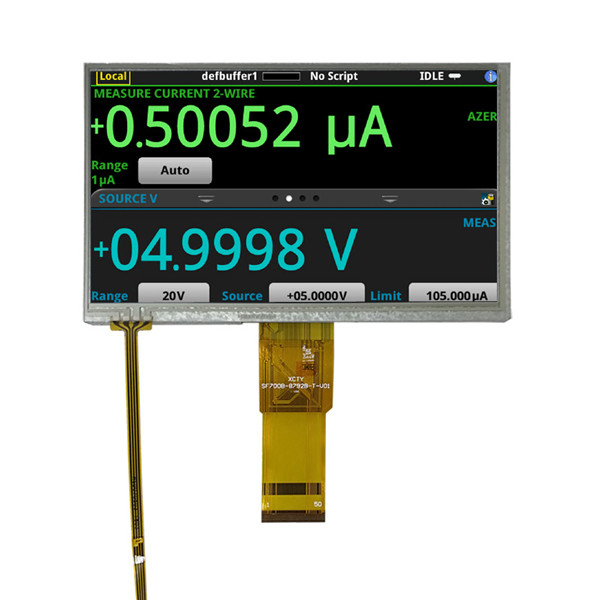

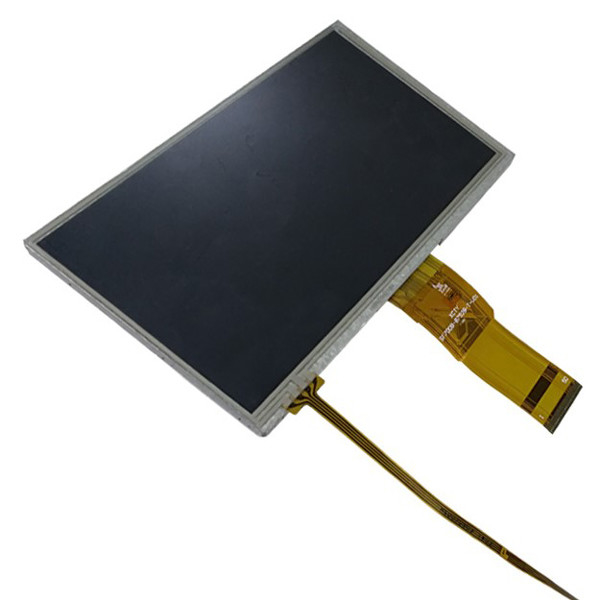

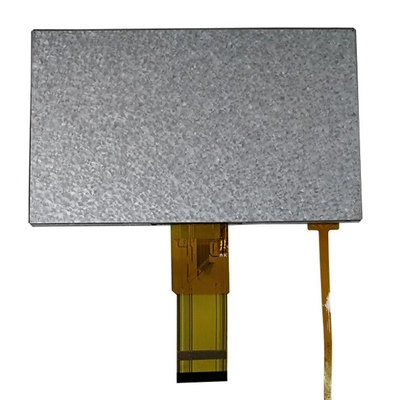

Resistive Touchscreen 7 inch TFT LCD, 7″ RGB TFT Display Product Image
