Description
Operational Excellence: The SFTO700XC-7052AN operates at a power voltage of 3.3V, with Vdd ranging from 3.0V to 3.6V, ensuring efficient and reliable power management. Its design incorporates a capacitive touch panel, offering an interactive experience. Notably, it provides optional IIC and USB interfaces, adding versatility to its functionality.
Brilliance Beyond Limits: With a luminance of 300cd/m2, the TFT screen SFTO700XC-7052AN illuminates with brilliance, meeting high-quality standards. Its robustness and durability make it an ideal choice for various industrial and medical applications. From POS terminals and HMI solutions to home automation and security systems, this industrial-grade display stands out.
Innovation in Every Pixel: Experience innovation with the SFTO700XC-7052AN TFT LCD module, where every pixel tells a story of precision and excellence. Elevate your visual experience across diverse applications, setting new standards in display technology.
This 7-inch TFT display is a color active matrix TFT LCD that uses an amorphous silicon TFT (thin film transistor) as an active switching device.

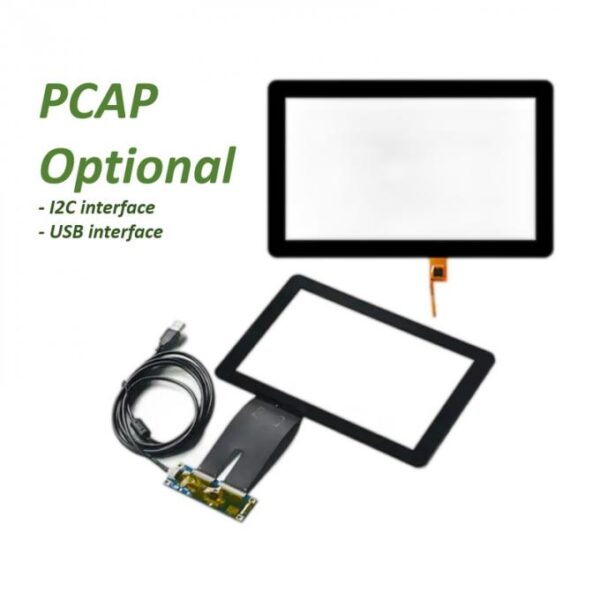

This PCAP TFT LCD 7-inch display features a capacitive touchscreen design with cover glass that can be customized according to customer requirements.
The color gamut typical of this 7-inch TFT screen is 50% Min.45%.
This 7-inch LCD TFT has a typical response time of 30 ms and a maximum of 35 ms.
This 7-inch 1024×600 TFT LCD display has a contrast ratio of Typ:1000 Min:800.
This 7-inch LVDS TFT monitor can operate in a wide temperature range from -20 degrees to +70 degrees.
This IPS TFT LCD 7 inch is a green and environmentally friendly product, RoHS & Halogen free.
This 7 inch capacitive touch monitor has Low driving voltage and low power consumption.
General Specifications
|
Feature |
Spec | |
|
Characteristics |
Size | 7.0Â inch |
| Resolution | 1024(Horizontal)*600(Vertical) | |
| Interface | LVDS | |
| Connect type | Connector | |
| Color Depth | 262K | |
| Technology type | a-Si | |
| Display Spec.    Pixel pitch (mm) | 0.05 x 0.15 | |
| Pixel Configuration | R.G.B. Vertical Stripe | |
| Display Mode | Normally Black | |
| Driver IC | – | |
| Surface Treatment | HC | |
| Viewing Direction | ALL | |
|
Mechanical |
LCM (W x H x D) (mm) | 164.9*100*2.8 |
| Active Area(mm) | 154.21 x 85.92 | |
| With /Without TSP | Without | |
| Weight (g) | TBD | |
| LEDÂ Numbers | 27LEDs | |

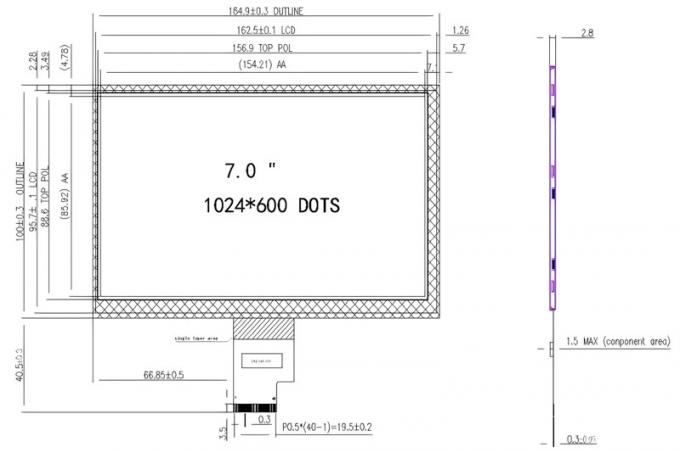

7 Inch LVDS TFT 40 Pin 1024×600 Pixel Product Drawing
Interface Pin Definition
| No. | Symbol | Description |
| 1 | VCOM | Common Voltage |
| 2 | VDD | Power Voltage for digital circuit |
| 3 | VDD | Power Voltage for digital circuit |
| 4 | NC | No connection |
| 5 | RESET | Global reset pin |
|
6 |
STBYB |
Standby mode Normally pulled high
STBYB=1,normal operation STBYB=0,timing contrller,source Driver will turn off,all output are High-Z |
| 7 | GND | Ground |
| 8 | RXIN0- | -LVDS differential data input |
| 9 | RXIN0+ | +LVDS differential data input |
| 10 | GND | Ground |
| 11 | RXIN1- | -LVDS differential data input |
| 12 | RXIN1+ | +LVDS differential data input |
| 13 | GND | Ground |
| 14 | RXIN2- | -LVDS differential data input |
| 15 | RXIN2+ | +LVDS differential data input |
| 16 | GND | Ground |
| 17 | RXCLKIN- | -LVDS differential clock input |
| 18 | RXCLKIN+ | +LVDS differential clock input |
| 19 | GND | Ground |
| 20 | RXIN3- | -LVDS differential data input |
| 21 | RXIN3+ | -LVDS differential data input |
| 22 | GND | Ground |
| 23 | NC | No connection |
| 24 | NC | No connection |
| 25 | GND | Ground |
| 26 | NC | No connection |
| 27 | DIMO | Backlight CABC controller signal output |
| 28 | SELB | 6bit/8bit mode select |
| 29 | AVDD | Power for Analog Circuit |
| 30 | GND | Ground |
| 31 | LED- | LEDÂ Cathode |
| 32 | LED- | LEDÂ Cathode |
| 33 | L/R | Horizontal inversion |
| 34 | U/D | Vertical inversion |
| 35 | VGL | Gate oFF Voltage |
| 36 | CABCEN1 | CABCÂ H/W enable |
| 37 | CABCEN0 | CABCÂ H/W enable |
| 38 | VGH | Gate ON Voltage |
| 39 | LED+ | LED Anode |
| 40 | LED+ | LED Anode |
TFT LCD Electrical Characteristics
| Item | Symbol | MIN | MAX | Unit | Remark |
|
Power voltage |
VDD | -0.3 | 5.0 | V | Note 2 |
| AVDD | 6.5 | 13.5 | V | ||
| VGH | -0.3 | 40 | V | ||
| VGL | -20 | 0.3 | V | ||
| VGH-VGL | – | 40 | V | ||
| Operating Temperature | TOPR | -20 | 70 | ℃ | |
| Storage Temperature | TSTG | -30 | 80 | ℃ | |
Optical Characteristics
| Items | Symbol | Condition | Min. | Typ. | Max. | Unit | Remark |
|
Viewing angles |
θT |
Center CR≥10 |
70 | 85 | – |
Degree. |
Note2 |
| θB | 70 | 85 | – | ||||
| θL | 70 | 85 | – | ||||
| θR | 70 | 85 | – | ||||
| Contrast Ratio | CR | Θ =0 | 500 | 700 | – | – | |
| Response Time | TON | 25°C | – | 10 | 20 | ms | Note1,
Note4 |
| TOFF | – | 15 | 30 | ||||
| Uniformity | U | – | 70 | – | % | ||
| Luminance | L | 300 | 350 | ||||

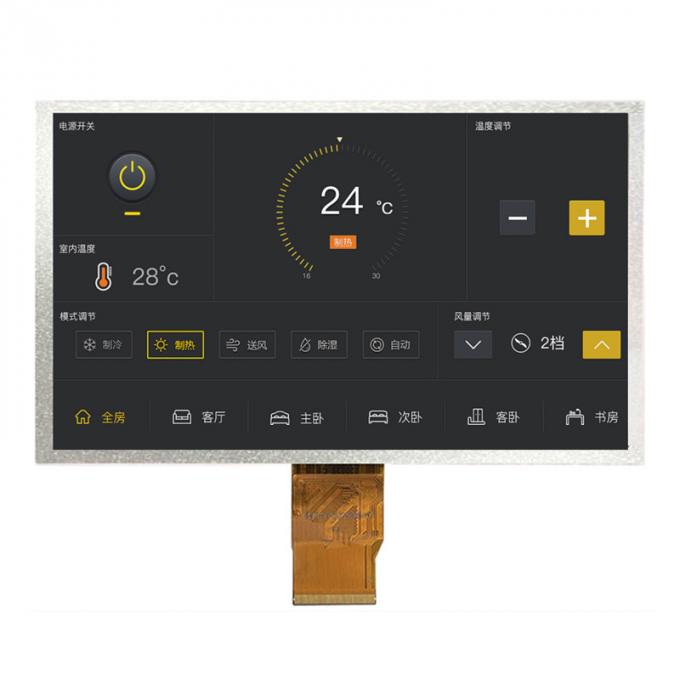

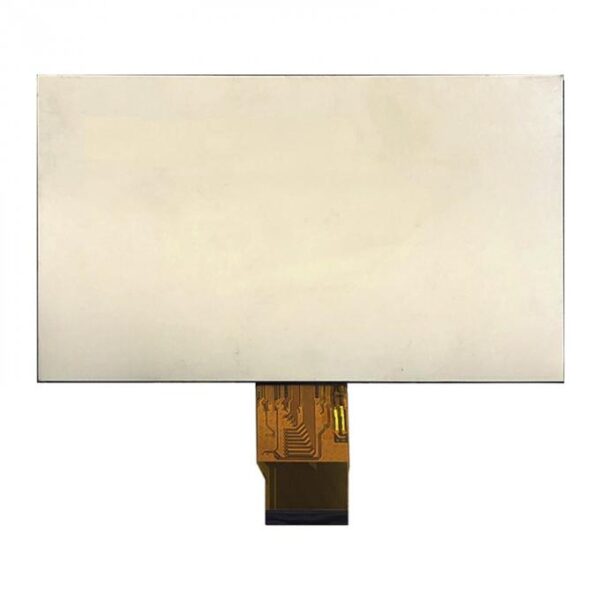

7 Inch LVDS TFT 40 Pin 1024×600 Pixel Product Image
