Unveiling the 7-Inch HDMI TFT LCD Display: Revolutionizing Raspberry Pi Experience
Introducing the SFRA700H-1024600ACT-01, an avant-garde HDMI TFT LCD module seamlessly amalgamating TFT LCD, PCAP touch, and an ingenious driving board.
1- Witness the seamless fusion of HDMI digital signals from PCs onto the vibrant 1024*600 LCD canvas.
2- Versatility defined: Compliant with HDMI 1.3, HDMI 1.4, HDCP 1.4, and HDCP 2.2 standards. Compatible with a myriad of mini PCs including Raspberry Pi, BB Black, Banana Pi, and more.
3- Touch innovation: USB to I2C transmission obviates the need for cumbersome driver installations.
4- Tailored for Raspberry Pi displays, yet transcending boundaries to adorn other HDMI industrial control small screen touch devices. With Raspberry Pi, embrace compatibility with Raspbian, Ubuntu, WIN10 IOT, and beyond.
5- Embrace the evolution: Seamlessly integrate into computer displays, offering support for Windows 7/8/10, boasting five-point touch functionality, all sans drivers.
| Product: | 7 Inch HDMI TFT LCD |
|---|---|
| Resolution: | 1o24X600 Pixels |
| Outline Dim.: | 229.46 (H) X149.1(V) X 4.3(T) (mm) |
| Active Area: | 216.96 (H) X 135.6(V) (mm) |
| Operating Temp: | -20℃ To +70℃ |
| Pin Number: | 40pins |
| Interface: | 8 Bits-LVDS Interface |
| Compliance: | REACH & RoHS Compliant |
7 Inch HDMI TFT LCD Display Compatible with Raspberry PI Product Drawing

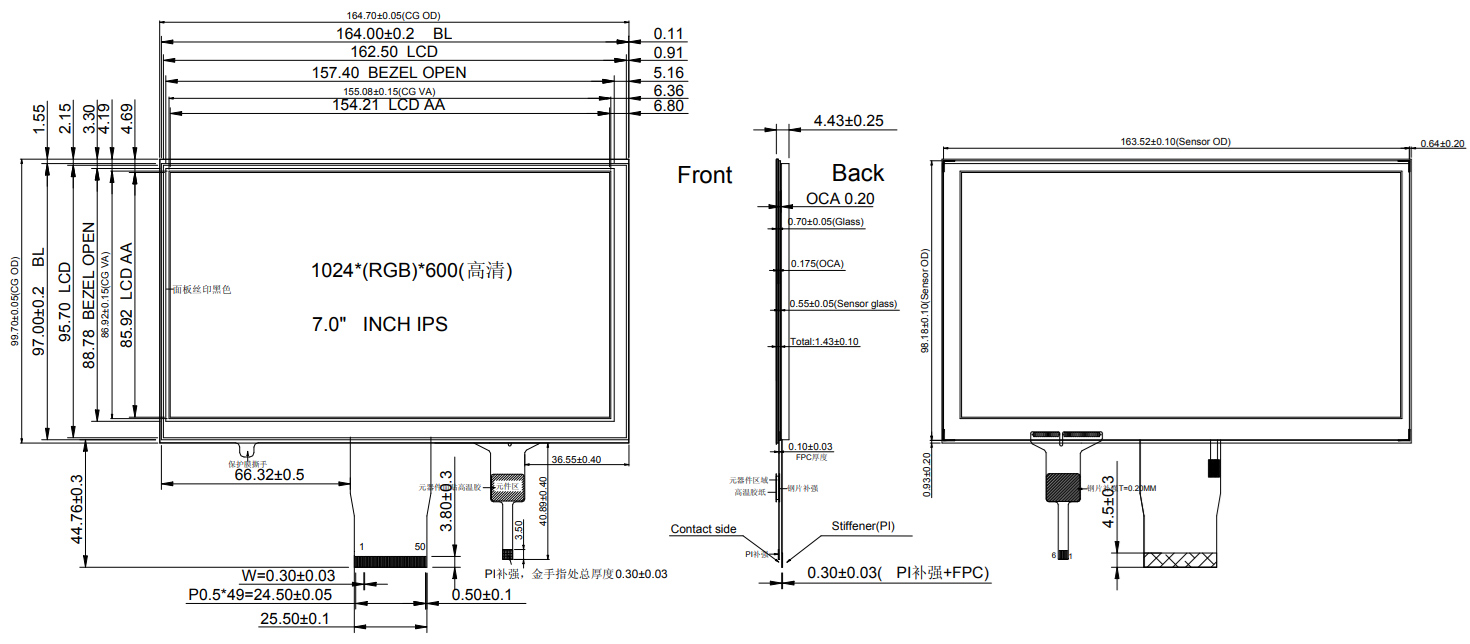

(Capacitive Touchscreen 7 inch TFT LCD Drawing ONLY)

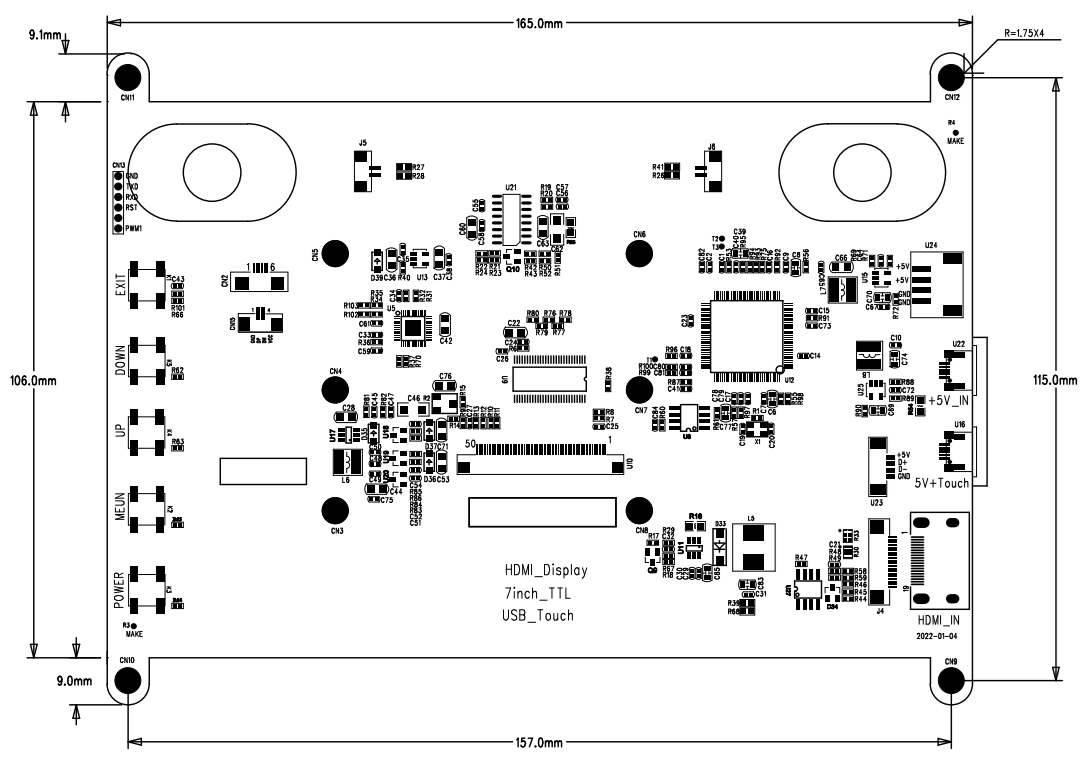

(HDMI PCB Drawing ONLY)
HDMI Interface Pin definition
| 1 | T.M.D.S DATA2+ |
| 2 | T.M.D.S DATA2 Shielded |
| 3 | T.M.D.S DATA2- |
| 4 | T.M.D.S DATA1+ |
| 5 | T.M.D.S DATA1 Shielded |
| 6 | T.M.D.S DATA1- |
| 7 | T.M.D.S DATA0+ |
| 8 | T.M.D.S DATA0 Shielded |
| 9 | T.M.D.S DATA0- |
| 10 | T.M.D.S DATA CLOCK+ |
| 11 | T.M.D.S DATA CLOCK Shielded |
| 12 | T.M.D.S DATA CLOCK- |
| 13 | CEC (Consumer Electronics Control Optional) |
| 14 | Reserved (in cable but N.C. on device) |
| 15 | SCL(DDC) |
| 16 | SDA(DDC) |
| 17 | DDC/CEC Ground |
| 18 | +5V (power supply) |
| 19 | Hot swap probe cable |
Characteristics
| Version | 001 | ||
| Signal supported
|
HDMI | 480i,480p,576i,576p,720p,1080i,1080p | |
| TOUCH | USB standard | ||
| VGA | Not support | ||
| Interface on mainboard |
input
|
HDMI | A type HDMI patch female 19Pin patch (horizontal) |
| USB | MICRO 5P USB female B type 5.9MM (horizontal) | ||
| Earphone interface | NC | ||
| Touch Interface | 6 pins | FPC-0.5-6PIN (horizontal) | |
| Display Interface | RGB 50 pin | FPC-0.5-50PIN (horizontal) | |
| Audio | Audio output | 8Ω1.5W | 4PIN-1.25 H1.8 Ultra-thin female seat (horizontal) |
| Power supply | Power input | USB input 5V（+/-0.5V） | |
| Display Vop | 3.3V | ||
| Power operation | Power on display | ||
| Mainboard standby power consumption | ＜0.25W | ||
| OSD Menu | Menu (reserve) | Brightness, Contrast, Auto Correction, Phase, Clock, Field Position, Function Setting, Reset, etc. | |
| Language(reserve) | Chinese, English, French, German, Italian, Spanish, Russian, Korean, Japanese, etc. | ||
| button (reserved) | POWER、MENU、UP、DOWN、EXIT | ||
Reliability Test
| Item | Condition | Time (hrs) | Assessment |
| High temp. Storage | 80°C | 120 |
No abnormalities in functions and appearance |
| High temp. Operating | 70°C | 120 | |
| Low temp. Storage | -30°C | 120 | |
| Low temp. Operating | -20°C | 120 | |
| Humidity | 60°C/ 90%RH | 120 | |
| Thermal Shock Temp. Cycle | -20°C ¬ 25°C ®70°C
(0.5 hour ¬ 5 min ® 0.5 hour) |
10cycles | |

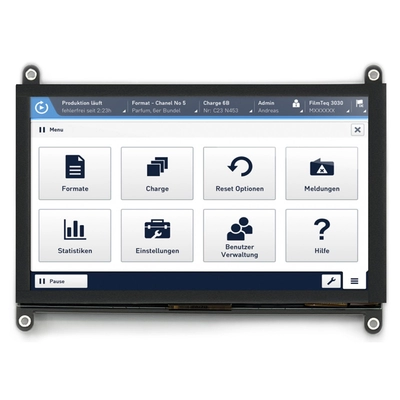

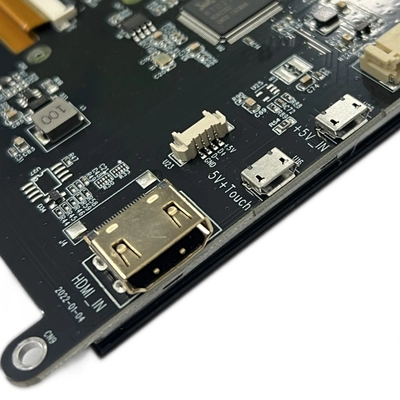

7 Inch HDMI TFT LCD Display Compatible with Raspberry PI Product Image
Projected Capacitive (PCAP) touch
Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The Techstar’s projected capacitive touch screen is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.
