Description
Unveiling the SFTO700XC-7026AN TFT LCD Display, a 7-inch marvel with wide-temperature resilience and a captivating resolution of 1024×600 pixels. This industrial-grade gem thrives on burstiness, featuring an IPS-type full viewing angles screen, dancing with diversity. Operating at a dynamic 3.3V, Vdd gracefully spans the range of 3.0V to 3.6V, orchestrating a symphony of power.
Imbued with a capacitive touch panel, the SFTO700XC-7026AN beckons interaction, offering optional IIC and USB interfaces. Illuminated by a luminance of 1000cd/m2, this TFT LCD module stands as a beacon of quality. A stalwart companion in the industrial and medical realms, it graces applications like POS terminals, HMI systems, home automation, and the vigilant realms of security systems.
This 7-inch TFT display features a color active matrix TFT LCD with amorphous silicon TFTs (ThinFilm Transistors) serving as active switching devices.

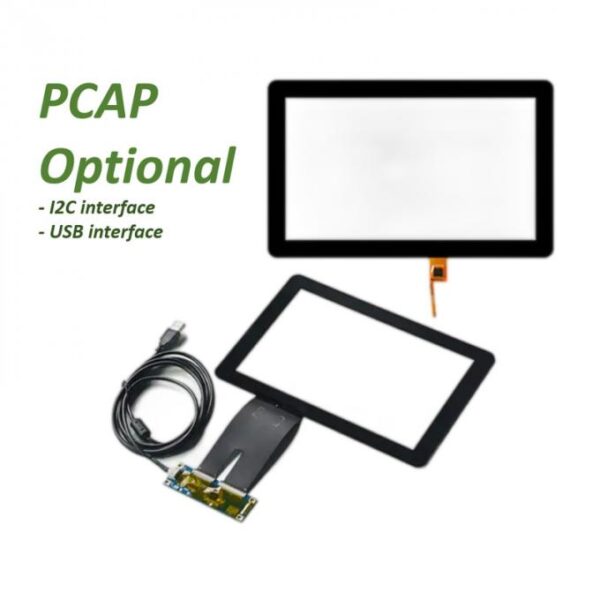

Equipped with a PCAP (Projected Capacitive) touch screen, the cover glass of this 7-inch TFT display can be customized to meet customer requirements.
With a color gamut of typically 50% and a minimum of 45%, this TFT screen ensures vibrant and accurate color reproduction.
The response time of this 7-inch LCD TFT is typically 30ms, with a maximum of 35ms, ensuring smooth and responsive touch interactions.
Featuring a resolution of 1024×600 pixels, this 7-inch TFT display boasts a contrast ratio of typically 1000:1, with a minimum of 800:1, for sharp and clear visuals.
Operational across a wide temperature range from -30 degrees to +75 degrees Celsius, this 7-inch RGB TFT display is suitable for various environments and applications.
General Specifications
| Feature | Specifications | |
|
Display Spec. |
LCD type | 7.0Â inch |
| Resolution (H*V) | 1024(RGB)×600 | |
| Technology Type | a-Si TFT | |
| Pixel Configuration | R.G.B. Vertical Stripe | |
| Display Mode | Normally Black | |
| Surface Treatment | Glare | |
| Viewing Direction | ALL | |
| Gray Scale Inversion Direction | – | |
|
Mechanical Characteristics |
OutlineDimensions (W x H x T) (mm) | 164.86*99.96*3.5 |
| Active Area(mm) | 154.21*85.92 | |
| With /Without Touch screen | Without | |
| Match Connector Type | 0.5pitch ZIF Connector | |
| Backlight Type | LED | |
| Weight (g) | TBD | |
| Electrical
Characteristics |
Interface | LVDS |
| Number of color | 16.7M | |
| Driver IC | HX8282A+HX8696A | |

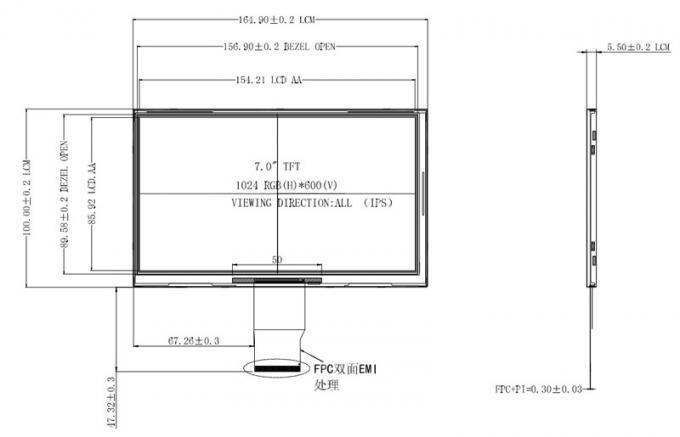

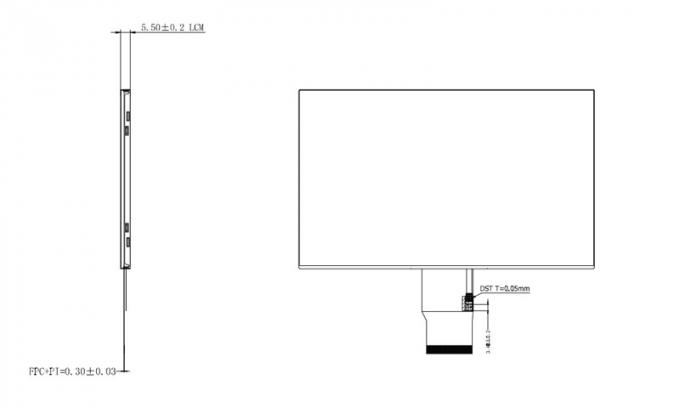

7 Inch LVDS TFT LCD Super Wide Operating Temp. Product Drawing
Pin Assignment
| PINÂ NO | SYMBOL | FUNCTION | REMARK |
| 1 | VCOM | Common voltage | |
| 2 | VDD | Power supply | |
| 3 | VDD | Power supply | |
| 4 | NC | NC | |
| 5 | RESET | Global reset pin | |
| 6 | STBYB | Standby mode | |
| 7 | GND | GROUND | |
| 8 | RXIN0- | Data lane0 input | |
| 9 | RXIN0+ | Data lane0 input | |
| 10 | GND | GROUND | |
| 11 | RXIN1- | Data lane1 input | |
| 12 | RXIN1+ | Data lane1 input | |
| 13 | GND | GROUND | |
| 14 | RXIN2- | Data lane2 input | |
| 15 | RXIN2+ | Data lane2 input | |
| 16 | GND | GROUND | |
| 17 | RXCLKN- | CLKÂ input | |
| 18 | RXCLKN+ | CLKÂ input | |
| 19 | GND | GROUND | |
| 20 | RXIN3- | Data lane3 input | |
| 21 | RXIN3+ | Data lane3 input | |
| 22 | GND | GROUND | |
| 23-24 | NC | NC | |
| 25 | GND | GROUND | |
| 26 | NC | NC | |
| 27 | DIMO | Backlight control（NC） | |
| 28 | SELB(HSD) | L=8BIT
H=6BIT |
Lvds
mode |
| 29 | AVDD | Power for analog circuit | |
| 30 | GND | GROUND | |
| 31-32 | LED- | LEDÂ Â Â Cathode | |
| 33 | L/R | Source right or left sequence | |
| 34 | U/D | Gate up or down scan control | |
| 35 | VGL | Gate off   voltage | |
| 36-37 | NC | NC | |
| 38 | VGH | Gate on voltage | |
| 39-40 | LED+ | LED Anode | |
 Absolute Maximum Ratings
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | 0.3~3.6 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -30 to 75 | 。C |
| Storage temperature | Tstg | -30 to 80 | 。C |
| Â |

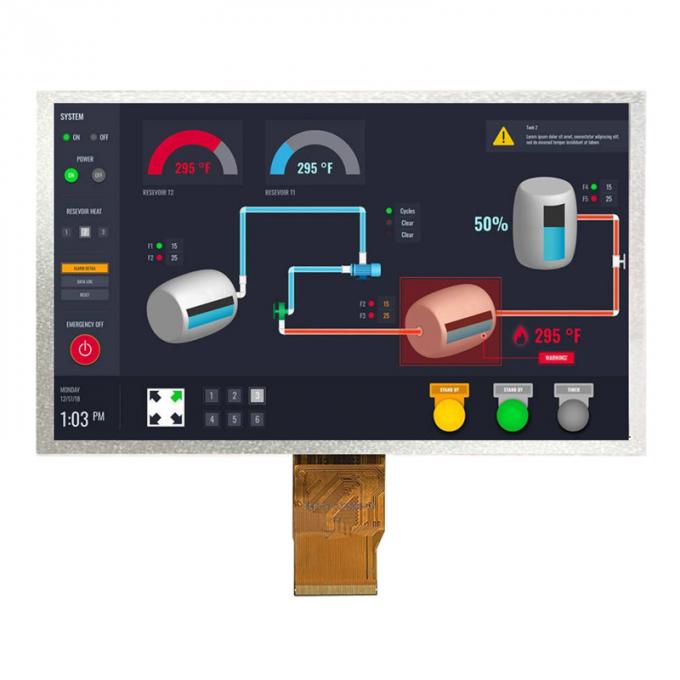

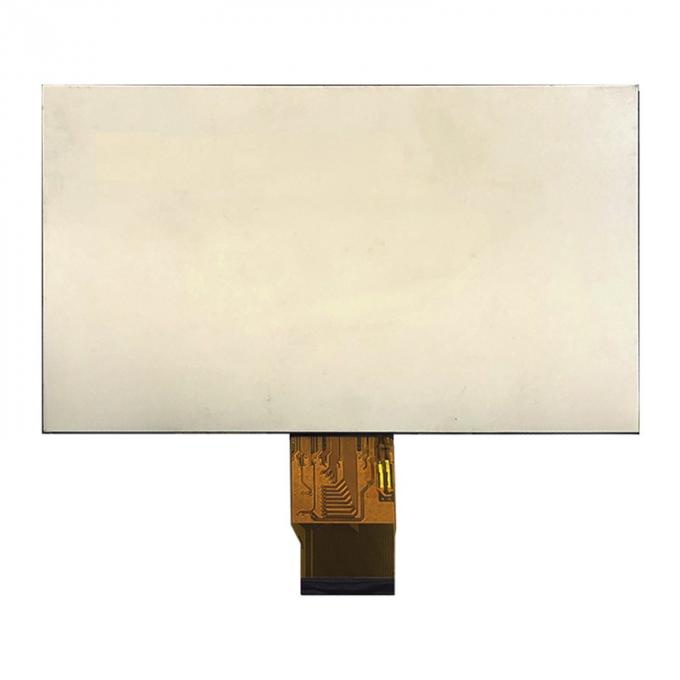

7 Inch LVDS TFT LCD Super Wide Operating Temp. Product Image
