Description
Introducing the Industrial-Grade TFT Display: Unleash Innovation with ShenZhen Techstar Electronics Incorporated Co., Ltd
Dive into innovation with the SFTO1010LX-7047A-N Industrial TFT display, boasting a captivating 10.1-inch IPS screen offering full viewing angles and a remarkable resolution of 1280×800 pixels. This cutting-edge display module sets a new standard in industrial-grade technology, supporting an 8-bit LVDS interface for seamless integration.
Elevate your projects with the SFTO1010LX-7047A-N’s high brightness PCAP TFT LCD screen, radiating brilliance at 420cd/m2 luminance and operating at a maximum voltage of 3.9V. With Vdd ranging from 2.3V to 3.6V, versatility meets performance in every aspect.

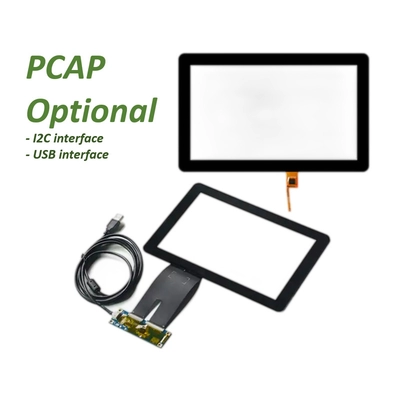

Experience seamless interaction with the capacitive touch panel, offering both single-touch and multi-touch options for enhanced usability. Whether in landscape mode or seeking to amplify luminance, our dedicated technical support ensures your vision comes to life.
The SFTO1010LX-7047A-N is more than a display; it’s a catalyst for innovation. From meters and instruments to GPS devices, POS terminals, and beyond, explore limitless possibilities across industries such as home automation, security systems, and beyond. Unleash the power of ShenZhen Techstar Electronics Incorporated Co., Ltd and redefine what’s possible.
Product Features:
| Product: | 10.1 Inch Industrial TFT Display |
| Resolution: | 1280 RGB X 800 |
| Interface: | 8 Bits-LVDS Interface |
| Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
| Pin Number: | 40pins |
| Surface Luminance: | 420 Cd/m2(nits) |
| Outline Dim.: | 229.46 (H) X149.1(V) X 2.5(T) (mm) |
| Active Area: | 216.96 (H) X 135.6(V) (mm) |
| Touch Screen: | RTP And CTP Optional |
| Display Colors: | 16.7 M |
| Surface Treatment: | Hard Coating(3H) |
| Connection: | ZIF |
| Operating Temp.: | -20℃ To +70℃ |
| Storage Temp.: | -30℃ To +80℃ |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant |
Industrial Grade TFT Display 10.1 Inch LVDS 1280×800 Pixels Product Drawing
Absolute Maximum Ratings
DC Characteristics
Optical Characteristics
Interface Pin Definition
1 NC Common Voltage
2 VDD Power Voltage for digital circuit
3 VDD Power Voltage for digital circuit
4 NC No connection
5 NC No connection
6 NC No connection
7 GND Ground
8 RXIN0- -LVDS differential data input
9 RXIN0+ +LVDS differential data input
10 GND Ground
11 RXIN1- -LVDS differential data input
12 RXIN1+ +LVDS differential data input
13 GND Ground
14 RXIN2- -LVDS differential data input
15 RXIN2+ +LVDS differential data input
16 GND Ground
17 RXCLKIN- -LVDS differential clock input LVDS
18 RXCLKIN+ +LVDS differential clock input Clock
19 GND Ground
20 RXIN3- -LVDS differential data input
21 RXIN3+ +LVDS differential data input
22 GND Ground
23 NC No connection
24 NC No connection
25 GND Ground
26 NC No connection
27 NC No connection
28 NC No connection
29 AVDD Power for Analog Circuit
30 GND Ground
31 LED- LED Cathode
32 LED- LED Cathode
33 NC No connection
34 NC No connection
35 VGL Gate OFF Voltage
36 NC No connection
37 NC No connection
38 VGH Gate ON Voltage
39 LED+ LED Anode
40 LED+ LED Anode

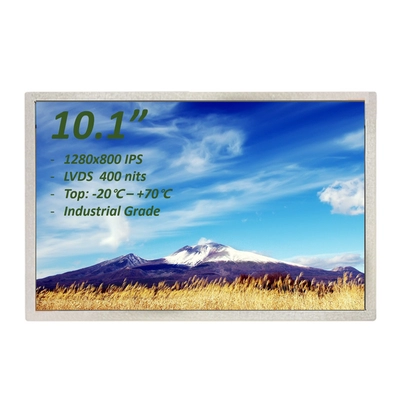

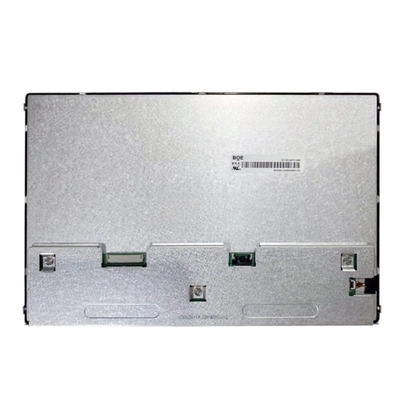

​Industrial Grade TFT Display 10.1 Inch LVDS 1280×800 Pixels Product Image
