Description
Introducing the SF-TC800I-9293C-T, an 8-inch full TFT-LCD display boasting a resolution of 800×600 (800 pixels horizontally by 600 pixels vertically). This model supports an RGB interface and operates with a supply voltage (VCC) ranging from 3.0V to 3.6V, making it versatile for various applications. Ideal for embedded systems, automation, GPS, medical equipment, industrial devices, and security systems requiring high-quality, colorful TFT displays.
The SF-TC800I-9293C-T features a TN-LCD type TFT with a gray scale inversion direction at 6 o’clock, ensuring optimal viewing angles. With a brightness rating of 250 cd/m² (typical value), it delivers clear visuals even in challenging environments. Operating temperatures range from -20°C to +70°C, while storage temperatures span from -30°C to +80°C, ensuring reliability across a wide range of conditions.
Furthermore, the SF-TC800I-9293C-T is fully compatible with the Innolux model EJ080NA-05B, offering seamless integration into existing systems. Whether for industrial automation, medical displays, or security interfaces, this TFT-LCD display provides crisp imagery and robust performance for demanding applications.
Product Specifications:
- Power supply voltage for logic VDD: 3.0~5.0 V
- Input voltage Vin: +0.3 V
- Operating temperature Topr: -20 to 70 °C
- Storage temperature Tstg: -30 to 80 °C
- Luminous Intensity for LCM: 250 Cd/m2
Notes:
- Absolute maximum rating denotes the threshold beyond which the IC may incur damage, and operational assurance is not guaranteed.
- The background color may subtly change based on ambient temperature. This reversible phenomenon is contingent on Ta≦70℃ (75%RH max) and Ta>70℃ (absolute humidity must be lower than the humidity of 75%RH at 70℃). Additionally, Ta at -30℃ will be <48 hrs, and at 80 ℃ will be <120 hrs.
Product Features
| Keywords: | 8 Inch TFT LCD Display |
|---|---|
| Touch Screen: | Resistive Touch Panel (Optional CTP) |
| Resolution: | 800*600 |
| Outline Dim.: | 183.00*141.00*7.30 MM |
| Active Area: | 162*121.5 MM |
| Cover Glass Dimension: | ODM |
| Interface: | RGB |
| Surface Luminance: | 250 Cd/m2 |
| LED Lifetime: | 40,000 Hours |
| Pins: | 50 |
| Viewing Direction: | 6 O’clock |
| Compliance: | REACH & RoHS Compliant |

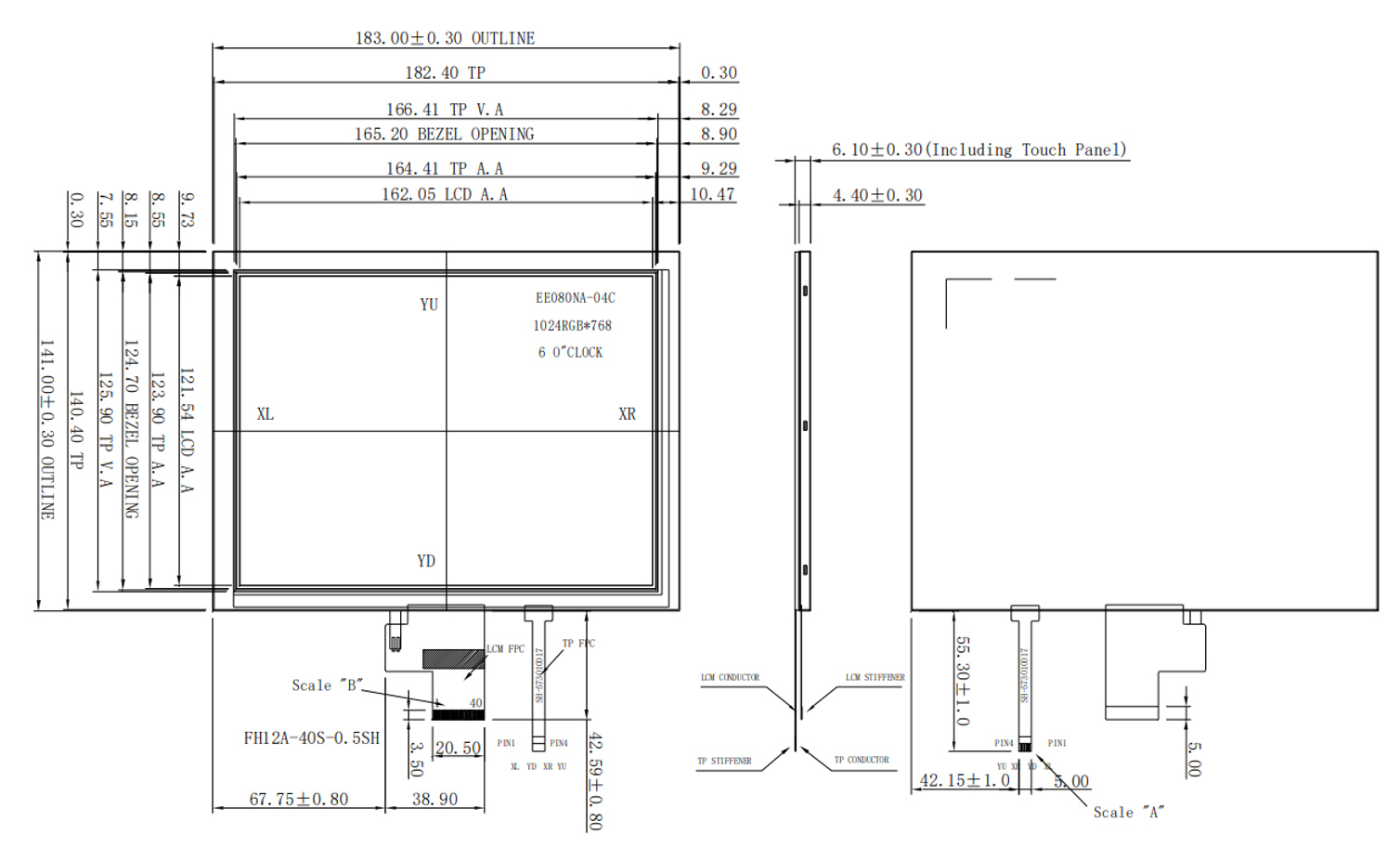

8 inch TFT-LCD 800×600 RGB Interface product Drawing
LCM PIN Definition
| Pin | Symbol | Function |
| 1 | VLED+ | Power for LED backlight(Anode) |
| 2 | VLED+ | Power for LED backlight(Anode) |
| 3 | VLED- | Power for LED backlight(Cathode) |
| 4 | VLED- | Power for LED backlight(Cathode) |
| 5 | GND | Ground |
| 6 | VCOM | Common voltage input |
| 7 | DVDD | Digital power supply |
| 8 | MODE | DE/SYNC mode select. H:DE mode. L:SYNC mode |
| 9 | DE | Data enable signal, active high to enable |
| 10 | VS | Vertical Sync Input, negative polarity |
| 11 | HS | Horizontal Sync Input, negative polarity |
| 12 | B7 | Blue data(MSB) |
| 13 | B6 | Blue data |
| 14 | B5 | Blue data |
| 15 | B4 | Blue data |
| 16 | B3 | Blue data |
| 17 | B2 | Blue data |
| 18 | B1 | Blue data |
| 19 | B0 | Blue data(LSB) |
| 20 | G7 | Green data(MSB) |
| 21 | G6 | Green data |
| 22 | G5 | Green data |
| 23 | G4 | Green data |
| 24 | G3 | Green data |
| 25 | G2 | Green data |
| 26 | G1 | Green data |
| 27 | G0 | Green data(LSB) |
| 28 | R7 | Red data(MSB) |
| 29 | R6 | Red data |
| 30 | R5 | Red data |
| 31 | R4 | Red data |
| 32 | R3 | Red data |
| 33 | R2 | Red data |
| 34 | R1 | Red data |
| 35 | R0 | Red data(LSB) |
| 36 | GND | Ground |
| 37 | DCLK | Clock for input data |
| 38 | GND | Ground |
| 39 | L/R | Source left or right sequence control |
| 40 | U/D | Gate up or down scan control |
| 41 | VGH | Positive power of TFT |
| 42 | VGL | Negative power of TFT |
| 43 | AVDD | Analog power supply |
| 44 | RESET | Global reset pin. |
| 45 | NC | No connection |
| 46 | VCOM | Common Voltage input |
| 47 | DITHB | Dithering setting H: 6 bit resolution , L: 8 bit resolution |
| 48 | GND | Ground |
| 49 | NC | No connection |
| 50 | NC | No connection |
Maximum Absolute Limit
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | 3.0~5.0 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -20 to 70 | °C |
| Storage temperature | Tstg | -30 to 80 | °C |
Reliability Test
| NO | Item | Conditions | Notes |
| 1 | High Temperature Storage | Ta=80℃±2℃, 72hrs | |
| 2 | Low Temperature Storage | Ta=-30℃±2℃, 72hrs | |
| 3 | High Temperature Operation | Ta=70℃±2℃, 72 hrs (Operation state) | |
| 4 | Low Temperature Operation | Ta=-20℃±2℃, 72 hrs (Operation state) | |
|
5 |
High Temperature and HighHumidity (Storage) | Ta=+60℃, 90%RH, 72hrs | |
| 6 | Thermal Cycling Test
(non-operation) |
-20℃(30min) → +70℃(30min),10cycles | |
|
7 |
Electrostatic Discharge | Human Body Mode,
100pF±10%/1500Ω±1% Air±8kV / contact±6kV Consecutive 10times/ Each discharge |
|
|
8 |
Vibration test (with carton) | Total fixed amplitude:15mmVibration Frequency :10~55Hz
One cycle 60 seconds to 3 directions of X,Y,Z for Each 15 minutes |
|
| 9 | Drop (with carton) | Height: 60cm
1 corner, 3Â edges, 6 surfaces |
|
2.2″ Inch TFT LCD QCIF 176×220 ILI9225G Driver IC Image

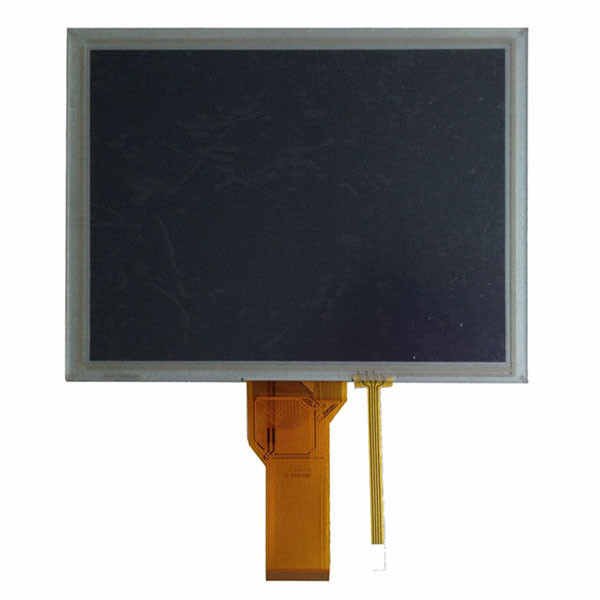

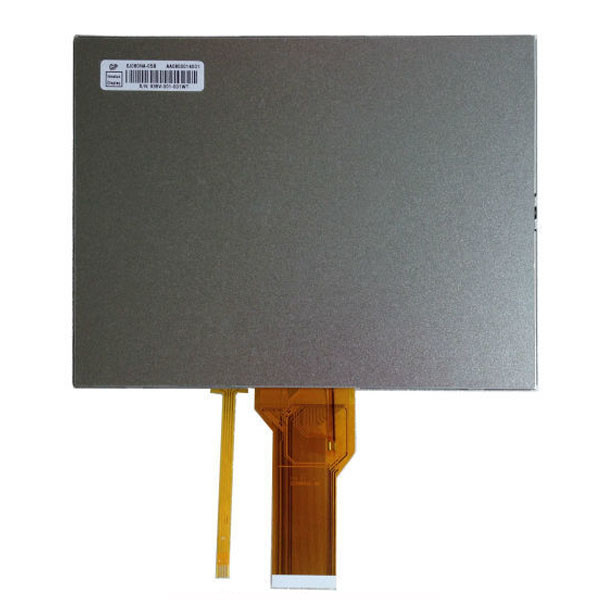

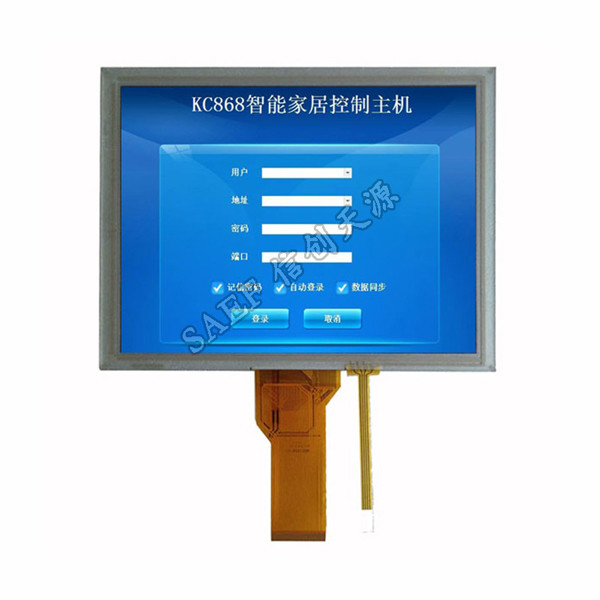

8 inch TFT-LCD 800×600 RGB Interface product Image
