4.6 Inch Bar Type TFT Display: The Perfect Fit for Narrow Spaces
Product Highlights
- Size: 4.6 inches (diagonal)
- Resolution: 800×320 pixels
- Viewing Angle:Â IPS
- Interface: RGB
- Driver IC: ILI5960 + ILI6122
- Brightness: 400 cd/m²
- Touch:Â Optional capacitive touch panel
Maximize Information Density in Tight Spots
This ultra-wide bar-type display (4:1 aspect ratio) is designed to deliver maximum visual information where space is limited. Â It’s ideal for:
- Appliance Information Panels:Â Display status, settings, and more.
- Automotive Dashboards:Â Integrate into streamlined designs.
- Dynamic Displays:Â Replace multiple smaller displays with a single, eye-catching solution.
Clear, Bright Visuals
The MIPI interface ensures fast communication, and the 400nits white LED backlight delivers crisp visuals even in well-lit environments. The IPS panel offers wide viewing angles for excellent visibility.
Get in Touch
Add a capacitive touch panel to create interactive user experiences.
TECHSTAR Displays: Your Source for Bar-Type TFT Solutions
We carry a wide range of bar-type TFT displays to suit your needs. [Include a link to a display selection page or contact form if applicable].
Contact us today to discuss your next display project!
| Keywords: | Bar Type 4.6 Inch TFT LCD Display |
| Touch Screen: | Capacitive Touch Screen Optional |
| Resolution: | 800×320 |
| Cover Glass Dimension: | Customizable |
| Interface: | RGB |
| Surface Luminance: | 400 Cd/m2 (nits) |
| LED Lifetime: | 40,000 Hours |
| Pins: | 40 Pins |
| Viewing Direction: | 12 O’clock |
| Connection: | ZIF / Plugging |
| Operating Temp.: | –20℃ To +70℃ |
| Compliance: | REACH & RoHS Compliant |

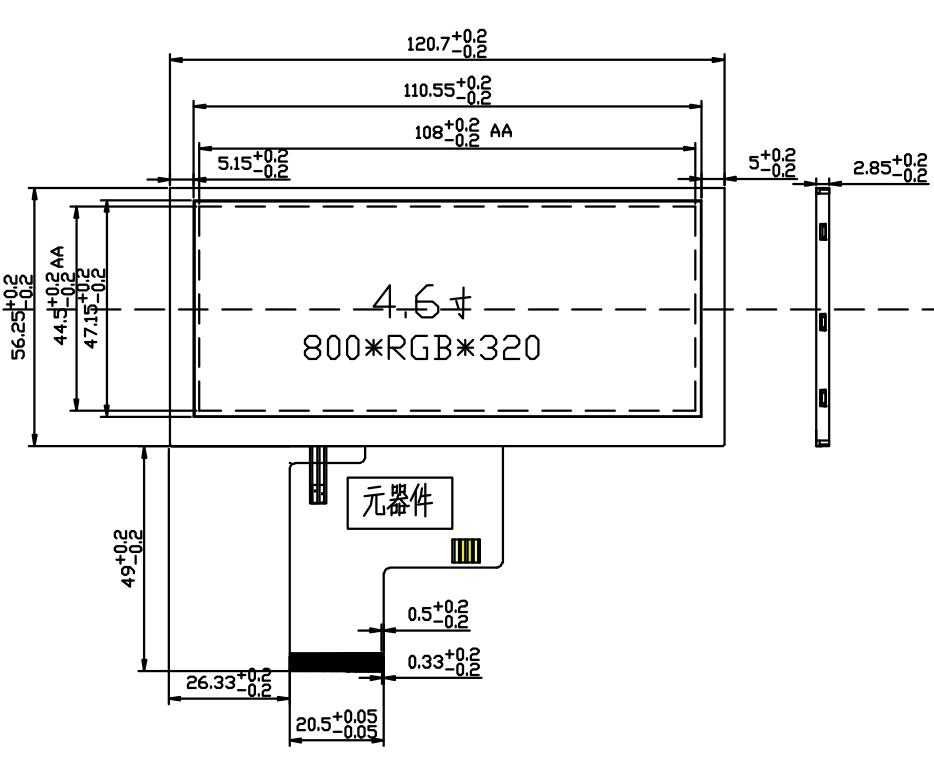

4.6″ 800×320 Bar Type TFT Display Drawing
Interface Pin Definition
| No. | Symbol | Description |
|---|---|---|
| 1 | VLED- | Backlight LED Cathode |
| 2 | VLED+ | Backlight LED Anode. |
| 3 | GND | System Ground |
| 4 | VCC | Power supply for logic operation |
| 5~12 | R0~R7 | Data bus |
| 13~20 | G0~G7 | Data bus |
| 21~28 | B0~B7 | Data bus |
| 29 | GND | System Ground |
| 30 | DCLK | Pixel clock signal |
| 31 | DISP | Display on/off control |
| 32 | HSYNC | Horizontal Sync signal |
| 33 | VSYNC | Vertical Sync signal |
| 34 | DE | Data Enable |
| 35 | NC | No connection |
| 36 | GND | System Ground |
| 37 | NC | No connection |
| 38 | NC | No connection |
| 39 | NC | No connection |
| 40 | NC | No connection |

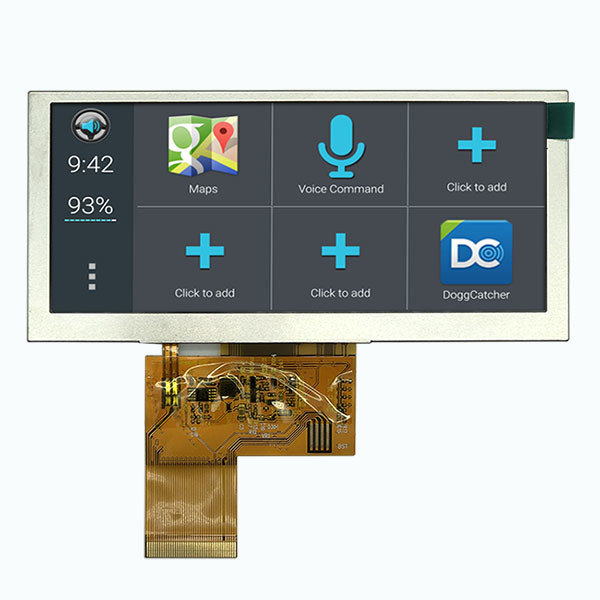

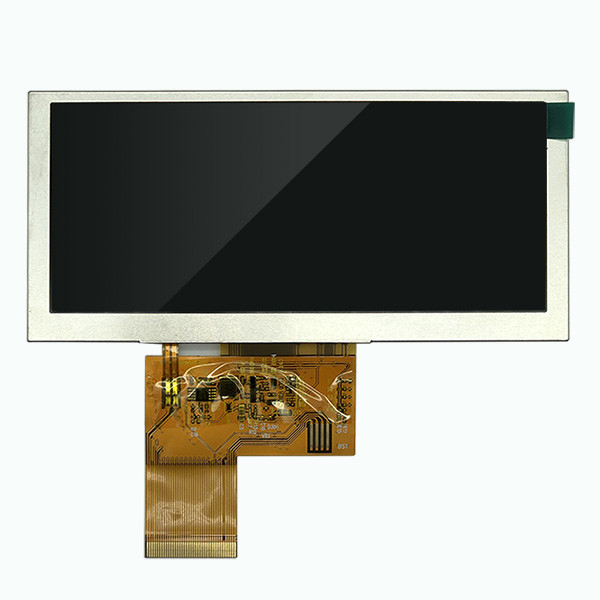

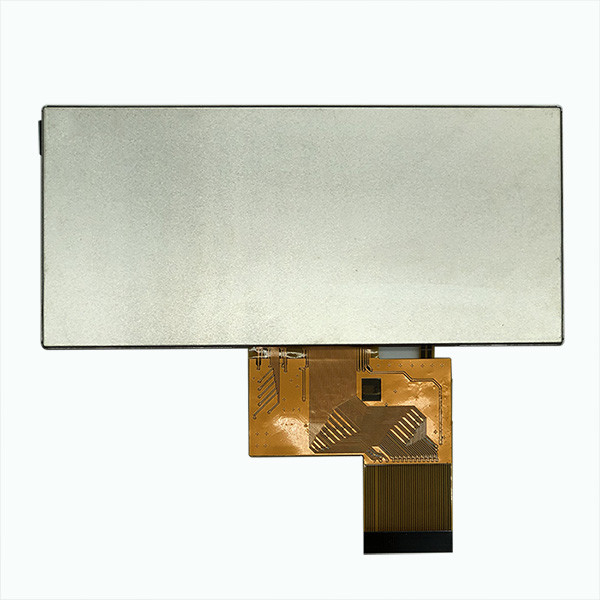

4.6″ 800×320 Bar Type TFT Display Product Image
