Capacitive Touchscreen 5 inch 800×480 RGB TFT LCD Display Module For Industrial Equipment Use

——————–

short description

Description

Delve into the intricacies of the TFT Touch Display Module with this detailed description.

Introducing the SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD  5-inch TFT Touch Display Module, model SF-TC500C-8295A-CT. This premium module boasts a higher resolution, setting a new standard in display technology. Featuring a 5-inch diagonal screen with an impressive 800xRGBx480 resolution, this full-color TN TFT-LCD module offers unparalleled clarity and vibrancy.

Unlike conventional TFT modules, the SF-TC500C-8295A-CT strikes the perfect balance between size and resolution. Nestled between the standard 4.3-inch and 5.7-inch modules, it offers a compact design without compromising on visual fidelity.

The SF-TC500C-8295A-CT comes equipped with an RGB interface, ensuring seamless connectivity for a variety of applications. Additionally, its landscape orientation and capacitive Touch Panel enhance user interaction, providing a truly immersive experience.

Brightness is a key highlight of this module, with a surface luminance of 450 cd/m² (nits). For those seeking even greater luminosity, customization options allow for a dazzling 1000 cd/m² (nits) brightness, catering to diverse project requirements.

Whether you’re designing a cutting-edge device or upgrading an existing system, the SF-TC500C-8295A-CT offers the perfect blend of performance and versatility. Elevate your projects with this state-of-the-art TFT Touch Display Module.

Product Features:

Keywords: 5 Inch TFT LCD
Outline Dimension: 120.7(L) X 76.3(W) X 2.8(T) mm
Touch Screen: Capacitive Touch
Resolution: 800*480
Cover Glass: ODM
Interface: RGB
Connection: Plugging / ZIF
Surface Luminance: 450 Cd/m2
LED Lifetime: 40,000 Hours
Compliance: REACH & RoHS Compliant



Capacitive Touchscreen 5 inch TFT LCD Display RGB Interface Drawing

5 Inch LCD TFT Touch Display , Industrial Capacitive Touch Screen 800×480 05 Inch LCD TFT Touch Display , Industrial Capacitive Touch Screen 800×480 1



Interface Pin Definition

NO. PIN NAME I/O Description
1 LED-K I LED Cathode
2 LED-A I LED Anode
3 VSS I Power Ground
4 VDD I Power Source
5-12 R00-R07 I RED Data Signal (LSB)
13-20 G00-G07 I GREEN Data Signal(LSB)
21-28 B00-B07 I BLUE Data Signal(LSB)
29 VSS I Power Ground
30 DLCK I Clock Signal to Sample each date
31 DISP I Display ON/OFF Signal
32 HSYNC I Horizontal Synchronizing Signal
33 VSYNC I Vertical Synchronizing Signal
34 DE I Input Data enable control
35 NC Set Open
36 GND I Power Ground
37 XR I Touch Panel PIN
38 YD I Touch Panel PIN
39 XL I Touch Panel PIN
40 YU I Touch Panel PIN

Maximum Absolute Limit:

Item Symbol Value Unit
Power supply voltage for logic VDD 3.0-3.6 V
Input voltage Vin VDD+0.3 V
Operating temperature Topr -20 to 70 °C
Storage temperature Tstg -30 to 80 °C


Backlight Electrical-optical Characteristics

Item Symbol MIN TYP MAX UNIT Test

Condition

Supply Voltage Vf 9.3 19.2 9.9 V If=160 mA
Supply Current If 40 mA
Reverse Voltage Vr 5 V
Power dissipation Pd mW
Luminous Intensity for LCM

400 450 500 Cd/m2 If=160mA
Uniformity for LCM 80 %    If=160 mA
Backlight Color White


Reliability Test

Item Condition Time (hrs) Assessment
High temp. Storage 80°C 120

No abnormalities

in functions

and appearance

High temp. Operating 70°C 120
Low temp. Storage -30°C 120
Low temp. Operating -20°C 120
Humidity 60°C/ 90%RH 120
Thermal Shock Temp. Cycle -20°C ¬ 25°C ®70°C

(0.5 hour ¬ 5 min ® 0.5 hour)

10cycles

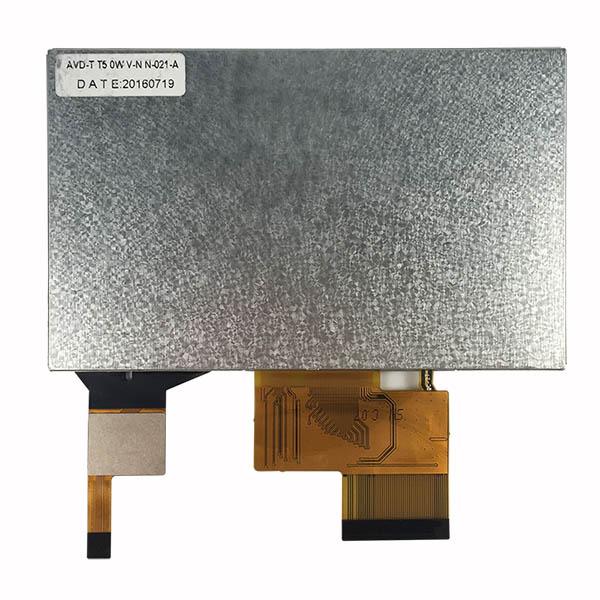

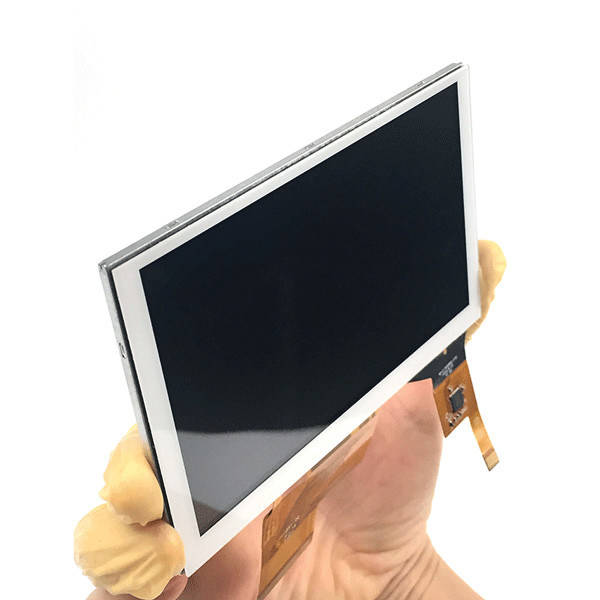

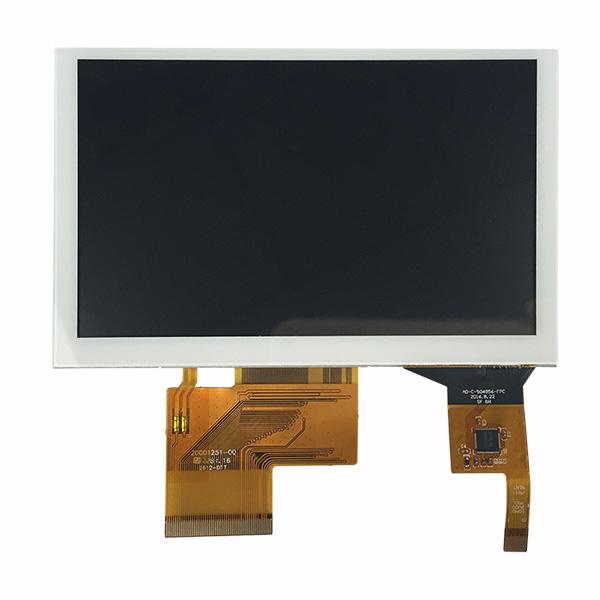

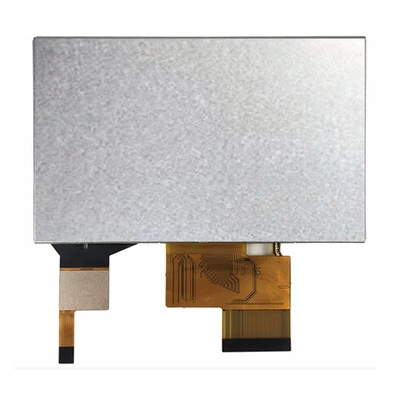

Capacitive Touchscreen 5 inch TFT LCD Display RGB Interface Image

5 Inch LCD TFT Touch Display , Industrial Capacitive Touch Screen 800×480 35 Inch LCD TFT Touch Display , Industrial Capacitive Touch Screen 800×480 4





5 Inch LCD TFT Touch Display , Industrial Capacitive Touch Screen 800×480 5



Additional information

Place of Origin

ShenZhen / China

Brand

ShenZhen Techstar Electronics

Model

SF-TC500C-8295A-CT

Certification

ISO9001 / ISO14000

Minimum Order Quantity

2 pcs

Price

Negotiable based on order lot quantity

Packaging Details

Standard Exportation Package

Delivery Time

1-5 weeks

Payment Method

L/C, Paypal, T/T, Western Union

Supply Ability

3000K pcs per month
