Description
Introducing the China Industrial TFT Display – A 13.3 Inch Marvel of Visual Technology
Behold the SFTO1330JD-7057A-CT TFT LCD display, a pinnacle of visual innovation spanning 13.3 inches diagonally. This vibrant display harnesses the power of amorphous silicon TFTs (Thin Film Transistors) to deliver breathtaking imagery. With a Full-HD resolution boasting 1920 horizontal by 1080 vertical pixels, every detail comes to life with stunning clarity.
But the magic doesn’t stop there. Each pixel is meticulously divided into RED, GREEN, and BLUE dots, arranged in vertical stripes, offering a spectrum of 16.7 million (rounded up) colors and a color gamut of 72%. And let’s not forget the built-in LED driver, ensuring consistent and vivid backlighting across the panel.
Prepare to be captivated as the SFTO1330JD-7057A-CT display showcases graphics and text in glorious 1920×3×1080 dots, utilizing the eDP (Embedded Display Port) Ver1.2 interface. With a supply voltage of +3.3VDC for TFT-LCD panel driving, this display effortlessly balances power efficiency with performance.
And what about the visuals? Fear not, for this display incorporates color filters for exceptional color reproduction, delivering brighter and clearer pictures ideal for multimedia applications. Enjoy optimal viewing angles in all directions, thanks to the absence of a backlight-driving LED controller.
Here’s a glimpse of its features:
- Reserve Type
- eDP interface
- High-speed response
- 6-bit (Hi-FRC) color depth, Displaying 16.7M colors
- Integrated edge-type (LED) backlight
- Compatible with RGB98% and NTSC72%
- High luminance and contrast ratio, low reflection, and wide viewing angle
- DE (data enable) only
- RoHS and Halogen-free
- TEO 6.0, ES6.0 Compliant
- Gamma Correction
Product Information:
| Keywords: | 13.3 Inch Industrial TFT Display |
| Resolution: | 1920*1080 Pixels |
| LCD With Touch: | 327.2 X 215.2 X 6.3 Mm (with Touch) |
| LCD Interface: | EDP |
| Touch Screen: | CTP (Projective Capacitive Touch Screen) |
| LCD Size: | 305.1 X 178.5 X 2.45 Mm (w/o Touch) |
| Active Area: | 293.76 X 165.24 Mm |
| CTP Interface: | USB |
| Surface Luminance: | 300 Cd/m2 – 1000 Cd/m2 |
| Operating Temp.: | -10℃ To +60℃ |
| Storage Temp.: | -20℃ To +60℃ |
| Surface Treatment: | Haze 25%, 3H |
| Display Color: | 16.7 M |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Display Type: | IPS Full Viewing Angles |
| Contrast Ratio: | 1000 |
| LED Lifetime: | 30,000 Hours |
| Compliance: | REACH & RoHS Compliant |
Industrial TFT Display 13.3 Inch 1920×1080 Resolution With CTP Product Drawing

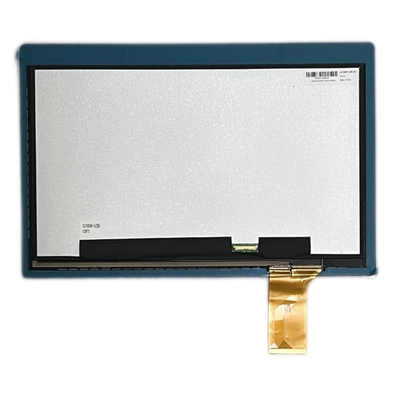

Industrial TFT Display 13.3 Inch 1920×1080 Resolution With CTP Product Image
