2-Inch QVGA TFT LCD Display Screen with ILI9342C Driver
Description of the 2-Inch Landscape QVGA TFT LCD
The ShenZhen Techstar Electronics Incorporated Co., Ltd SF-TC200C-8563A1-N presents a 2-inch TN type TFT LCD Display, boasting a QVGA resolution of 320×240 pixels. This TFT LCD module comes equipped with the advanced ILI9342CIC driver. Supporting an SPI interface, the supply voltage for analog (Vcc) is set at 3.2V (typical value).
Featuring an anti-glare surface panel, the SF-TC200C-8563A1-N LCD module ensures optimal visibility with its 12 o’clock view direction and 6 o’clock gray scale inversion. Operating seamlessly within a temperature range of -20°C to 70°C, it proves resilient and adaptable across various environments.
Product Features
| Product: | 2 Inch TFT QVGA |
|---|---|
| Resolution: | 320×240 |
| Touch Screen: | Without Touch Screen (Optional) |
| Cover Glass Dimension: | Customizable |
| Viewing Direction: | 12 O’clock |
| Driver IC: | ILI9342C Or Compatible |
| Interface: | SPI Interface |
| Connection: | Soldering |
| Pin Number: | 15 Pins |
| Surface Luminance: | 250 Cd/m2(nits) |
| LED Lifetime: | 40,000 Hours |
| Compliance: | REACH & RoHS Compliant |

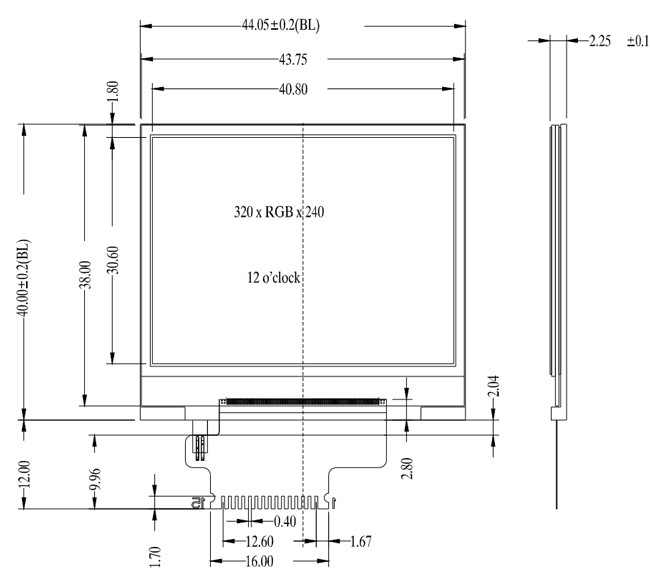

2 inch Landscape QVGA TFT LCD Product Drawing
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1 | LEDK | O | LED Cathode |
| 2 | LEDA | O | LED Anode |
| 3 | GND | I | Ground |
| 4 | VDD | I | Power Supply 2.8V Voltage |
| 5 | IOVCC | I | Power Supply 2.8V/1.8V Voltage |
| 6 | GND | I | Ground |
| 7 | CS | I | Input pin for chip selection signal |
| 8 | RESET | I | LCM Reset input signal |
| 9 | TE | I | Tearing effect output pin to synchronies MCU to frame writing, activated by S/W command. |
| 10 | SCK | I | This pin is used serial interface clock |
| 11 | SDA | I | Display Data input signal |
| 12 | RS | I | 4-line system (D/CX) |
| 13-15 | GND | I | Ground |
| Â | Â |
DC Characteristics (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test condition |
| Operating voltage | VDD | 2.6 | 2.8 | 3.3 | V | – |
| Supply current | IDD | – | – | 5 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | – | VDD | V | – |
| VIL | 0 | – | 0.2VDD | V | ||
| Input leakage current | IIL | -1.0 | – | 1.0 | mA | VIN=VDD or VSS |
Backlight Electrical-optical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT | Test
Condition |
| Supply Voltage | Vf | – | 3.2 | – | V | If=Â 40 mA |
| Supply Current | If | – | 40 | – | mA | – |
| Reverse Voltage | Vr | – | – | 5 | V | – |
| Power dissipation | Pd | – | 128 | – | mW | – |
| Luminous Intensity for LCM | Â
– |
– | 250 | – | Cd/m2 | If=Â 40 mA |
| Uniformity for LCM | – | 80 | – | – | ï¼… | If=Â 40 mA |
| Â |

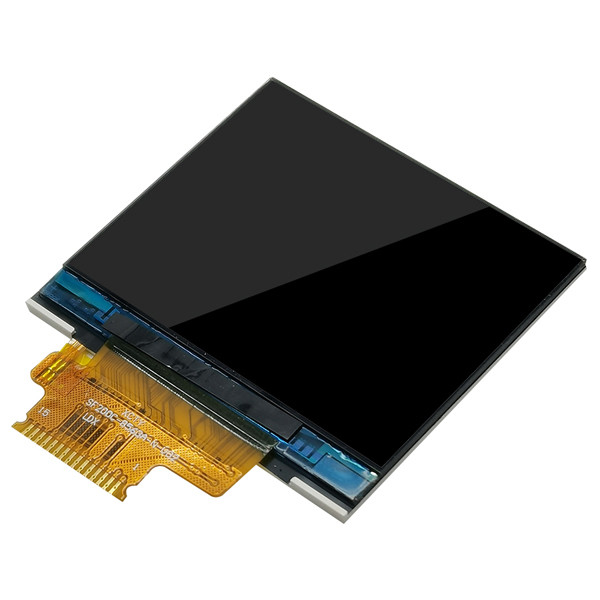

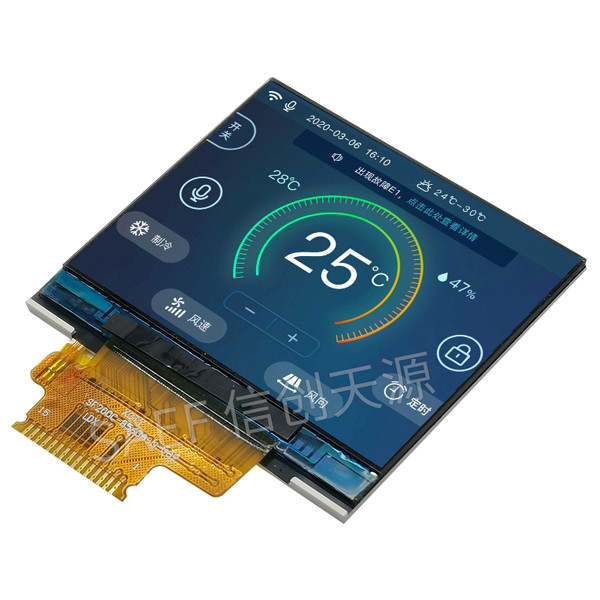

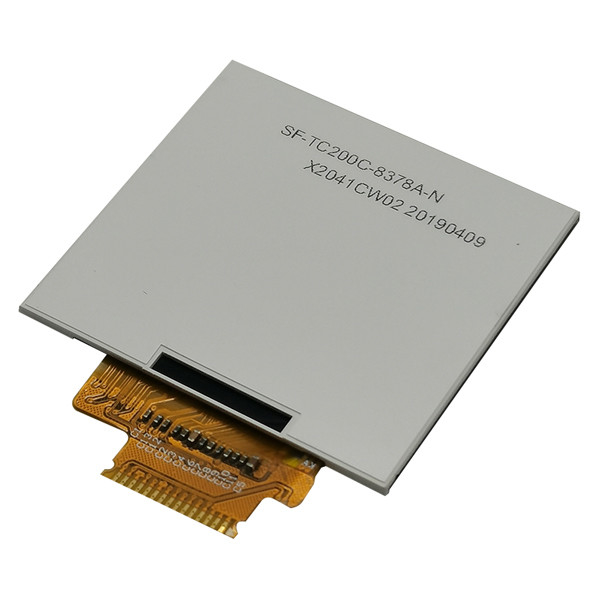

2 inch Landscape QVGA TFT LCD Product Image
