Description
Behold the IPS 3.2″ TFT LCD Display Screen boasting a resolution of 480×800 pixels. Let the narrative unfold:
Introducing the SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD SF-TC320S-9951H-N—a marvel of a 3.2-inch TFT-LCD display with a pixel array of 480 horizontal by 800 vertical, offering a visual symphony. This model gracefully embraces the RGB interface, with the LCD panel’s driving voltage (VCC) ranging from 2.6V to 3.3V. Its domain spans embedded systems, automation, GPS, medical apparatus, industrial devices, and security equipment, beckoning applications that demand a TFT display pulsating with high-quality, vibrant imagery.
Marvel at the SF-TC320S-9951H-N, a TFT of the IPS-LCD lineage, painting visuals with a brightness of 300 cd/m2 (typical value). Its operational resilience spans temperatures from -20℃ to +70℃, with storage capabilities extending from -30℃ to +80℃. A canvas of technological finesse awaits, where form meets function in a dance of captivating displays.
Unlocking the Advantages of Our Product
- Expansive IPS Viewing Angle (80/80/80/80): Delight in an exceptional viewing experience suitable for diverse applications, whether positioned on top, on a table, or held in your hands.
- Outstanding Display Performance: Revel in superior background color, luminance, viewing angle, and intensity for an unparalleled visual encounter.
- Premium Quality for Industrial and Medical Use: Tailored to meet the stringent standards of industrial and medical applications.
- Versatile Touch Screen Options: Choose between having or omitting a resistive touch screen. We specialize in designing personalized capacitive touch panels (CTP) and customizable Flexible Printed Circuits (FPC) for our clients.
- Competitive Pricing with Uncompromised Quality: Our solution offers a competitive price point without compromising on the quality, standing out in the LCD industry.
- Effortless Installation and Maintenance: Experience the ease of installation and maintenance, ensuring a hassle-free user experience.
Product Features
| Product: | 3.2″ IPS TFT LCD |
|---|---|
| Resolution: | 240×320 Dots |
| Viewing Direction: | IPS All Viewing Angles |
| Touch Screen: | Without Touch Screen (Optional) |
| Interface: | RGB Interface |
| Pin Number: | 39 Pins |
| Connection: | Plugging |
| Surface Luminance: | 300 Cd/m2 |
| Operating Temp.: | -20℃ To +70℃ |
| Compliance: | REACH & RoHS Compliant |

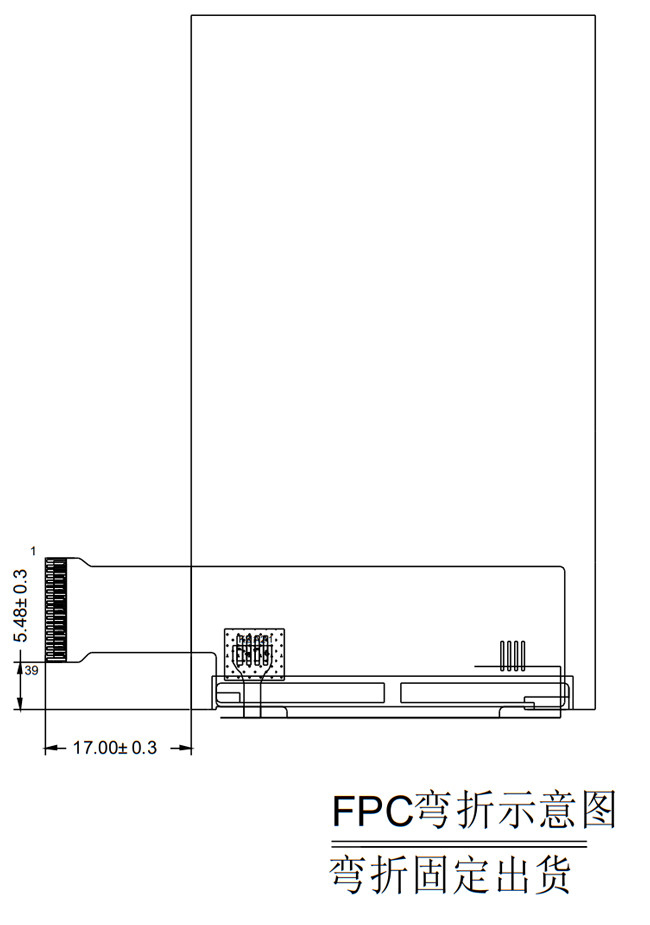

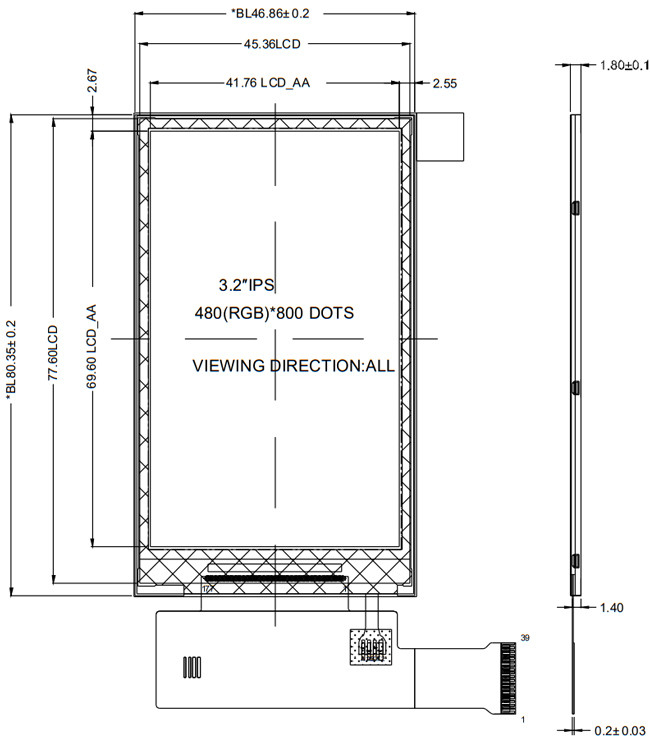

IPS 3.2″ LCD Display TFT Screen 480×800 pixels Product Drawing
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1 | GND | I | Ground |
| 2 | IOVCC | I | Power Supply 2.8V/1.8V Voltage |
| 3 | VCC | I | Power Supply 2.8V Voltage |
| 4 | CS | I | Input pin for chip selection signal |
| 5 | SCL | I | SPI Clock Signal |
| 6 | SDA | I/O | SPI Interface Input/output Pin |
| 7 | RESET | I | LCM Reset input signal |
| 8 | ENABLE | I | Input Data enable control |
| 9 | DOTCLK | I | Clock Signal to Sample each date |
| 10 | HSYNC | I | Horizontal Synchronizing Signal |
| 11 | VSYNC | I | Vertical Synchronizing Signal |
| 12-17 | B0-B5 | I/O | Display Data I/O |
| 18-23 | G0-G5 | I/O | Display Data I/O |
| 24-29 | R0-R5 | I/O | Display Data I/O |
| 30 | NC | – | Set Open |
| 31 | LED-K | O | LED Cathode |
| 32 | NC | – | Set Open |
| 33 | LED-A | O | LED Anode |
| 34 | NC | – | Set Open |
| 35 | XL | I | Touch Panel Pin |
| 36 | XR | I | Touch Panel Pin |
| 37 | YU | I | Touch Panel Pin |
| 38 | YD | I | Touch Panel Pin |
| 39 | GND | I | Ground |
| Â | Â |
Maximum Absolute Limit
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | Â 0.3~4.6 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -20to 70 | °C |
| Storage temperature | Tstg | -30 to 80 | °C |
| Â |
DC Characteristics (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test condition |
| Operating voltage | VDD | 2.6 | 2.8 | 3.3 | V | – |
| Supply current | IDD | – | – | 30 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | – | VDD | V | – |
| VIL | 0 | – | 0.2VDD | V | ||
| Input leakage current | IIL | -1.0 | – | 1.0 | mA | VIN=VDD or VSS |
Backlight Electrical-optical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT | TestCondition |
| Supply Voltage | Vf | Â | 19.2 | Â | V | If=Â 20 mA |
| Supply Current | If | – | 15 | 20 | mA | – |
| Reverse Voltage | Vr | – | – | 5 | V | – |
| Power dissipation | Pd | – | 288 | – | mW | – |
| Luminous Intensity for LCM | Â
– |
280 | Â | – | Cd/m2 | If=Â 20 mA |
| Uniformity for LCM | – | 80 | – | – | ï¼… | If=Â 20 mA |
| Â |

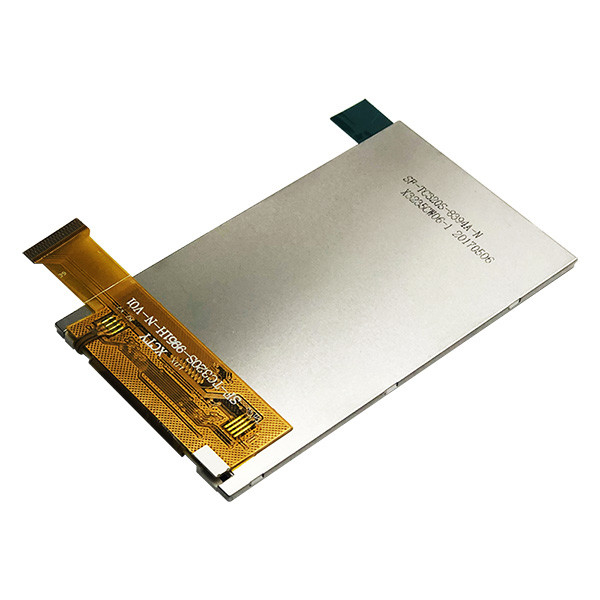

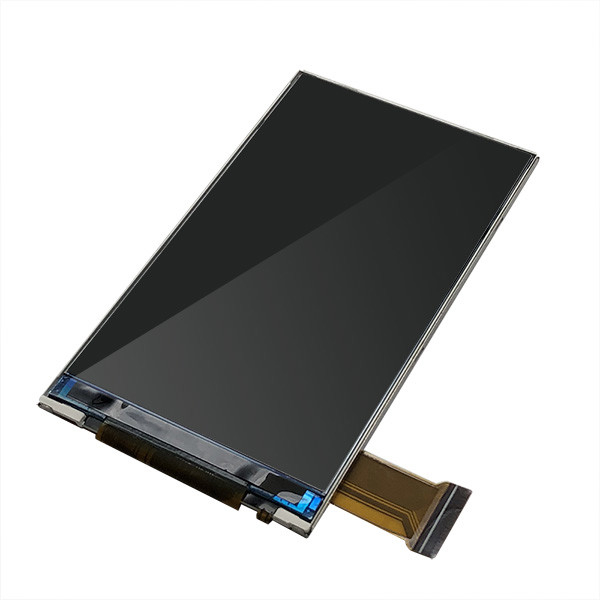

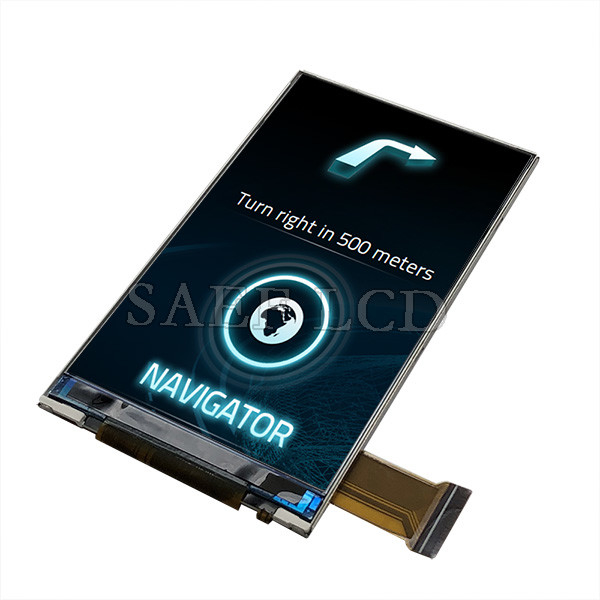

IPS 3.2″ LCD Display TFT Screen 480×800 pixels Product Image
