Description
Unveiling the SFOM312YZ7-12864WBYG-01, a cutting-edge 3.12-inch monochrome 256×64 Graphic OLED display module. Packed with an impressive lifespan of 50,000 hours, this OLED marvel seamlessly integrates with various microcontrollers, including popular choices like Raspberry Pi and ESP32.
Key Features:
- High-Resolution Display: The 3.12-inch OLED showcases a pixel-perfect resolution of 256 x 64, ensuring crisp and detailed visuals.
- Expansive Viewing Angles: With an ultra-wide viewing angle exceeding 160 degrees, this OLED display offers immersive visuals from any perspective.
- Versatile Voltage Support: Operating on a 3V DC voltage, this SPI OLED display is designed for compatibility and seamless integration with a wide array of devices.
- Energy-Efficient Performance: Boasting low-power consumption, it operates at a mere 0.04W during normal use and a frugal 0.08W in full-screen mode, ensuring efficiency without compromising performance.
- Microcontroller Compatibility: Tailored for microcontroller projects, it effortlessly interfaces with popular chips like Arduino Mega, Raspberry Pi, 51 MCU, STIM 32, and more.
- Embedded Driver IC: With only 2 I/O ports required for communication through the I2C/IIC interface, this OLED module streamlines connectivity and enhances ease of use.
- Compatibility Galore: The 3.12-inch OLED is a perfect match for MMDVM, Pi-Star, and Raspberry Pi, offering versatility in various applications.
- Self-Illuminating Design: Featuring a self-illuminating design, this 256×64 SPI OLED eliminates the need for a backlight. Its high contrast, vivid dots ensure readability even with small fonts.
- Font Customization: Users have the creative freedom to generate custom fonts using font generation software, as this OLED module comes without embedded fonts.
- Vibrant Color Options: Available in four captivating colors—blue, white, yellow, and green—this 3.12-inch OLED module adds a touch of personalization to your projects.
Product Information:
| Product: | 3.12″ COF OLED Display |
|---|---|
| Resolution: | 256×64 Dots Resolution |
| Display Mode: | Passive Matrix |
| Interface: | 4 Wires SPI Interface |
| Optics: | All Viewing Angles |
| Outline Dim.: | 100.5(L) X 33.5(W) X 6.3(T) mm |
| Active Area: | 76.78(L) X 19.18(W) mm |
| Driving Method: | 1/64 Duty Cycle |
| GreyScale: | 16 Greyscale |
| Controller: | SSD1322U |
| Operating Temp: | -30°C To +85°C |
| Storage Temp.: | -40°C To +90°C |
| Font Color: | White/Blue/Yellow/Green |
| Supply Voltage: | 3V |
| Pin Number: | 7 Header Pins, 16 Pins Optional |
| Compliance: | REACH & RoHS Compliant |

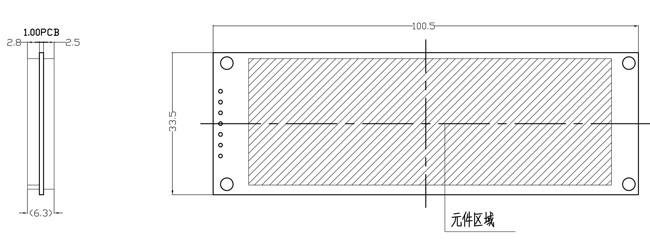

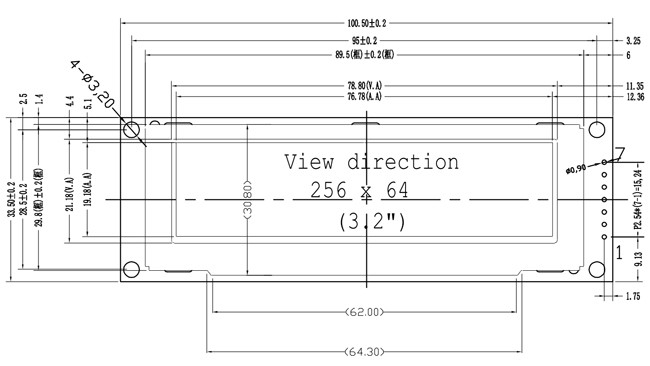

3.12″ 256×64 COF OLED Display Module, Greyscale OLED 3.12 inch Product Drawing
Pin Definition
Pin1 GND ( Power Ground )
Pin2 VCC ( Module power Voltage 3V – 5V)
Pin3 SCK ( Clock line )
Pin4 SDA ( Data line )
Pin5 RES ( This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin pull HIGH during normal operation.)
Pin6 DC (This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D[1:0] will be interpreted as data. When the pin is pulled LOW, the data at D[1:0] will be transferred to a command register. )
Pin7 CS (This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).

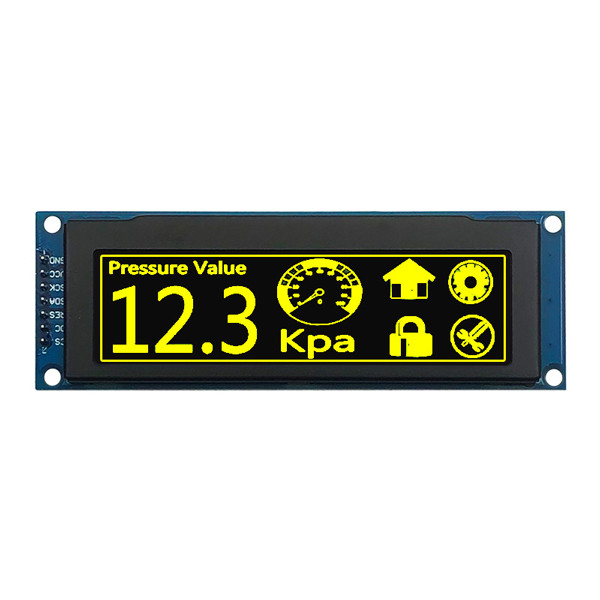

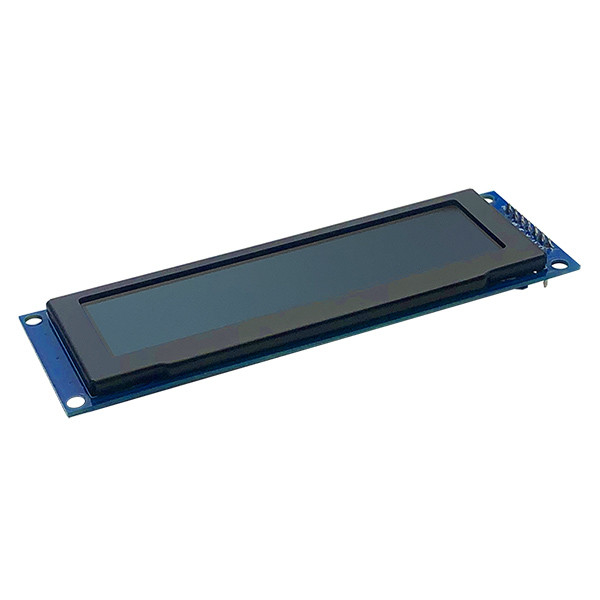

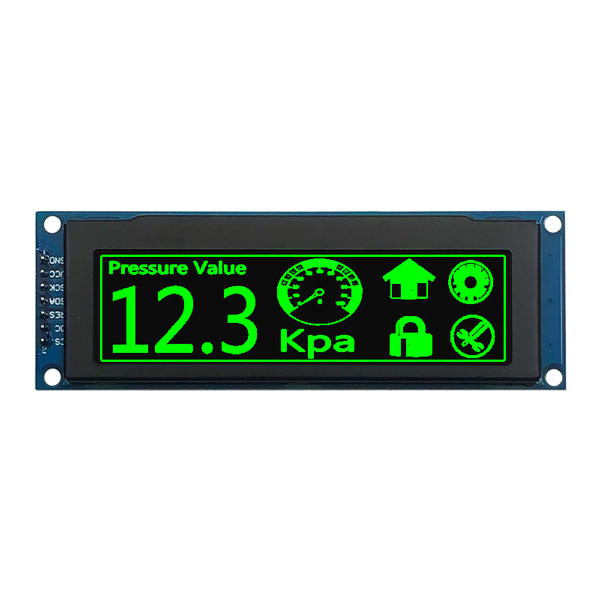

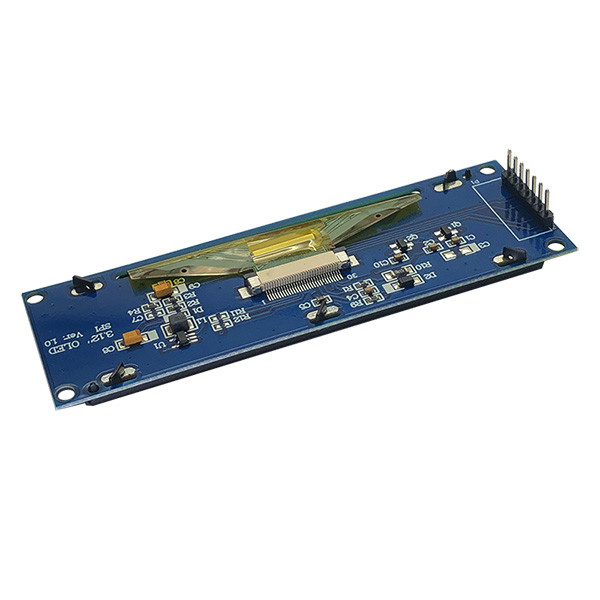

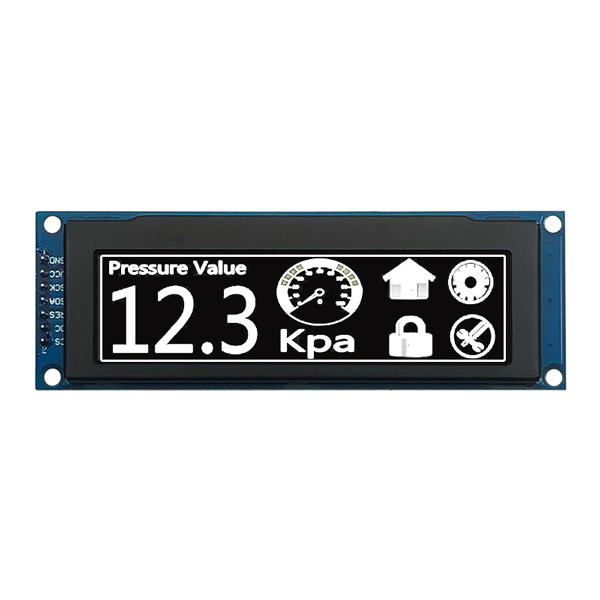

3.12″ 256×64 COF OLED Display Module, Greyscale OLED 3.12 inch Product Image
