COG Graphic STN LCD Display 128×64 with yellow Green Background color

SF12864-70L from ShenZhen Techstar Electronics Incorporated Co., Ltd: a sleek monochrome LCD display module featuring a Yellow Green LCD 128×64 resolution. This module is equipped with the ST7567 IC, supporting SPI interface for seamless integration. With dimensions measuring 39.0 x 31.1 x 3.5 mm and a visible area (VA) size of 36.0 x 23.5 mm, it strikes the perfect balance between compactness and usability. Operating smoothly within temperatures ranging from -10℃ to +60℃, and with a storage capacity spanning from -20℃ to +70℃, this display is versatile and reliable across various environments. Whether for industrial, consumer electronics, or other applications, this COG 128×64 LCD display caters to demands for space-saving yet high-performance visual interfaces.

Pin Definition:

Pin1, /CS1B,   Chip Select , When /CS= “L”, chip is selected

Pin2, /RST,     When /RST= “L”, the settings are initialized

Pin3, A0,         Select register data when A0= “H”, and instruction when A0= “L”

Pin4, SCK,      Serial clock input terminal

Pin5, SDA,      Serial data input terminal

Pin6, VDD,      Supply voltage for logic circuit +3.3V

Pin7, VSS,      Ground

Pin8, V0,         LCD driving voltage for common circuits at negative frame.

Pin9, XV0,       LCD driving voltage for common circuits at positive frame.

Pin10, VG,       LCD driving voltage for segment circuits

Engage with the pinnacle of LCD expertise through ShenZhen Techstar Electronics Incorporated Co., Ltd, a distinguished maestro in Character and Graphic LCD craftsmanship. Our prowess extends to a vast array of graphic LCD displays, each a testament to our unwavering commitment to innovation and precision engineering.

Dive into a realm where resolutions flourish, ranging from the intricate 96×16 LCD to the expansive 320×240 LCD, and beyond. SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD beckons you to explore dimensions that span from the compact confines of 2″ LCD to the grandeur of 4″ LCD Display, and beyond still.

Witness the symphony of light and clarity as our Graphic LCD modules grace your instruments and industrial machineries with their presence. But our reach extends far beyond, permeating into the realms of household marvels, consumer electronics, and industrial marvels alike. From POS systems to medical marvels, SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD Graphic LCDs stand as beacons of reliability and performance.

Why Entrust Us with Your Vision?

Bespoke Brilliance:

Do your aspirations demand a canvas beyond the ordinary? Our custom LCD solutions breathe life into your unique requirements, be it in the realms of electrical prowess, optical finesse, or tactile excellence.

Seamless Integration:

Fret not over the convergence of touch and display, for SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD orchestrates a seamless symphony of compatibility. From Resistive to Capacitive, our touch solutions, coupled with air & optical bonding services, elevate your experience to unprecedented heights.

Unwavering Excellence:

Quality isn’t just a virtue; it’s our creed. SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD stands as a bastion of quality, fortified by ISO9001:2015 and ISO14000 accreditations. Our commitment to environmental stewardship resonates through adherence to RoHS, REACH, and global environmental standards.

Futureproof Foresight:

In a world of transient trends, SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD stands as your stalwart companion, ensuring continuity amidst the flux. With a pledge of long-term supply extending beyond half a decade, we safeguard your journey with steadfast resolve.

Graphic LCD 128×64, Yellow Green LCD 128×64 Drawing

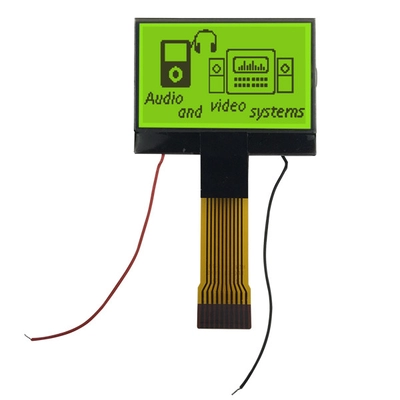

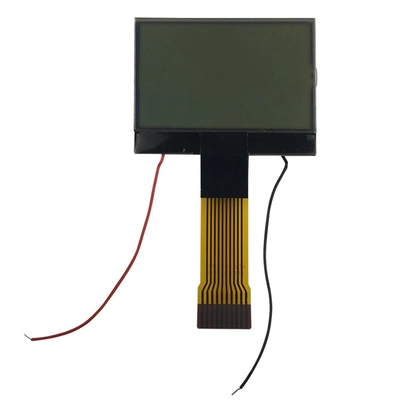

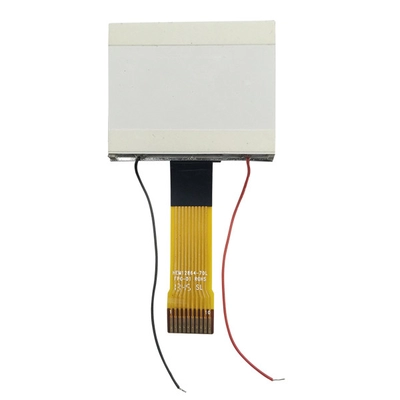

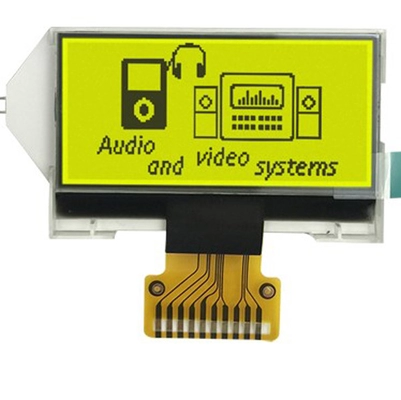

Graphic LCD 128×64, Yellow Green LCD 128×64 Product photo
