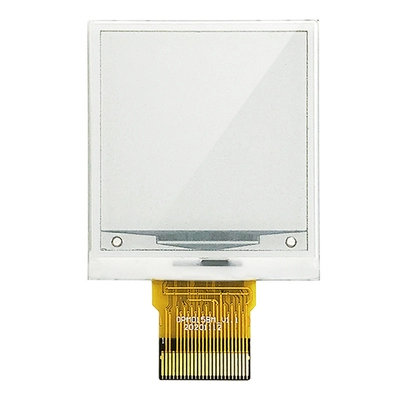

E-ink Display 1.54 inch: Ideal for Electronic Shelf Labels (ESLs)
The ShenZhen Techstar Electronics Incorporated Co., Ltd SFEPD154H-7003A01 is a 1.54-inch Active Matrix Electrophoretic Display (AM EPD) designed for ultra-low power applications like electronic shelf labels.
Key Features:
- Clear, Crisp Display: 152×152 pixel resolution for sharp text and images.
- High Readability: Excellent contrast (over 10:1) and wide viewing angles for visibility in various lighting conditions.
- Energy Efficient: Consumes minimal power, with a bi-stable display that holds images without electricity.
- Simple Integration: Serial peripheral interface (SPI) and I2C interface options for easy connection.
- Built-in Features: Includes display RAM, temperature sensor, and on-chip voltage regulators.
Benefits:
- Long Battery Life: Perfect for devices where frequent battery changes are impractical.
- Sunlight Readable: Offers a paper-like reading experience, even in bright sunlight.
- Versatile: Suitable for ESLs, wearable tech, and other low-power displays.
Application:

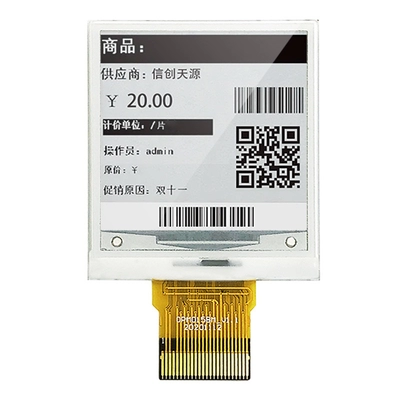

Electronic Shelf Label System
Product Information
| Screen Size | 1.54 inch | ||
|---|---|---|---|
| Display Mode | Active Matrix EPD | ||
| Display Resolution | 152(H)×152(V) Pixels | ||
| Active Area | 27.512 (H) × 27.512 (V) mm | ||
| Pixel Pitch | 0.181(H) × 0.181(V) | ||
| Pixel Configuration | Rectangle | ||
| Outline Dim.: | 31.80 (H) × 37.32(V ×1.14(D) mm | ||
| Weight | 2.7 g | ||
| Logic supply voltage | 3.0V typical | ||
| Operation Temperature | 0°C to +35°C | ||
| Storage Temperature | -25°C to +60°C | ||
| Interface: | SPI | ||
| Compliance: | REACH & RoHS Compliant | ||
E-ink Display 1.54 inch, EPD 1.54 inch Product Drawing
Interface Pin Definition
| No. | Name | I/O | Description | Remark |
| 1 | NC | Do not connect with other NC pins | Keep Open | |
| 2 | GDR | O | N-Channel MOSFET Gate Drive Control | |
| 3 | RESE | I | Current Sense Input for the Control Loop | |
| 4 | NC | NC | Do not connect with other NC pins | Keep Open |
| 5 | VSH2 | C | Positive Source driving voltage(Red) | |
| 6 | TSCL | O | I2C Interface to digital temperature sensor Clock pin | |
| 7 | TSDA | I/O | I2C Interface to digital temperature sensor Data pin | |
| 8 | BS1 | I | Bus Interface selection pin | Note 5-5 |
| 9 | BUSY | O | Busy state output pin | Note 5-4 |
| 10 | RES# | I | Reset signal input. Active Low. | Note 5-3 |
| 11 | D/C# | I | Data /Command control pin | Note 5-2 |
| 12 | CS# | I | Chip select input pin | Note 5- 1 |
| 13 | SCL | I | Serial Clock pin (SPI) | |
| 14 | SDA | I | Serial Data pin (SPI) | |
| 15 | VDDIO | P | Power Supply for interface logic pins It should be connected with VCI | |
| 16 | VCI | P | Power Supply for the chip | |
| 17 | VSS | P | Ground | |
|
18 |
VDD |
C |
Core logic power pin VDD can be regulated internally from VCI. A capacitor should be connected between VDD and VSS | |
| 19 | VPP | P | FOR TEST | |
| 20 | VSH1 | C | Positive Source driving voltage | |
| 21 | VGH | C | Power Supply pin for Positive Gate driving voltage and VSH1 | |
| 22 | VSL | C | Negative Source driving voltage | |
| 23 | VGL | C | Power Supply pin for Negative Gate driving voltage VCOM and VSL | |
| 24 | VCOM | C | VCOM driving voltage | |
Note 5- 1: This pin (CS#) is the chip select input connecting to the MCU. The chip is enabled for MCU
communication only when CS# is pulled Low.
Note 5-2: This pin (D/C#) is Data/Command control pin connecting to the MCU. When the pin is pulled
High, the data will be interpreted as data. When the pin is pulled Low, the data will be interpreted as command.
Note 5-3: This pin (RES#) is reset signal input. The Reset is active low.
Note 5-4: This pin (BUSY) is Busy state output pin. When Busy is Low, the operation of chip should not be
interrupted and any commands should not be issued to the module. The driver IC will put Busy pin Low when the driver IC is working such as:
- 3. Outputtingdisplaywaveform; or
- Communicatingwithdigital temperature sensor
Note 5-5: This pin (BS1) is for 3-line SPI or 4-line SPI selection. When it is “Low”, 4-ine SPI is selected. When it is “High”, 3-line SPI (9 bits SPI) is selected.

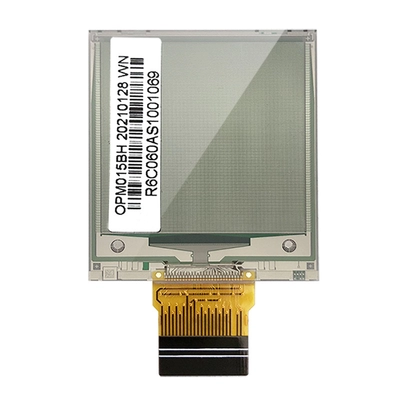

E-ink Display 1.54 inch, EPD 1.54 inch Product Image
