1.77″ LCD Touch Screen Display: Elevating Smart Device Experiences
Unveiling the SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD SF-TC177L-9273A-T LCD touch screen, a groundbreaking 1.77-inch TFT-LCD marvel boasting a resolution of 128×160 pixels (128 horizontally by 160 vertically). This cutting-edge TFT LCD model seamlessly integrates with SPI interface technology. Operating within a voltage range of 2.6V to 3.3V (typical value: 2.8V), this display panel caters to embedded systems, automation, GPS, medical equipment, industrial devices, and security equipment, delivering unparalleled quality and vibrant imagery. The SF-TC177L-9273A-T Resistive touchscreen TFT dazzles with a brightness of 200 cd/m2 (typical value), ensuring clarity in diverse environments, from -20℃ to +70℃, with a storage range spanning from -30℃ to +80℃.
Unveiling the Features:
- Boasting a TN type display, this 1.77-inch TFT LCD ensures optimal viewing at 12 O’clock.
- Designed for SPI interface, this display offers customizable options for MCU and RGB interfaces, catering to diverse needs.
- Featuring a QQVGA resolution of 128×160 dots, this 1.77-inch resistive touch screen TFT is tailored for portrait/vertical display.
- Powered by the ILI9163C and compatible with ST7735, this TFT screen guarantees seamless control and integration.
- Operating flawlessly within a temperature range of -20℃ to +70℃, this LCD touch screen redefines reliability and performance.
| Product: | 1.77″ Inch Resistive LCD Touch Screen |
| Resolution: | 128×160 Pixels |
| Interface: | SPI (can Be Customized) |
| Driver IC: | ILI9163C |
| Cover Glass Dimension: | Customizable |
| Pin Number: | 18 Pins ( Customizable ) |
| Outline Dim.: | 34×42.9×3.55 Mm |
| LED Lifetime: | 40,000 Hours |
| Touch Screen: | With Resistive Touch ( PCAP Optional) |
| Viewing Direction: | 12 O’clock |
| Connection: | Soldering Type (Customizable) |
| Surface Luminance: | 200 Cd/m2(nits) |
| Operating Temp.: | -20℃ To +70℃ |
| Compliance: | REACH & RoHS Compliant |
1.77″ LCD Touch Screen Display 128×160 TN Panel For Smart Devices Product Drawing
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1 | GND | I | Ground |
| 2 | LED- | O | LED Cathode |
| 3 | LED+ | O | LED Anode |
| 4 | GND | I | Ground |
| 5Â | RESET | I | LCM Reset input signal |
| 6Â | A0 | I | Register select signal |
| 7Â | SDA | I | Display Data input signal |
| 8 | SCK | I | Display Clock input signal |
| 9 | VDDA | I | Power Supply 2.8V Voltage |
| 10 | VDDIO | I | Power Supply 2.8V/1.8V Voltage |
| 11 | CS | I | Input pin for chip selection signal |
| 12 | GND | I | Ground |
| 13 | YD | I | Touch Panel input signal |
| 14 | XL | I | Touch Panel input signal |
| 15 | YU | I | Touch Panel input signal |
| 16 | XR | I | Touch Panel input signal |
| 17 | GND | I | Ground |
| 18 | GND | I | Ground |
| Â | Â |

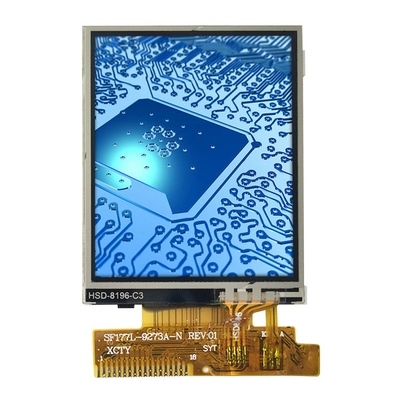

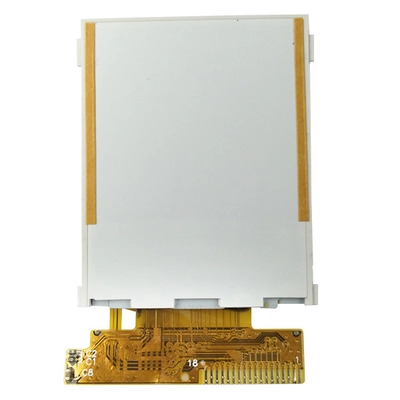

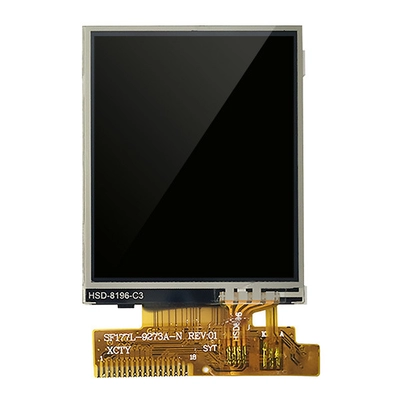

1.77″ LCD Touch Screen Display 128×160 TN Panel For Smart Devices Product Image
