Description
128×64 Graphic LCD Display FSTN Positive COG 3.3V SPI Interface With White Backlight
128×64 FSTN LCM LCD Display
The SF-12864-205A3 by ShenZhen Techstar Electronics Incorporated Co., Ltd is a monochrome graphic LCD module with a resolution of 128×64 pixels. This module, identified as the SF-12864-205A3 model, incorporates the ST7565R controller or an equivalent IC, facilitating communication through the SPI serial interface.
Operated at a typical supply voltage of 3.3V, the SF-12864-205A3 features a white LED backlight for enhanced visibility. Utilizing FSTN Transflective Positive technology, it offers reliable performance across a temperature range of -10℃ to +60℃, with storage temperatures spanning from -20℃ to +70℃. While the module comes standard without touch functionality, it can be customized to include a touch panel.
The SF-12864-205A3 module finds widespread applications in various industries, including metering and instrumentation, remote control systems, sensor devices, POS terminals, cash readers, handheld devices, mobile food ordering machines, medical analyzers, and more.
Quality Management
Quality Commitment
Our commitment rests in providing impeccable quality while ensuring timely delivery.
We strive for perpetual enhancement to meet and surpass customer expectations.
Environmental Health and Safety (EHS) Commitment
Compliance with legal stipulations and proactive measures to prevent and mitigate pollution remain paramount.
Efforts are dedicated to minimizing emissions, optimizing resource utilization, and fostering environmental consciousness.
Continuous enhancement of our environmental footprint is integral to our ethos.
Implementation Strategies
Transparency in our quality policy dissemination is ensured, bolstering employee engagement through comprehensive training initiatives.
Adopting the ‘5S’ methodology, we maintain organized and efficient workspaces, fostering a culture of preparedness among our workforce.
Stringent adherence to the ISO9001 quality assurance system is upheld across all facets of product and service delivery, integrated seamlessly into standardized protocols.
With unwavering commitment to quality assurance, we optimize production costs by streamlining raw material expenditures and refining operational efficacy.
| Product: | FSTN 12864 LCD |
| Resolution: | 128×64 Graphics |
| LCD Type: | FSTN,Transflective,Positive |
| Optics: | 6:00 |
| Outline Dim.: | 32.5(L)*24(W)*3(H) Mm |
| Driving Method: | 1/64 Duty Cycle, 1/9 Bias |
| Operating Temp: | -10°C To +60°C ( Customizable ) |

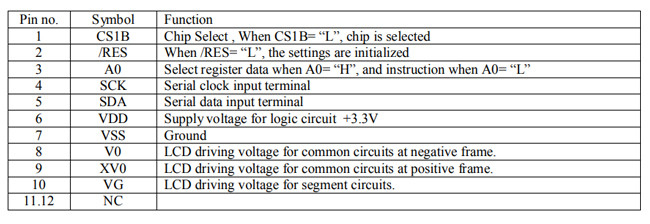

| Pin Number: | 12 Pins |
| Controller: | ST7565R Or Equivalent |
| Interface: | SPI |
| Connector: | FPCÂ ( Customizable ) |
| Compliance: | REACH & RoHS Compliant |

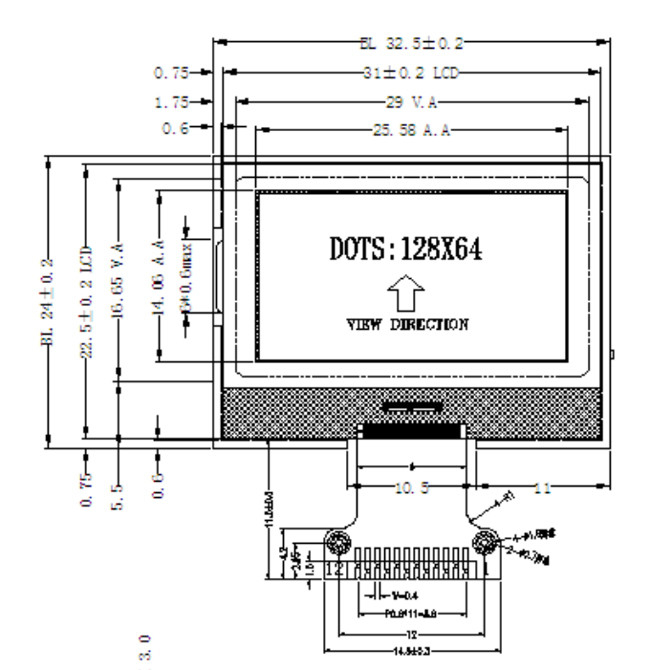

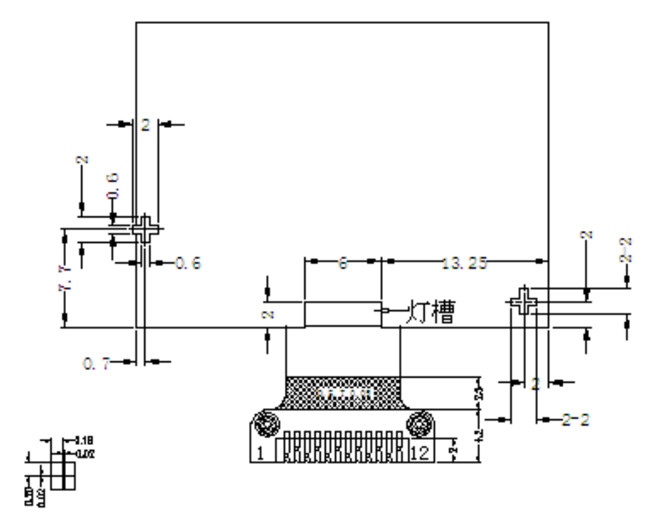

FSTN 128×64 LCM, 12864 LCD Display DrawingÂ

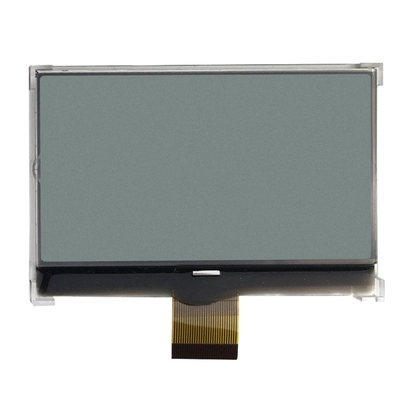

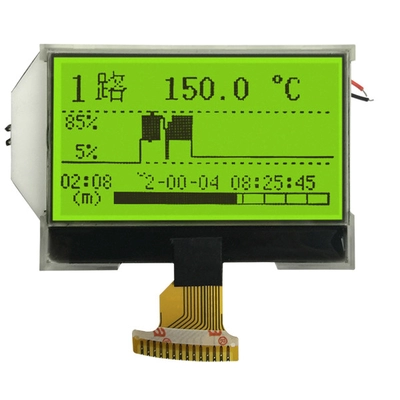

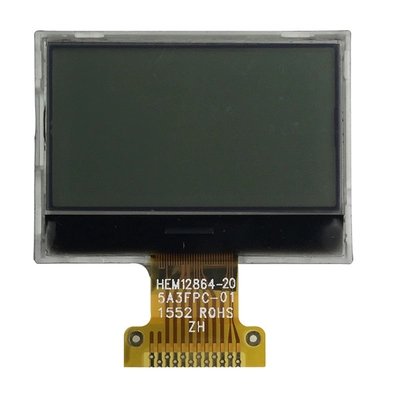

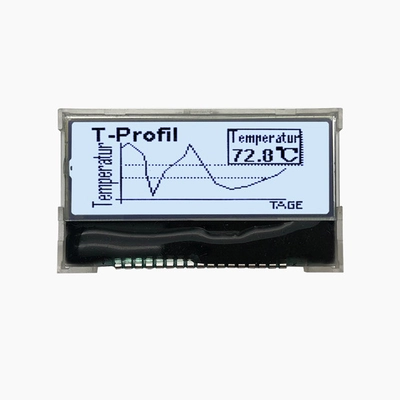

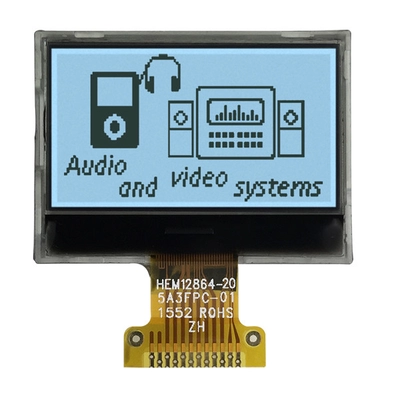

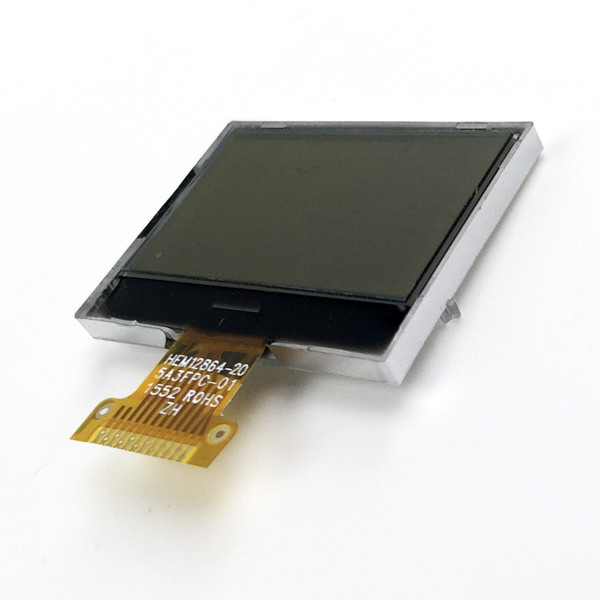

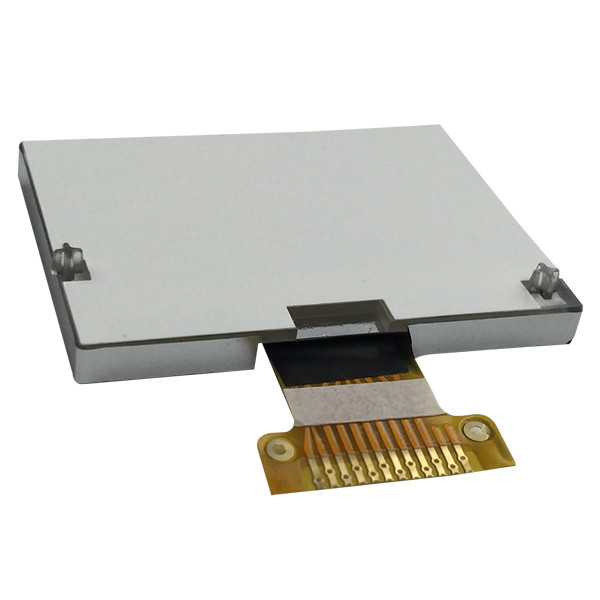

FSTN 128×64 LCM, 12864 LCD Display Real Product Image
