Graphic FSTN LCD Display Module 160×160 Dots Positive ST75161 3.3V VDD SPI Interface

——————–

short description

Description

COG 160×160 Graphic FSTN LCD Display Module with Positive ST75161, 3.3V VDD, and SPI Interface Featuring White LED Backlight

160×160 LCD Graphic SPI Display

The SF-160160-52 by ShenZhen Techstar Electronics Incorporated Co., Ltd stands as a monochrome graphic display, presenting a 160×160 resolution COG LCD module. Embedded within is the ST75161 controller or an equivalent IC, facilitating seamless communication through an SPI serial interface. Operating at a typical voltage of 3.3V, this SF-160160-52 graphic LCD module boasts a white side LED backlight for enhanced visibility.

Characterized by its FSTN Transflective Positive mode, the SF-160160-52 is designed to withstand temperatures ranging from -40℃ to +70℃ during operation, with storage temperatures extending from -40℃ to +80℃. While initially devoid of touch functionality, customization options for a touch panel are available. The versatility of the SF-160160-52 module finds applications across various industries, including meters and instruments, remote controllers, sensor devices, POS terminals, cash readers, handheld devices, mobile food ordering machines, medical analyzers, and more.

Why Opt for Us

Tailored LCD Display Solutions

Does your product demand unique application specifications, electrical or optical requirements, touch functionalities, or mechanical dimensions necessitating customized displays? TECHSTAR is primed to fulfill your bespoke LCD needs.

Comprehensive Touch Screen and Display Solutions

Concerned about integrating touch screens and display panels seamlessly? TECHSTAR offers tailored and standard touch screens, encompassing Resistive and Capacitive multi-touch solutions, along with air & optical bonding services.

Dedication to Quality Assurance

TECHSTAR holds accreditation under ISO9001:2015 and ISO14000, adhering to global environmental regulations such as RoHS and REACH. Our commitment to quality is fortified through meticulous manufacturing processes encompassing IQC, PQC, and OQC management, coupled with reliability and aging tests.

Sustainable Long-Term Supply

Typically, our recommended products boast a supply lifespan exceeding 5 years. For specialized requirements, proactive measures are taken to ensure sustained supply continuity, offering you peace of mind.

Product Features

Product: COG FSTN 160×160 LCD Module
Resolution: 160×160 Graphics
LCD Type: FSTN, Positive, Transflective
Optics: 6:00 O’clock
Outline Dim.: 82.2(L) X 76.0(W) X 9(T) mm
Viewing Area: 60.0(L) X 60.0(W) mm
Dot Pitch: 0.34(L) X 0.34mm Mm
Driving Method: 1/160 Duty Cycle, 1/11 Bias
Operating Temp: -40°C To +70°C
Pin Number: 9 Pins
Controller: ST75151 Or Equivalent
Interface: 4 Wires SPI
Connector: Metal Pin
Compliance: REACH & RoHS Compliant

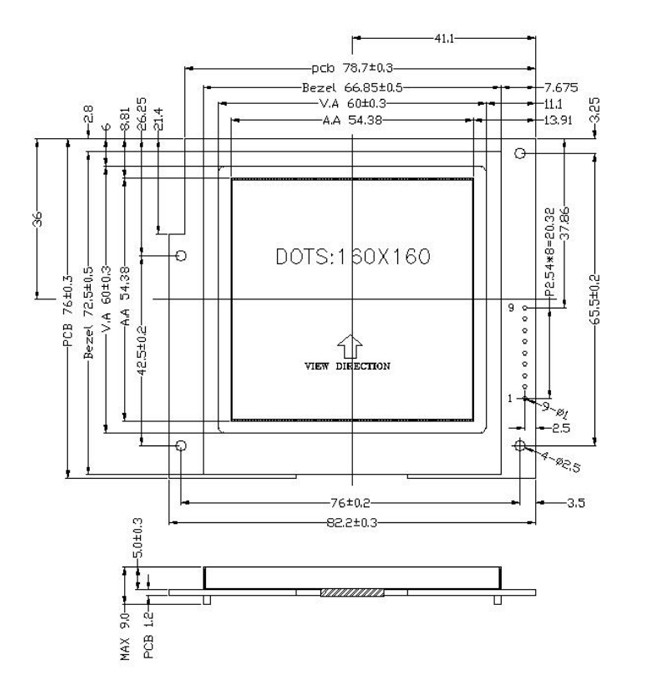

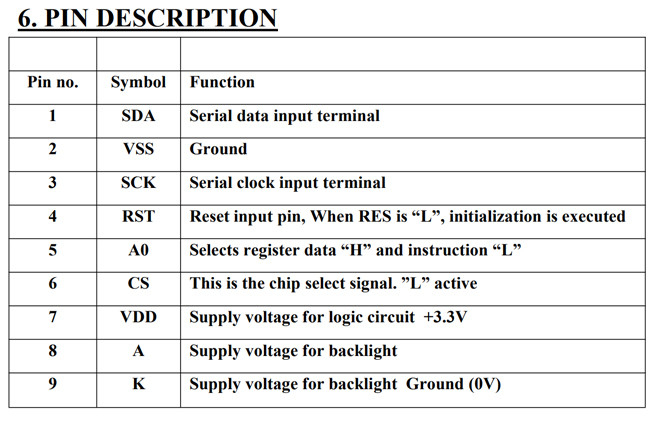

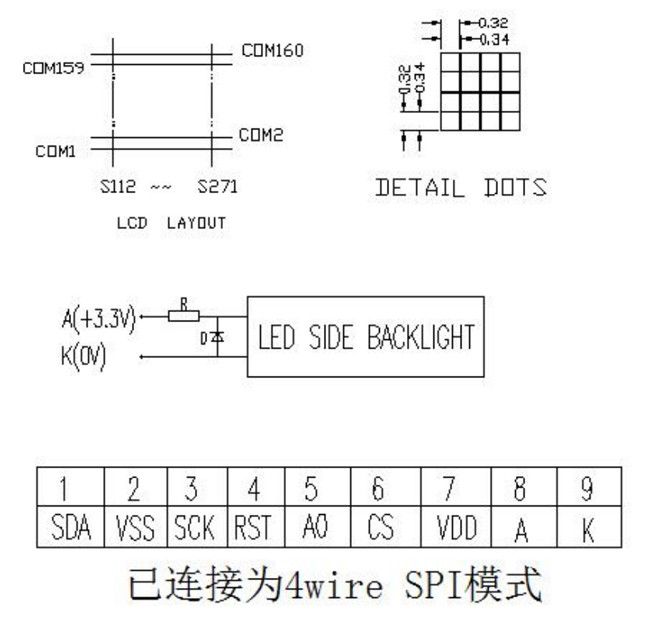

160×160 STN Graphic LCD, Graphic LCD 160×160 SPI Display Product Drawing

160x160 Graphic FSTN LCD Display Module Positive ST75161 3.3V VDD SPI Interface 0

160x160 Graphic FSTN LCD Display Module Positive ST75161 3.3V VDD SPI Interface 1



160x160 Graphic FSTN LCD Display Module Positive ST75161 3.3V VDD SPI Interface 2

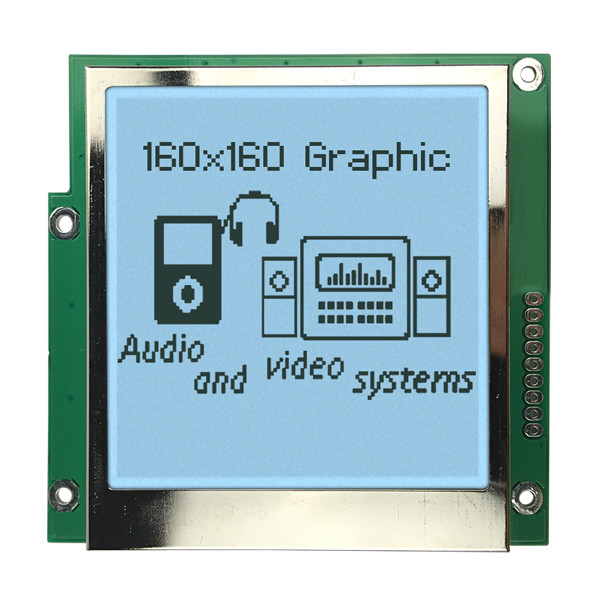

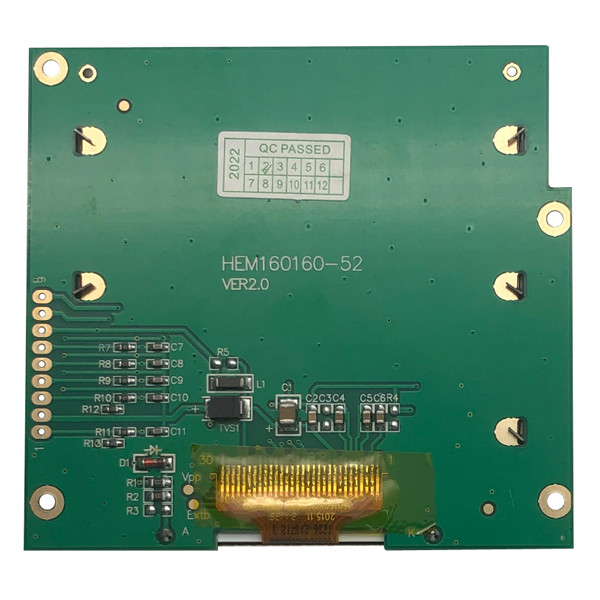

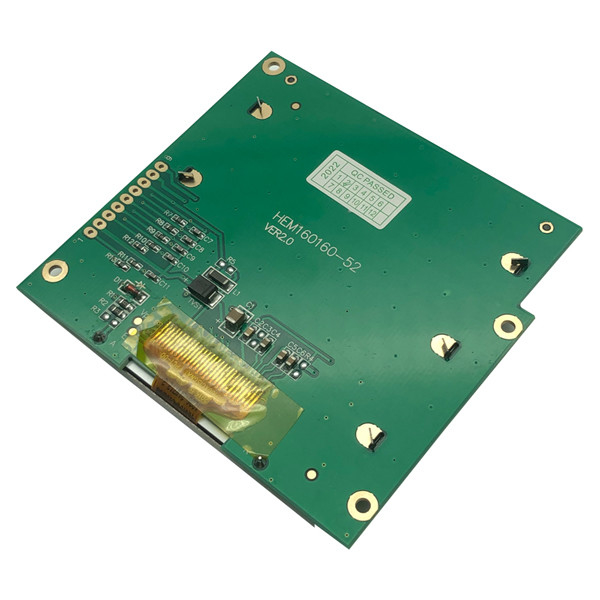

160×160 STN Graphic LCD, Graphic LCD 160×160 SPI Display Product Image

160x160 Graphic FSTN LCD Display Module Positive ST75161 3.3V VDD SPI Interface 3160x160 Graphic FSTN LCD Display Module Positive ST75161 3.3V VDD SPI Interface 4

160x160 Graphic FSTN LCD Display Module Positive ST75161 3.3V VDD SPI Interface 5

Additional information

Place of Origin

ShenZhen / China

Brand

ShenZhen Techstar Electronics

Model

SF160160HE52

Certification

ISO9001 / ISO14000

Minimum Order Quantity

3 pcs

Price

USD7.xx Reference price, Price is negotiable based on order lot quantity

Packaging Details

Standard Exportation Package

Delivery Time

3-5 weeks

Payment Method

L/C, T/T, Western Union

Supply Ability

3000K pcs per month
