Graphic LCD Manufacturer China 128×32 Dots COG Graphic LCD Display ST7565R IC SPI Interface

Monochrome Graphic LCD Display: 128×32 Pixel COG with ST7565R IC and SPI Interface

The ShenZhen Techstar Electronics Incorporated Co., Ltd SF-12832-156 presents a monochrome graphic LCD module featuring a resolution of 128×32 pixels. The SF-12832-156 variant integrates an ST7565R controller or its equivalent IC, facilitating a 4-line SPI serial interface for seamless connectivity.

Operating with a typical supply voltage of 3.3V, this SF-12832-156 graphic display LCD 128×32 module boasts a white LED backlight. Its display mode is FSTN Transflective Positive, ensuring clear visibility in various lighting conditions.

Designed to withstand a wide range of temperatures, this model of graphic LCD display functions reliably between -20℃ to +70℃, with storage temperatures ranging from -30℃ to +80℃. While initially devoid of a touch panel, customization options are available to incorporate one.

Quick Product Overview:

• Display Type: Graphic Monochrome LCD Module
• Resolution: 128×32 Pixels
• Viewing Angle: 6:00
• Dimensions: 41.4×24.3×4.0mm
• Driver IC: ST7565R
• Interface: 4-line SPI
• Temperature Range: Operating -20°C to +70°C; Storage -30°C to +80°C
• Touch Panel: Touch Panel Not Included (Customizable)
• Widely utilized in metering and instrumentation, remote control systems, sensor devices, POS terminals, cash readers, handheld devices, mobile food ordering machines, medical analyzers, and more.

Why Opt for Our Services

• Tailored LCD Display Solutions

Does your product demand unique specifications, whether electrical, optical, touch-enabled, or mechanical? SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD specializes in meeting your custom LCD needs.

• Comprehensive Touch Screen and Display Solutions

Concerned about integrating touch screen and display functionalities seamlessly? SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD offers bespoke and standard touch screen solutions, including Resistive and Capacitive multi-touch options, along with air & optical bonding services.

• Dedication to Quality and Reliability

SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD holds certifications under ISO9001:2015 and ISO14000, ensuring compliance with global environmental regulations like RoHS and REACH. Our commitment to quality is reinforced through rigorous manufacturing management, including IQC, PQC, and OQC protocols, as well as reliability and aging testing.

• Reliable Long-term Supply

Count on us for continuous product availability for over 5 years under normal circumstances. We proactively devise alternative strategies to meet any special supply requirements.

FAQ:

Q1. Can I request a sample order?

A: Absolutely, we encourage sample orders for quality testing. We accept mixed samples of various item numbers.

Q2. What are the lead times?

A: For off-the-shelf products, in-stock samples are available immediately. Sample remaking takes 1-1.5 weeks, while mass production requires 4-6 weeks. For design-in products, expect 2-3 days for counter drawing proposals, 2 weeks for sample making upon drawing approval, and 5-6 weeks for trial-run/mass production post sample approval.

Q3. Are there any MOQ limits for sample and production orders?

A: Our MOQ is flexible. Sample checking requires only 3-5 pieces, while mass production typically starts at 1K/lot. We also support quantities lower than the standard MOQ for trial-run/PP-run orders.

Q4. What are the shipping options and durations?

A: We ship via DHL, UPS, FedEx, or TNT, with delivery taking 5-7 days. Airline and sea shipping are also available alternatives.

Q5. How do I place an order for an LCD module?

A: Begin by sharing your requirements or application specifics with us.

Next, we’ll provide a quote based on your requirements or our recommendations.

Upon confirmation of samples by the customer and placement of a deposit for a formal order, we proceed with production.

Q6. Can I have my logo printed on the LCD product?

A: Certainly. Please inform us during the design stage, and we’ll create samples featuring your logo for testing and approval. Once approved, mass production will commence following the finalized samples.

Q7: Do you provide product guarantees?

A: Yes, we offer a 1-year warranty on our products.

Q8: How do you handle faulty products?

A: Firstly, our products undergo strict quality control, ensuring a defective rate of less than 0.2%.

During the warranty period, we’ll replace faulty LCDs with new orders for small quantities. For defective batch products, we’ll repair or replace them based on the real situation, including possible recalls.

Secondly, during the guarantee period, we will send new LCDs with new orders for small quantities. For defective batch products, we offer repair services and arrange for replacements to be sent to you. We are also open to discussing alternative solutions based on the specific circumstances.

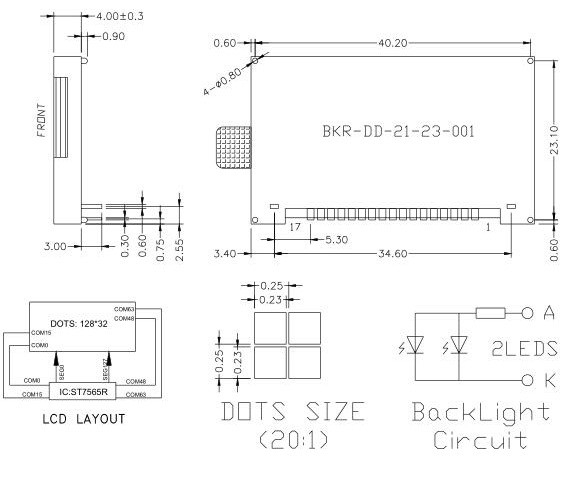

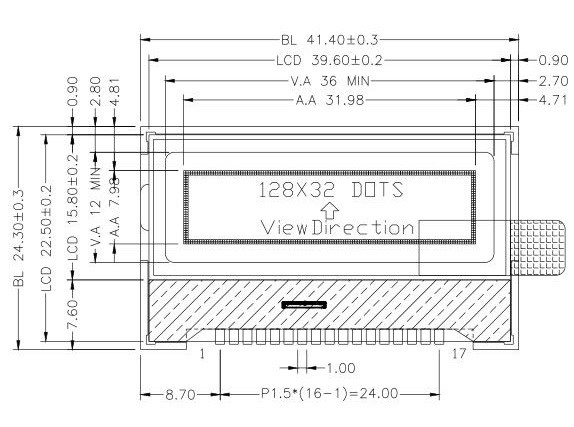

128×32 Graphic type Monochrome LCD Drawing

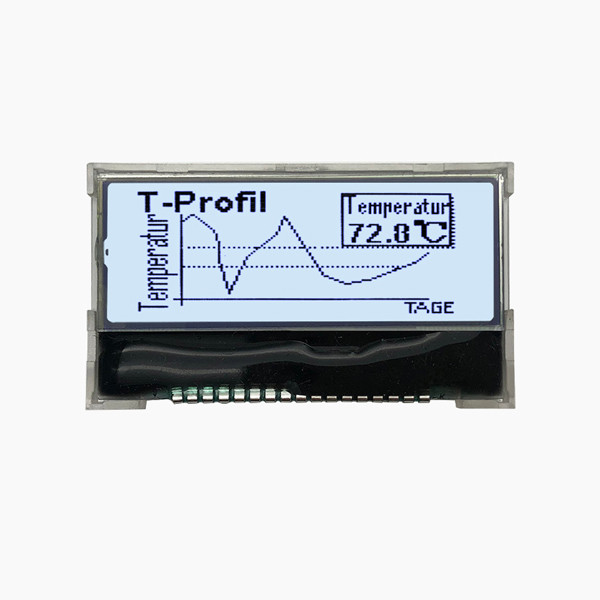

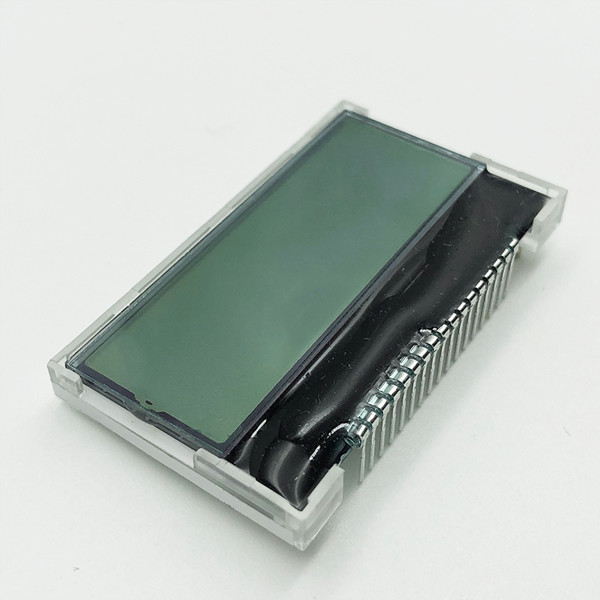

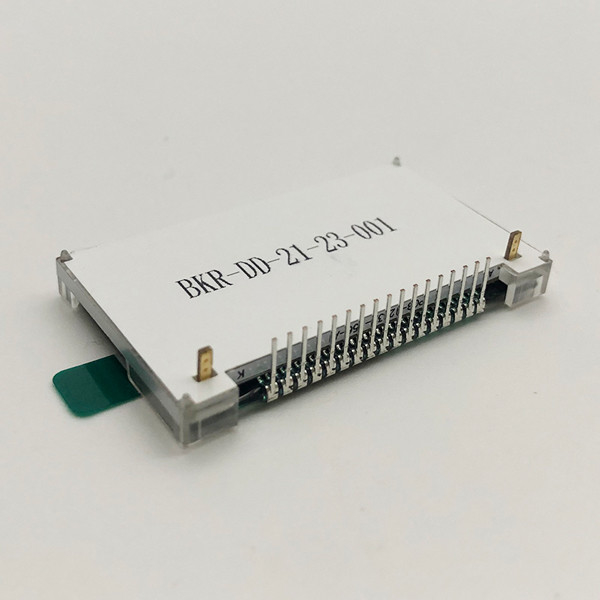

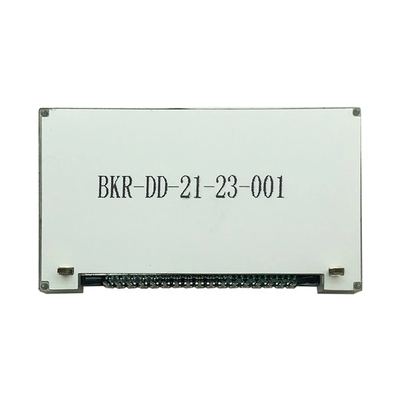

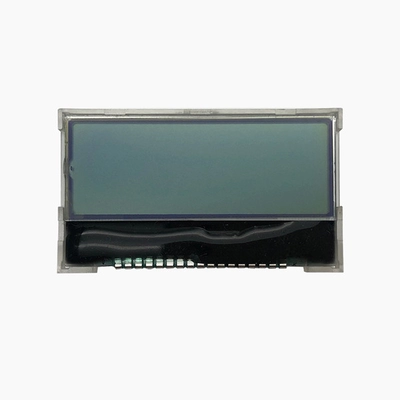

128×32 Graphic type Monochrome LCD Real Product Image
