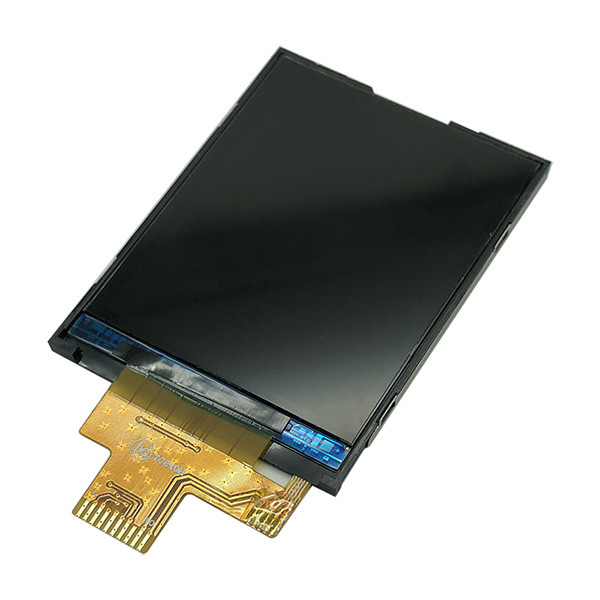

Unveiling the Industrial TFT Display: 2.4″ Inch ST7789V SPI 240×320 Portrait, Perfect for Testing Equipment and Instrumentation
Introducing the SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD  SF-TC240H-8952B-N, a dynamic 2.4-inch vertical (portrait) TFT module boasting an active matrix and transmissive mode. With a resolution of 240×320 pixels, this TFT display module is powered by the ST7789V controller IC, seamlessly interfacing via SPI. Emitting at a brightness of 300 cd/m2 and offering a contrast ratio of 500:1, it ensures vibrant visuals. Operating temperatures ranging from -20~+70℃ and a storage temperature range of -30~+80℃ guarantee reliability in diverse environments.
Versatility is key with the SF-TC240H-8952B-N, making it an ideal choice for industrial applications, including testing equipment, automation, medical devices, and security systems. The LCD panel’s supply voltage (VCC) ranges from 2.6V to 3.3V, with a typical value of 2.8V. Notably, the SF-TC240H-8952B-N is a TN type TFT, delivering a brightness of 300 cd/m2 (typical value), but with the potential for customization to achieve an impressive 1000 nits. For further insights, reach out to our sales team.
| Product: | 2.4″ Inch Industrial TFT Display |
| Resolution: | 240×320 Vertical/portrait |
| Driver IC: | ST7789V Or Equivalent |
| Touch Screen: | Resistive Touch And PCAP Optional |
| Cover Glass Dimension: | Customizable |
| Interface: | SPI (can Be Customized) |
| Pin Number: | 10 Pins (Customizable) |
| Outline Dim.: | 42.72×60.26×2.5 mm |
| Viewing Direction: | 12 O’clock |
| Connection: | Plug In (Customizable) |
| Surface Luminance: | 300 Cd/m2(nits) |
| Operating Temp.: | -20℃ To +70℃ |
| LED Lifetime: | 40,000 Hours |
| Compliance: | REACH & RoHS Compliant |

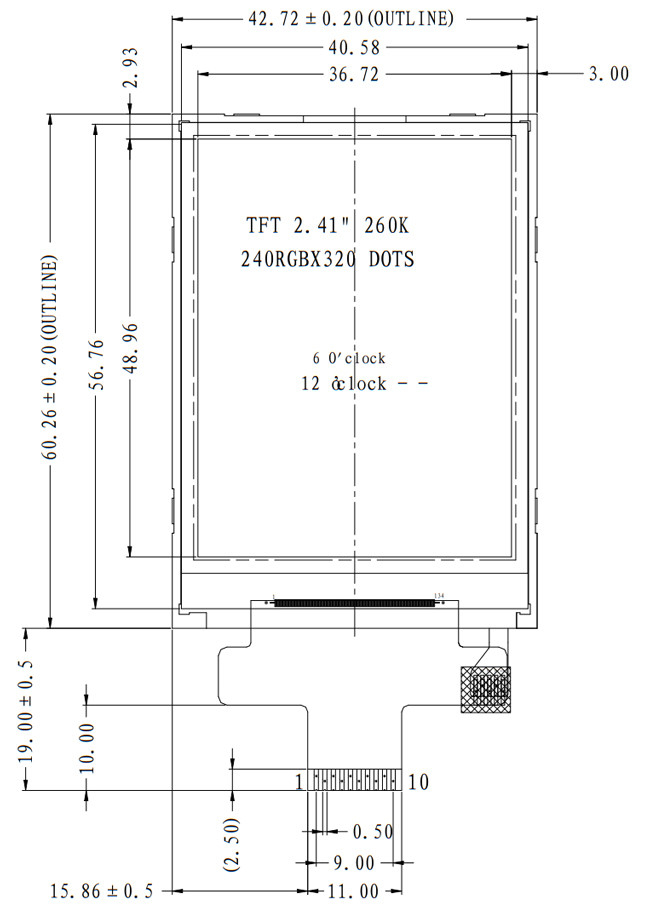

2.4″ Inch TFT LCD ST7789V SPI 240×320 Portrait Display Product Drawing
Interface Pin Definition
| NO. | PIN | I/O | Description |
| 1 | GND | I | System Ground |
| 2 | RST | I | LCM Reset input signal |
| 3 | SCL | I | This pin is used to be serial interface clock. |
| 4 | D/C | I | Display data/command selection pin in 4-line serial interface. |
| 5 | CS | I | -Chip selection pin |
| 6 | SDA | I | SPI interface input pin. |
| 7 | SDO | I | SPI interface output pin. |
| 8 | VCC | I | Power Supply 2.8V Voltage |
| 9 | A | O | LED Anode |
| 10 | K | O | LED Cathode |
DC Characteristics (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test condition |
| Operating voltage | VDD | 2.6 | 2.8 | 3.3 | V | – |
| Supply current | IDD | – | 12 | 15 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | – | VDD | V | – |
| VIL | 0 | – | 0.2VDD | V | ||
| Input leakage current | IIL | -1.0 | – | 1.0 | mA | VIN=VDD or VSS |
Backlight Electrical-optical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT | Test
Condition |
Note |
| Supply Voltage | Vf | – | 3.2 | – | V | If=80MA | – |
| Supply Current | If | – | 80 | mA | – | – | |
| Reverse Voltage | Vr | – | – | 5 | V | – | |
| Power dissipation | Pd | – | 256 | – | mW | – | |
| Luminous Intensity for LCM | Â
– |
– | 300 | – | Cd/m2 | If=80MA | Without CTP |
| Uniformity for LCM | – | 80 | – | – | ï¼… | Â Â If=80MA | – |
| Backlight Color | White | ||||||
| Â | |||||||

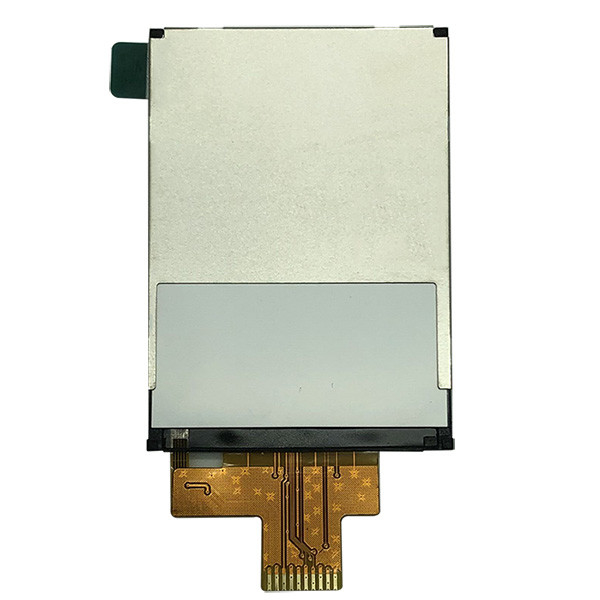

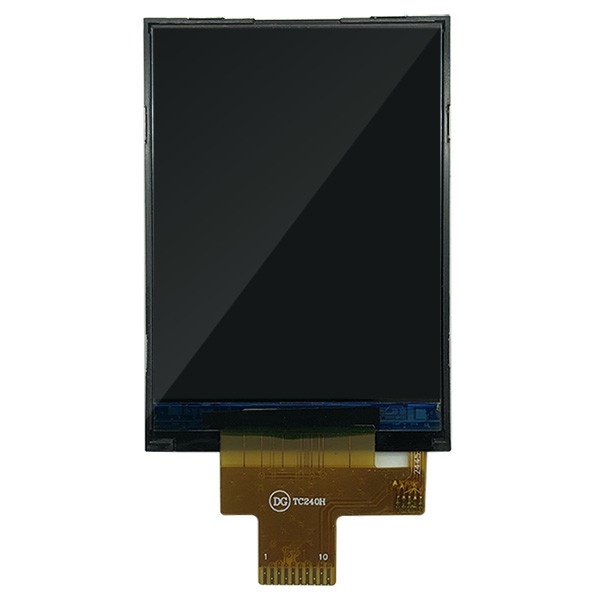

2.4″ Inch TFT LCD ST7789V SPI 240×320 Portrait Display Product ImageÂ
Reliability Test
| Item | Condition | Time (hrs) | Assessment |
| High temp. Storage | 80°C | 120 |
No abnormalities in functions and appearance |
| High temp. Operating | 70°C | 120 | |
| Low temp. Storage | -30°C | 120 | |
| Low temp. Operating | -20°C | 120 | |
| Humidity | 60°C/ 90%RH | 120 | |
| Thermal Shock Temp. Cycle | -20°C ¬ 25°C ®70°C
(0.5 hour ¬ 5 min ® 0.5 hour) |
10cycles | |
Projected Capacitive (PCAP) touch
Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. Techstar’s projected capacitive touch screen is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.
