Description
Unveiling the SF-TC200L-8653C-N – a 2.0-inch TFT-LCD spectacle boasting a resplendent 240×320 resolution (240 pixels horizontally and 320 pixels vertically). This model dances with the SPI+RGB interface, and the driving force for its LCD panel oscillates between 2.6V and 3.3V.
Dive into the essence of SF-TC200L-8653C-N, a TN-type TFT with a beguiling 12:00 viewing angle, radiating with a luminous 250 cd/m2 (a quintessential benchmark). It gracefully weathers temperatures ranging from a chilly -20℃ to a toasty +70℃ during operation, with storage extending from -30℃ to +80℃.
Let’s glean the specifics with a rapid-fire round:
- LCD Size: Behold the 2.0” TFT magnificence.
- Resolution: A canvas of 240×320 pixels.
- Viewing Angle: An impeccable 12 O’clock orientation.
- Outline Dimension: An elegant frame measuring 538.552.052.95mm.
- Driver IC: The maestro behind the scenes – ST7789V.
- Interface Type: SPI+RGB – a seamless connection dance.
- Touch Panel: A canvas untainted by touch, yet customizable for the discerning.
- Temperature: Endurance defined – from a frosty -20°C to a balmy +70°C (Top) and storage spanning from -30°C to +80°C (Tst).
Customer Service Commitment
Before formalizing an agreement with our valued customers, we engage in a comprehensive analysis, leveraging project information to propose professional solutions tailored to their needs.
Expect a prompt response within 24 hours to any inquiries regarding our products or pricing.
Stay informed about your product’s production process and, if needed, facilitate quality checks at our factory.
Enjoy a one-year warranty on our LCD displays post-delivery. Any defects can be promptly returned and replaced within the warranty period.
Take advantage of our offer to dispatch a technician to our factory for complimentary training before the scheduled delivery.
Our primary focus is on creating value for our customers. We provide essential technical and commercial support through conference calls, online technical services, on-site local assistance, and more, tailored to meet diverse customer needs.
Product Features
| Product: | 2.0″ Inch TFT |
|---|---|
| Touch Screen: | Without TP(Customizable) |
| Resolution: | 240×320 |
| Viewing Direction: | 12 O’clock |
| Interface: | SPI+RGB |
| Pin Number: | 51 Pins |
| Connection: | Plugging (customizable) |
| Surface Luminance: | 250 Cd/m2 |
| Operating Temp.: | -20℃ To +70℃ |
| Compliance: | REACH & RoHS Compliant |

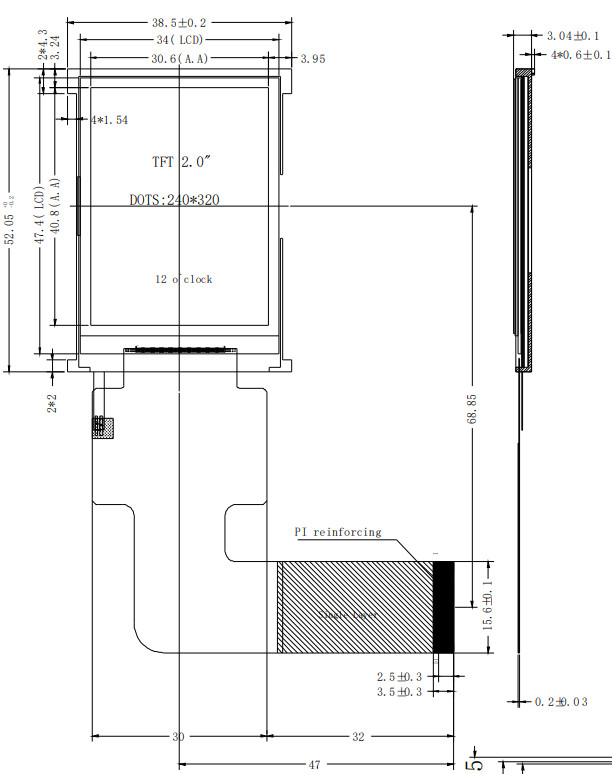

2 inch TFT LCD Display 240×320 Dots SPI Interface Product Drawing
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1-2 | LEDA | I | LED Anode |
| 3 | NC | – | – |
| 4-6 | LEDK | I | LED Cathode |
| 7-8 | GND | I | Ground |
| 9 | FMARK | I | Tearing effect output pin |
| 10-11 | GND | I | Ground |
| 12 | RESET | I | LCM Reset input signal |
| 13 | CS | I | Input pin for chip selection signal |
| 14 | SCL | I | SPI Clock Signal |
| 15 | VSYNC | I | Vertical Synchronizing Signal |
| 16 | HSYNC | I | Horizontal Synchronizing Signal |
| 17 | ENABLE | I | Input Data enable control |
| 18 | DOTCLK | I | Clock Signal to Sample each date |
| 19-20 | GND | I | Ground |
| 21-26 | R5-R0 | I/O | Display Data I/O (R5-R0) |
| 27-28 | GND | I | Ground |
| 29-34 | G5-G0 | I/O | Display Data I/O (G5-G0) |
| 35-36 | GND | I | Ground |
| 37-42 | B5-B0 | I/O | Display Data I/O (B5-B0) |
| 43-44 | GND | I | Ground |
| 45 | SDI | I | SPI Interface Input Pin |
| 46 | SDO | I | Read strobe signal input pin |
| 47-48 | GND | I | Ground |
| 49 | IOVCC | I | Power Supply 2.8V/1.8V Voltage |
| 50-51 | VCC | I | Power Supply 2.8V Voltage |
Maximum Absolute Limit
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | 1.6~3.3 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -20 to 70 | °C |
| Storage temperature | Tstg | -30 to 80 | °C |
DC Characteristics (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test Condition |
| Operating voltage | VDD | * | 2.8 | 3.3 | V | – |
| Supply current | IDD | – | – | 20 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | – | VDD | V | – |
| VIL | 0 | – | 0.2VDD | V | ||
| Input leakage current | IIL | -1.0 | – | 1.0 | mA | VIN=VDD or VSS |
Backlight Electrical-optical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT | Test Condition |
| Supply Voltage | Vf | – | 9.6 | – | V | If=20 mA |
| Supply Current | If | – | 20 | – | mA | – |
| Reverse Voltage | Vr | – | – | 5 | V | – |
| Power dissipation | Pd | – | 192 | – | mW | – |
| Luminous Intensity for LCM |
– |
– | 250 | – | Cd/m2 | If=20mA |
| Uniformity for LCM | – | 80 | – | – | ％ | If=20 mA |

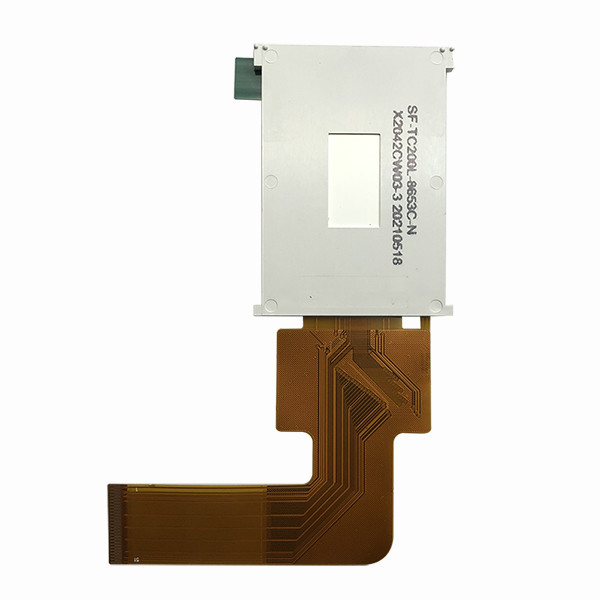

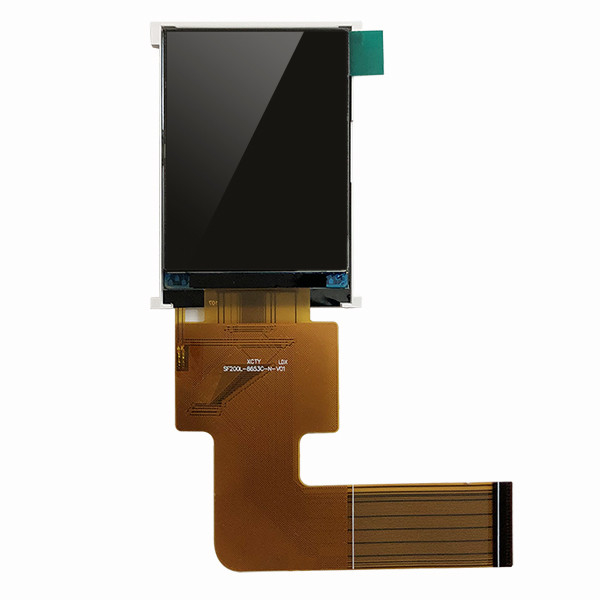

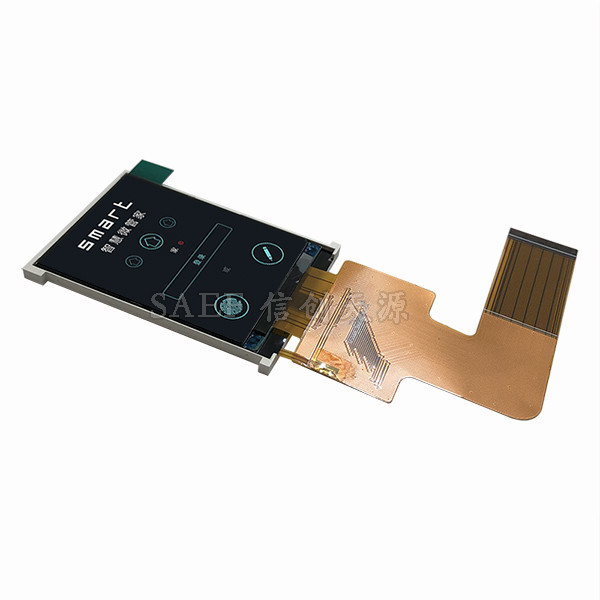

2 inch TFT LCD Display 240×320 Dots SPI Interface Product Image
