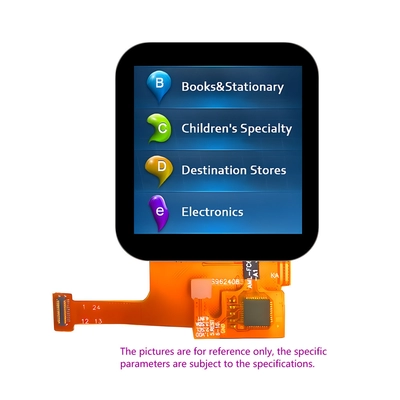

1.54 inch Square TFT Display, 320*320 Pixels – Unveiling Innovative Capacitive Touchscreen Technology
Behold the SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD Technology SF-TC154B-8873A-CT TFT LCD display—a revolutionary 1.54-inch IPS marvel boasting an all-encompassing viewing angle and a stellar resolution of 320×320 pixels. This TFT LCD Display Module, equipped with the formidable ST7796S controller or its equivalent IC, proudly champions the MIPI interface. Operating at a typical voltage of 2.8V, with a Vdd range spanning 2.6V to 3.3V, this high-brightness TFT LCD screen beckons innovation.
The SF-TC154B-8873A-CT is no ordinary display—it embraces a capacitive touch panel with the flexibility of single-touch or multi-touch options. Positioned as a square-mode LCD module, it emanates luminance at 300cd/m2. Should you desire heightened luminance, our technical support team eagerly awaits your inquiries.
Product Information:
| Product: | 1.54 Inch PCAP TFT Display |
| Resolution: | 320×320 |
| Touch Screen: | With Capacitive Touch Screen |
| Viewing Direction: | IPS All Viewing Angles |
| Pin Number: | 12 Pins |
| Driver IC: | ST7796S |
| Connection: | Connector (OK-14GM012-04) |
| Interface: | MIPI |
| Surface Luminance: | 300 Cd/m2 (nits) |
| LED Lifetime: | 40,000 Hours |
| Operating Temperature: | -20 To 70 °C |
| Storage Temperature: | -30 To 80 °C |
| Compliance: | Rohs & Reach Compliant |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
Capacitive Touchscreen 1.54 inch Square TFT Display 320*320 Pixels Drawing
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1 | GND | I/O | Ground |
| 2 | CP | I | DSI-CLK+ clock signals |
| 3 | CN | I/O | DSI-CLK- clock signals |
| 4 | GND | I | Ground |
| 5 | D0P | I | DSI-D0+ clock signals |
| 6 | D0N | I | DSI-D0- clock signals |
| 7 | GND | I/O | Ground |
| 8 | LED+ | I | LED Anode |
| 9 | LED- | I/O | LED Cathode |
| 10 | RESET | I/O | LCM Reset input signal |
| 11 | TE | I | Tearing effect output |
| 12 | VCC | I/O | L Power Supply 2.8V |
