Description
The SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD SF-TO085AS-8980A-N LCD display module is a small, square TFT (Thin Film Transistor) display measuring 0.85 inches diagonally, with a resolution of 128×128 pixels. This display utilizes an IPS (In-Plane Switching) technology for improved color reproduction and viewing angles.
The module consists of the TFT LCD panel itself, a driver circuit, and a backlight unit. With a resolution of 128×128 pixels, it can display up to 65,000 colors, ensuring vibrant and detailed imagery. The physical dimensions of the module are 17.6 x 20.6 x 1.45 mm, with an active display area of 15.20×15.20 mm. It supports an MCU (Microcontroller Unit) interface with 8 bits. The logic supply voltage for the module ranges from 2.4V to 3.3V, ensuring compatibility with a variety of systems. Additionally, the surface luminance is measured at 350 cd/m2 (Nits), providing clear visibility even in brightly lit environments.
The SF-TO085AS-8980A-N model, with its high-quality display and vibrant colors, finds applications in embedded systems, automation, GPS devices, medical equipment, industrial devices, and security equipment where a TFT display with excellent image quality is essential. If specific configurations such as portrait mode or luminance adjustments are required, technical support can be provided upon request.
Product Features:
| Product: | 0.85″ Inch Tiny TFT IPS |
| Driver IC: | NV3023A Or Equivalent |
| Touch Screen: | Without Touch |
| Viewing Direction: | All Viewing Angles IPS |
| Connection: | Soldering Type |
| Surface Luminance: | 350 Cd/m2 (nits) |
| LED Lifetime: | 40,000 Hours |
| Resolution: | 128×128 Pixels |
| Outline Dim.: | 17.6 X 20.6 X 1.45 Mm |
| Cover Glass Dimension: | Customizable |
| Interface: | MCU 8 Bits (customizable) |

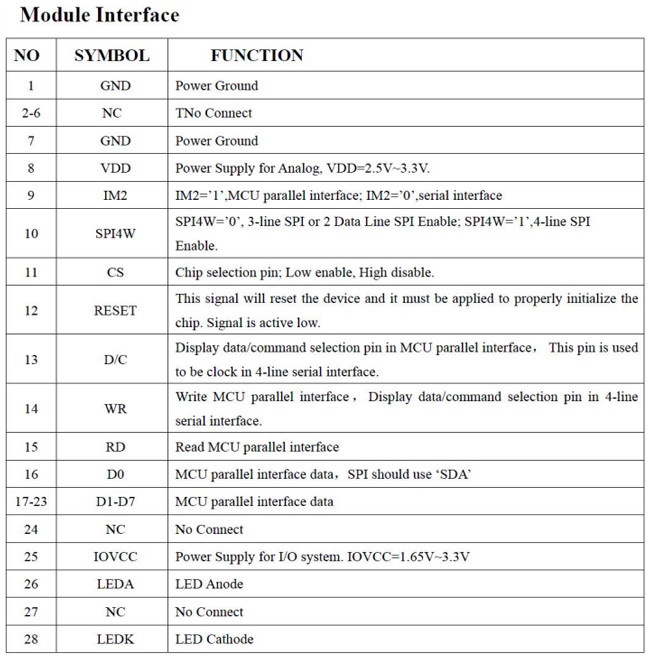

| Pin Number: | 28 Pins (Customizable) |
| Backlight Type: | White LED |
| Compliance: | REACH & RoHS Compliant |

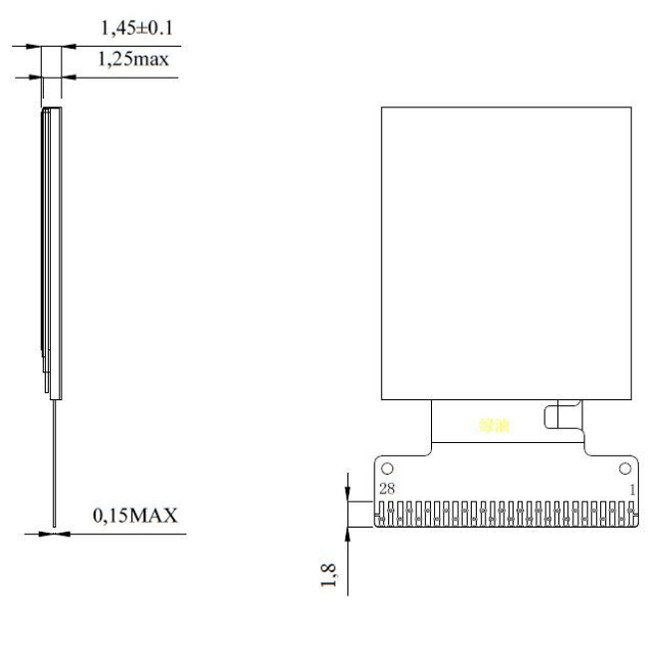

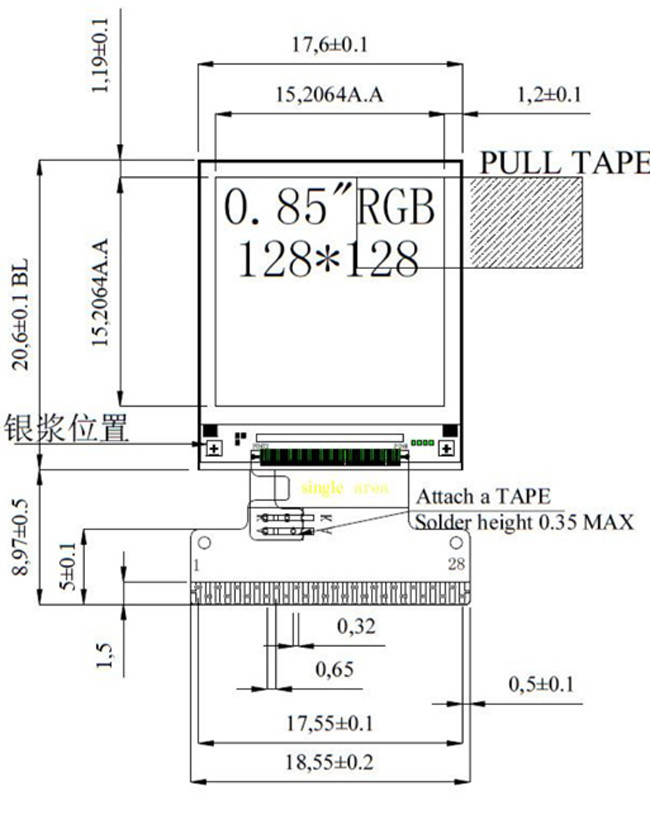

Square TFT LCD 0.85 inch, 0.85-inch 128×128 IPS TFT Display Drawing
DC Characteristics (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test Condition |
| Operating voltage | VDD | 2.4 | 2.8 | 3.3 | V | If=90mA |
| Supply current | IDD | – | 35 | mA | VDD=2.8V,Ta=25°C | |
| Input voltage | VIH | 0.7VDD | – | VDD | V | – |
| VIL | 0 | – | 0.2VDD | V | ||
| Input leakage current | IIL | -1.0 | – | 10 | mA | VIN=VDD or VSS |
Reliability Test
| Item | Condition | Time (hrs) | Assessment |
| High temp. Storage | 80°C | 120 |
No abnormalities in functions and appearance |
| High temp. Operating | 70°C | 120 | |
| Low temp. Storage | -30°C | 120 | |
| Low temp. Operating | -20°C | 120 | |
| Humidity | 60°C/ 90%RH | 120 | |
| Thermal Shock Temp. Cycle | -20°C ¬ 25°C ®70°C
(0.5 hour ¬ 5 min ® 0.5 hour) |
10cycles | |

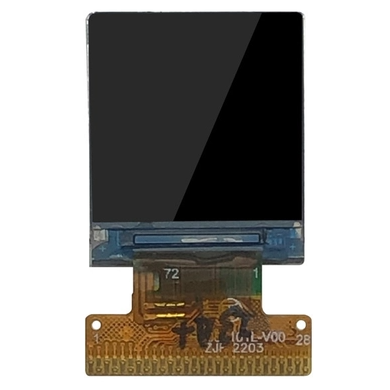

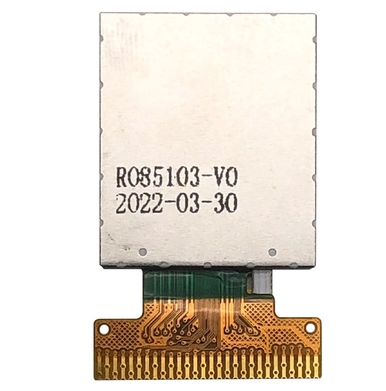

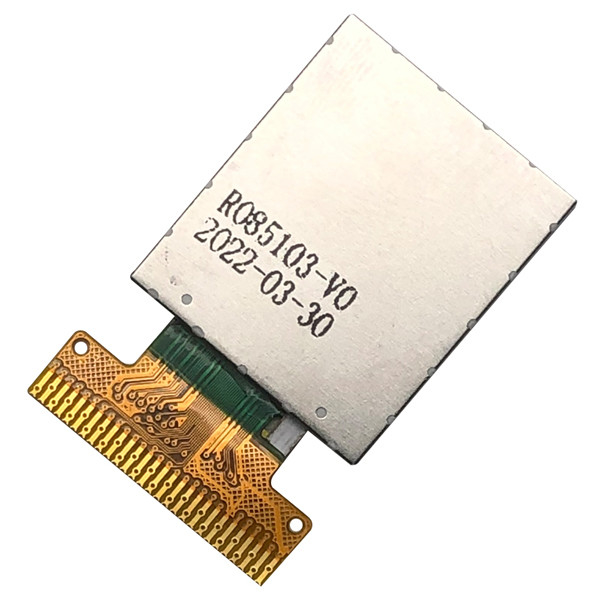

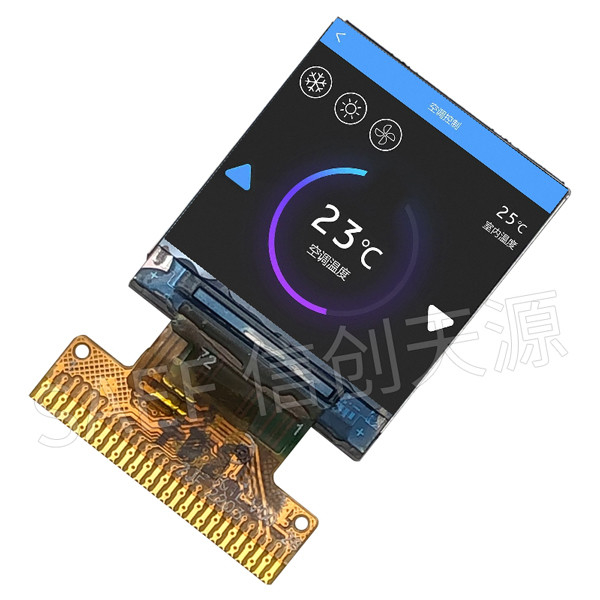

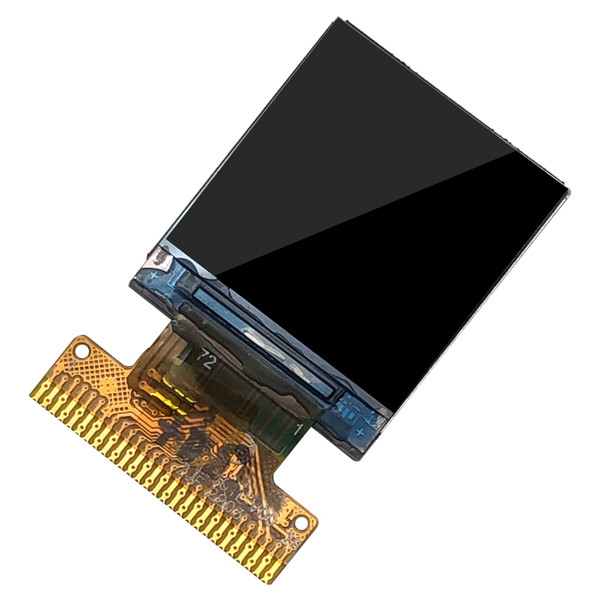

Square TFT LCD 0.85 inch, 0.85-inch 128×128 IPS TFT Display Image
