SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD SF-TC240H-8269B1-T: Unveiling the 2.4″ TFT LCD Display Adventure
Embark on a visual journey with the SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD SF-TC240H-8269B1-T, featuring a mesmerizing 2.4-inch TN type TFT LCD Display boasting a resolution of 240×320 pixels.
Dive into the Technical Landscape:
- LCD Size: 2.4 inches of TFT brilliance
- Resolution: A crisp 240×320 QVGA display
- Viewing Angle: Explore from ALL perspectives
- Outline Dimension: A sleek 60.26x42.72x3.4 mm profile
- LCD Driver IC: Powered by the advanced ST7789V
- LCD Interface Type: Navigate effortlessly with MCU connectivity
- Temperature Range: Endure extremes with Top -20°C to +70°C; Tst -30°C to +80°C resilience
- Touch Panel: Experience tactile interaction with the Resistive Touch Screen (RTP) technology
Unveiling the Marvel: SF-TC240H-8269B1-T TFT LCD Module
Embark on a visual journey with our cutting-edge SF-TC240H-8269B1-T TFT LCD module, a technological masterpiece boasting a 2.4-inch diagonal size and a vibrant 240xRGBx320 QVGA full-color display. What sets it apart? Seamless integration with the SPI interface ensures a smooth user experience.
Dive into the Details:
- Picture-Perfect Dimensions: The SF-TC240H-8269B1-T model stands proud with dimensions of 60.26×42.72 mm and an active area size of 36.72 x 48.96 mm.
- Brains Behind the Beauty: Powered by the ST7789V controller, this marvel operates with a logic supply voltage ranging from 2.6V to 3.3V.
- Adaptable to Any Climate: From a chilly -20℃ to a scorching +70℃, this module thrives. Store it anywhere between -30℃ to +80℃ without breaking a sweat.
- Versatility at its Core: SF-TC240H-8269B1-T boasts a portrait type LCD module, offering a luminance of 250 cd/m2. Need it in landscape mode or craving more brightness? Connect with us for tailored technical support.
Unraveling the Advantages:
- Unmatched Viewing Angles: Enjoy an IPS full viewing angle (80/80/80/80) for diverse applications—whether perched on a table, handheld, or on display.
- Visual Brilliance: Revel in exceptional display performance, from background color and luminance to viewing angle and intensity.
- Industrial and Medical Prowess: Crafted to meet the highest standards, our module excels in both industrial and medical applications.
- Customization Galore: Opt for a resistive touch screen or go without—flexibility is our forte. We go the extra mile, offering customized capacitive touch panels (CTP) and customizable FPC (Flexible Printed Circuit) options.
- Quality that Speaks for Itself: A competitive solution without compromising quality. Trust us; we stand out in the LCD industry.
- Effortless Installation and Maintenance: Easy on the eyes, easy to install, and a breeze to maintain—our module simplifies your experience.
Applications Galore:
This 2.4” TFT LCD module finds its place in remote controls, medical handheld devices, small measuring instruments, analyzers, smartwatches, and various wearable devices.
| Product: | 2.4 Inch TFT Display |
|---|---|
| Touch Screen: | Resistive Touch Panel (Customizable) |
| Resolution: | 240*320 |
| Cover Glass Dimension: | Customizable |
| Viewing Direction: | 12:00 |
| Interface: | MCU (Customizable) |
| Pin Number: | 25 Pins (Customizable) |
| Connection: | Soldering (Customizable) |
| Surface Luminance: | 250 Cd/m2 (Customizable) |
| LED Lifetime: | 40,000 Hours |
| Driver IC: | ST7789V |
| Compliance: | REACH & RoHS Compliant |

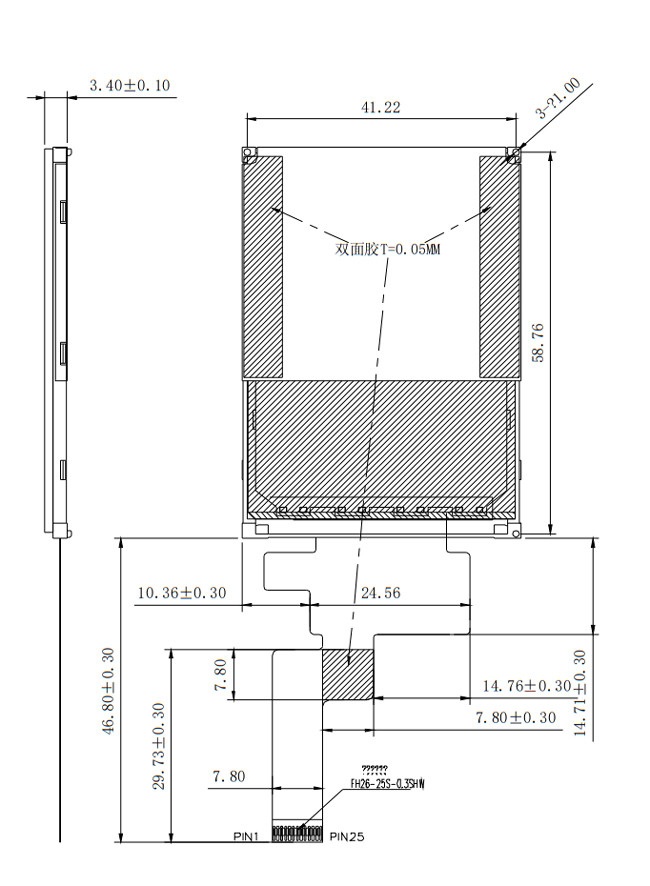

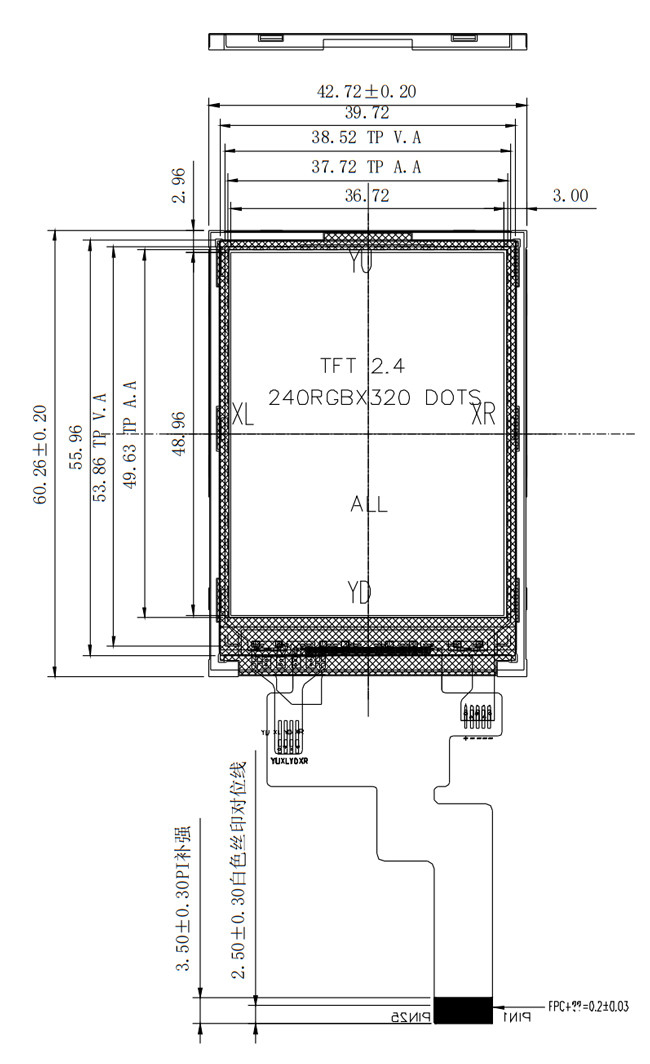

2.4″ inch IPS TFT LCD Display Drawing
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1 | LED_K | O | LED Cathode |
| 2 | LED_A | O | LED Anode |
| 3 | GND | I | Ground |
| 4 | VCC | I | Power Supply 2.8V Voltage |
| 5 | IOVCC | I | Power Supply 2.8V/1.8V Voltage |
| 6 | FMARK | O | Tear effect output pin |
| 7 | /CS | I | Input pin for chip selection signal |
| 8 | RESET | I | LCM Reset input signal |
| 9 | RS | I | Register select signal |
| 10 | /WR | I | Write strobe signal input pin |
| 11 | /RD | I | Read strobe signal input pin |
| 12 | GND | I | Ground |
| 13-20 | DB7-DB0 | I/O | Display Data I/O |
| 21 | GND | I | Ground |
| 22 | XR | O | Touch Panel Pin |
| 23 | YD | O | Touch Panel Pin |
| 24 | XL | O | Touch Panel Pin |
| 25 | YU | O | Touch Panel Pin |
Maximum Absolute Limit
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | 1.6~3.3 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -20 to 70 | °C |
| Storage temperature | Tstg | -30 to 80 | °C |
DC Characteristics (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test condition |
| Operating voltage | VDD | 2.6 | 2.8 | 3.3 | V | – |
| Supply current | IDD | – | – | 5 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | – | VDD | V | – |
| VIL | 0 | – | 0.2VDD | V | ||
| Input leakage current | IIL | -1.0 | – | 1.0 | mA | VIN=VDD or VSS |
Backlight Electrical-optical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT | Test
Condition |
| Supply Voltage | Vf | 3.0 | 3.2 | 3.4 | V | If=80mA |
| Supply Current | If | – | 80 | – | mA | – |
| Reverse Voltage | Vr | – | – | 5 | V | – |
| Power dissipation | Pd | – | – | mW | – | |
| Luminous Intensity |
– |
– | 250 | – | Cd/m2 | If=80mA |
| Uniformity for LCM | – | 80 | – | – | ％ | If=80 mA |
Reliability Test
| Item | Condition | Time (hrs) | Assessment |
| High temp. Storage | 80°C | 120 |
No abnormalities in functions and appearance |
| High temp. Operating | 70°C | 120 | |
| Low temp. Storage | -30°C | 120 | |
| Low temp. Operating | -20°C | 120 | |
| Humidity | 60°C/ 90%RH | 120 | |
| Thermal Shock Temp. Cycle | -20°C ¬ 25°C ®70°C
(0.5 hour ¬ 5 min ® 0.5 hour) |
10cycles | |

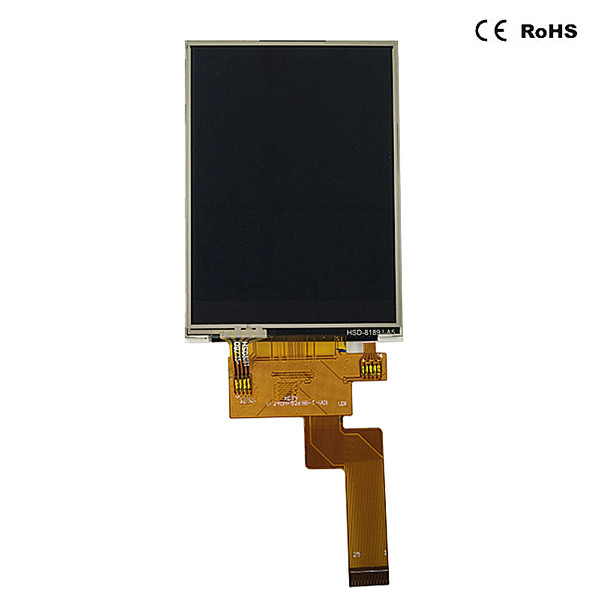

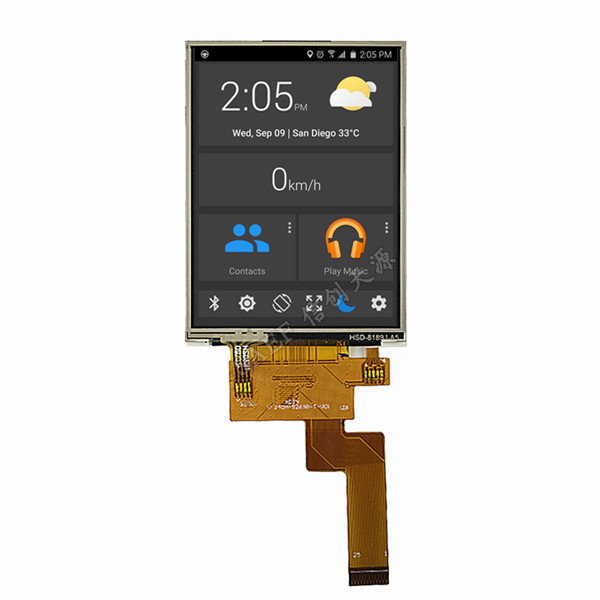

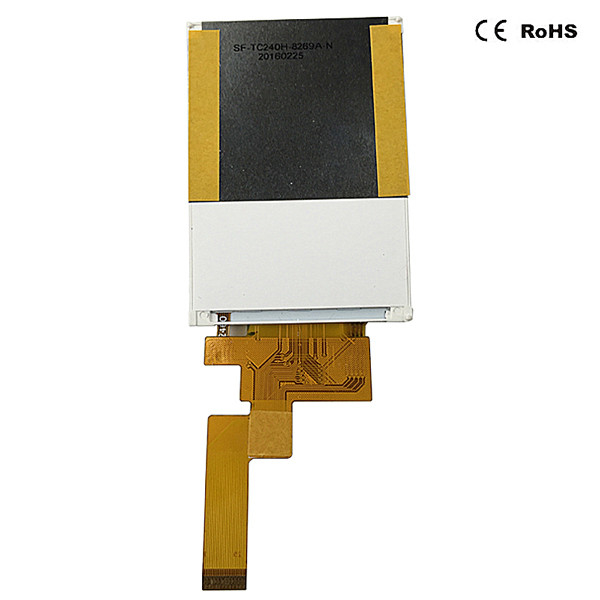

2.4″ inch IPS TFT LCD Display Product Image
