Description
Explore the 2.2 Inch QVGA 240×320 ST7789V RGB 18 Bits Interface 39 Pin LCD Screen at 2.8V
Delving into the 2.2″ QVGA TFT RGB LCD Essence
Insights in Brief:
- TFT Display Size: 2.2” inches
- Resolution: 240×320 dots
- Optimal Viewing Angle: Positioned at 12 O’Clock
- Dimensional Profile: Dimensions stand at 40.656.62.7 mm
- Empowered by Driver IC: ST7789V
- Interface Spectrum: Embodied in RGB Spectrum
- Touch Panel Configuration: Touch Panel Absent (Customization Available)
- Operational Temperature Range: Peaks at Top -20°C to +70°C; Tst -30°C to +80°C
Product Description
Introducing our versatile 2.2” TFT LCD module, a technological marvel tailored for a myriad of applications including black boxes, smart devices, mobile POS systems, cash readers, GPS handheld phones, handheld food ordering machines, signal analyzers, benchtop laboratory equipment, security systems, home automation devices, mini audio players, baby monitors, and more.
Key Features
- Superior Display Performance: Experience unparalleled quality in background color, luminance, viewing angle, and intensity, with surface luminance reaching up to an impressive 1000 nits.
- Industrial and Medical Grade: Engineered to meet the rigorous demands of industrial and medical settings, ensuring reliability and performance excellence.
- Customizable Touch Screen: Choose between resistive touch screen options or opt for a customized capacitive touch panel (CTP) tailored to your specific requirements. Flexible Printed Circuit (FPC) customization is also available.
- Competitive Pricing: Enjoy a competitive pricing structure without compromising on quality, setting a new standard in the LCD industry.
- Ease of Installation and Maintenance: Effortlessly install and maintain our LCD module, simplifying your operational processes.
| Product: | 2.2″ QVGA RGB TFT LCD |
|---|---|
| Resolution: | 240×320 Dots |
| Touch Screen: | Without Touch Screen |
| Viewing Direction: | 12 O’clock |
| Interface: | RGB 18bits |
| Pin Number: | 39 Pins |
| Connection: | Plugging |
| Surface Luminance: | 200 Cd/m2 |
| Operating Temp.: | -20℃ To +70℃ |
| Compliance: | REACH & RoHS Compliant |
2.2 inch QVGA TFT LCD RGB Interface Drawing
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1 | LEDA | O | LED Anode |
| 2 | LEDK | O | LED Cathode |
| 3 | IOVCC | I | Power Supply 2.8V/1.8V Voltage |
| 4 | VDD | I | Power Supply 2.8V Voltage |
| 5 | SDO | I | SPI Interface output Pin |
| 6 | TE | I | Tear effect output pin |
| 7-24 | DB17-DB0 | I/O | Display Data I/O |
| 25 | SDA | I | SPI Interface Input Pin |
| 26 | DOTCLK | I | Clock Signal to Sample each date |
| 27 | ENABLE | I | Data enable signal for RGB interface operation |
| 28 | HSYNC | I | Horizontal Synchronizing Signal |
| 29 | VSYNC | I | Vertical Synchronizing Signal |
| 30 | RD | I | Read strobe signal input pin |
| 31 | WRX | I | Write strobe signal input pin |
| 32 | DCX | I | Register select signal |
| 33 | CS | I | Input pin for chip selection signal |
| 34 | RESET | I | LCM Reset input signal |
| 35 | IM0 | I | The MCU interface mode select. |
| 36 | IM1 | I | The MCU interface mode select. |
| 37 | IM2 | I | The MCU interface mode select. |
| 38 | IM3 | I | The MCU interface mode select. |
| 39 | GND | I | Ground |

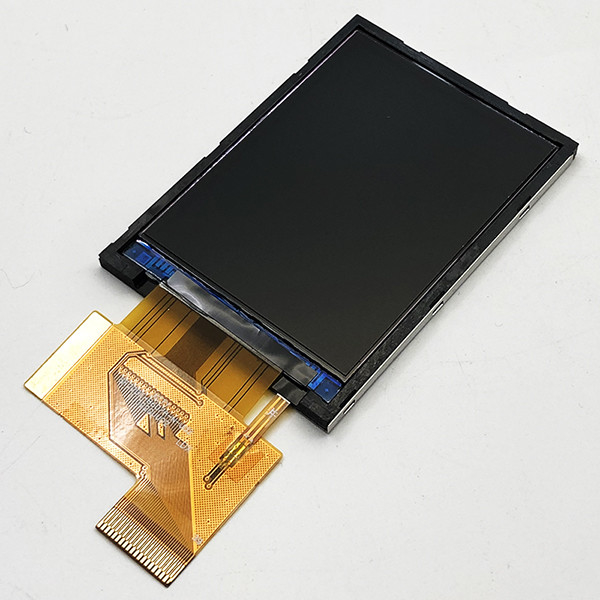

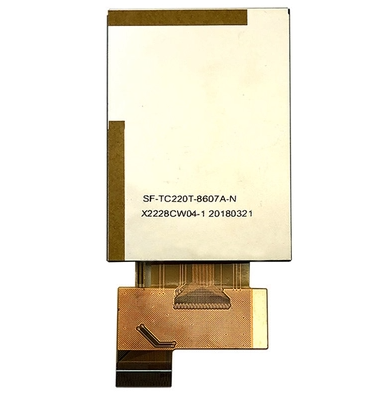

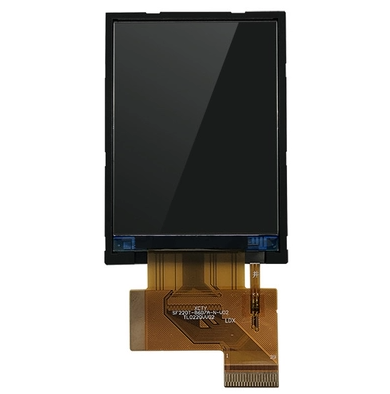

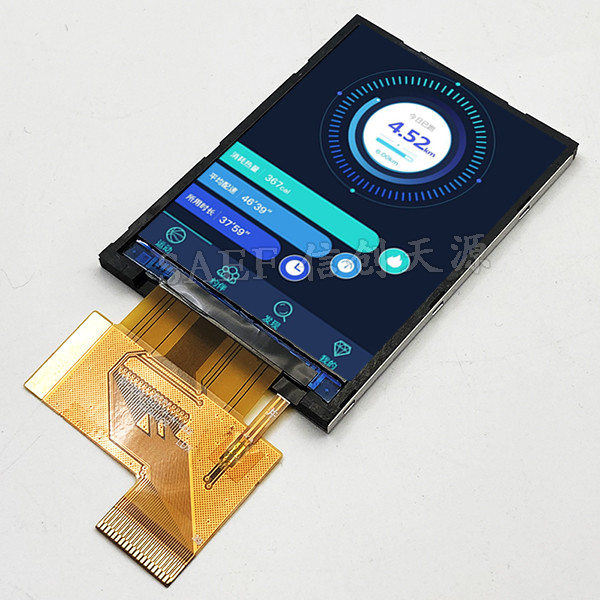

2.2 inch QVGA TFT LCD RGB Interface Image
