Description
16×2 I2C Blue 5V LCD for Arduino & Raspberry Pi (Model No. SF1602YB01-I2C)
Clear, Versatile Display for Your Projects
This 16×2 character LCD display features a bright blue backlight for easy readability. With its I2C interface, it simplifies wiring and saves precious I/O pins on your Arduino or Raspberry Pi.
Key Features:
- Effortless I2C Connection:Â Reduces wiring complexity and frees up I/O pins.
- Adjustable Backlight and Contrast:Â Customize the display for optimal viewing.
- Arduino & Raspberry Pi Compatibility:Â Works seamlessly with popular development boards.
- Wide Range of Applications:Â Display real-time data like temperature, humidity, clock, and more.
Specifications:
- Display:Â 16 characters x 2 lines
- Backlight:Â Blue
- Interface: I2C (Default Address: 0x27 or 0x3F – check your module)
- Working voltage:Â 5V (optional 3.3V support)
Get Started:Â Make sure to download the LiquidCrystal_I2C library (available on GitHub) before using this display.
Order yours today and bring your project information to life!
| Product: | 16×2 I2C 5V Arduino LCD | ||
|---|---|---|---|
| Characters / Columns: | 16 Characters X 2 Lines | ||
| Pin Number: | 4 Pins (GND, VCC, SDA, SCL) | ||
| Interface: | I2C Interface | ||
| Backlight Color: | White, Blue, Yellow, Red, Green, Purple And Amber | ||
| Operating Voltage: | 5V, 3V Optional | ||
| Optics: | All Viewing Angles | ||
| Outline Dim.: | 80.0(L) X 36.0(W) X 13(T) mm | ||
| Viewing Area: | 64.5.0(L) X 13.8(W) mm | ||
| Driving Method: | 1/16 Duty, 1/5 Bias | ||
| Controller: | SPLC780D + PCF8574 | ||
| Operating Temp: | -20°C To +70°C | ||
| Compliance: | REACH & RoHS Compliant | ||

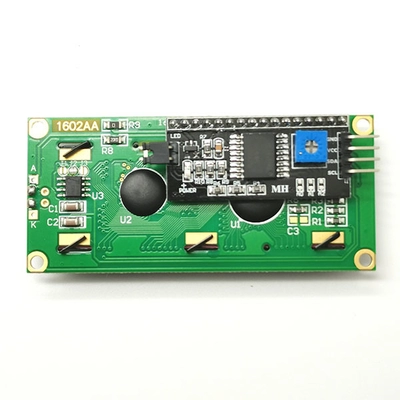

Components: LCD display with i2c serial interface backpack; LCD screen can display 2-lines x 16-characters; The i2c LCD adapter built-in industry standard equivalent LCD controller.
Default Address: 0 x 27 for PCF8574T chip; 0 x 3F for PCF8574AT chip; Please kindly check the chip of the i2c interface; (Please remember to download the Liquid Crystal I2C library on GitHub before uploading the code to the control board)
Compatibility: LCD display with I2C serial interface is compatible with for Arduino and Raspberry pi;
Working voltage: 5V optional 3.3V; To come with a potentiometer, which is applied to adjust backlight and contrast; How to wire: GND—GND; VCC—VCC; SDA—A4; SCL—A5
Application: LCD module is applied to display characters, letters, numbers, real time clock and temperature.
Display function: LCD display with I2C serial interface can be applied to display real time clock, temperature, humidity and so on; (A potentiometer is also necessary to adjust the contrast )
16×2 I2C Blue 5V LCD, 16×2 Character LCD Product Drawing

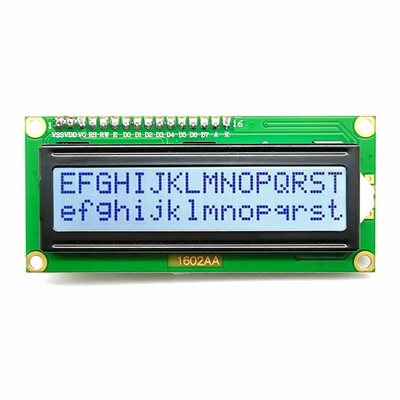

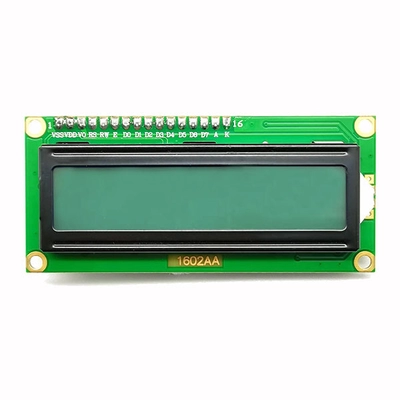

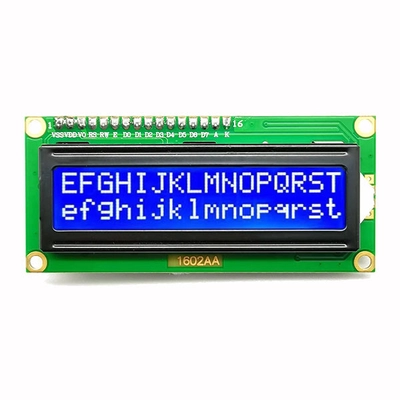

16×2 I2C Blue 5V LCD, 16×2 Character LCD Product Image
