Unveiling the Techno Marvel: ShenZhen Techstar Electronics Incorporated Co., Ltd SF-TC260T-9954A-T – A 2.6″ TFT LCD Masterpiece
Embark on a visual odyssey with the ShenZhen Techstar Electronics Incorporated Co., Ltd SF-TC260T-9954A-T, a revolutionary 2.6-inch IPS TFT LCD display that transcends boundaries. Engage your senses with a symphony of vibrant colors and tactile experiences, courtesy of the Resistive Touchscreen woven into its very essence.
Discover at a Glance:
- Dimensional Delight: Revel in the immersive 2.6″ TFT canvas, boasting a resolution of 480×320 pixels.
- Visual Freedom: Break free from constraints with a viewing angle that defies limits, offering a panoramic spectacle.
- Design Elegance: A sleek outline measuring 59.60×47.3×3.4 mm encapsulates the SF-TC260T-9954A-T, a true marvel of engineering.
- Intelligence Unleashed: Empowered by the R61531 LCD Driver IC, the module communicates seamlessly through the MCU interface.
- Temperature Harmony: From chilling -10°C to a sizzling +60°C, this LCD module thrives, with storage capabilities ranging from -20°C to +70°C.
- Touch of Innovation: Immerse yourself in the responsive embrace of the Resistive Touch Screen, adding an interactive layer to your digital experience.
Unleashing Features that Redefine Excellence:
- SF-TC260T-9954A-T dances on the edge of innovation, a 2.6-inch TFT LCD display boasting 480×320 pixels and a dynamic Resistive Touch Screen (RTP).
- Marvel at the dimensions – SF-TC260A-9954A-T stands at 59.60×47.3 mm, with an active area beckoning at 55.61 x 37.27 mm.
- Powered by the R61531 controller, this module pulsates with vitality, embracing logic supply voltages ranging from 2.6V to 3.3V.
- Temperature is but a number – Operate seamlessly between -10℃ to +60℃, while the module’s storage endurance spans from -20℃ to +70℃.
- Picture-perfect in landscape mode, SF-TC260T-9954A-T showcases 250 cd/m2 luminance. Explore its adaptability for portrait mode or enhanced brilliance; reach out to us for tailored technical support.
- Personalize your experience – SF-TC260T-9954A-T FPC invites customization, allowing you to choose the presence or absence of the engaging Resistive Touch Screen (RTP). Elevate your digital narrative with this technological marvel.
Product Features:
| Product: | 2.6″ Inch TFT LCD Display |
| Resolution: | 480×320 |
| Driver IC: | R61531 |
| Connection: | FPC Connector Type |
| Interface: | MCU |
| Operating Temp.: | -10℃ To +60℃ |
| Touch Screen: | Resistive Touch Panel (RTP) |
| Viewing Direction: | IPS, Full Viewing Angle (80/80/80/80) |
| Pin Number: | 40 Pins |
| Surface Luminance: | 240 Cd/m2 (nits) |
| LED Lifetime: | 40,000 Hours |
| Compliance: | REACH & RoHs Compliant |
2.6 Inch TFT LCD display IPS 480×320 landscape Pixels Drawing
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1 | YU | I/O | Touch Panel input signal |
| 2 | XL | I/O | Touch Panel input signal |
| 3 | YD | I/O | Touch Panel input signal |
| 4 | XR | I/O | Touch Panel input signal |
| 5 | GND | P | Ground |
| 6 | IOVCC | P | Power Supply 2.8V/1.8V Voltage |
| 7 | VCI | P | Power Supply2.8V Voltage |
| 8 | IM0 | I | 8BIT/16BIT SELECTION |
| 9 | GND | P | Ground |
| 10 | RESET | I | LCM Reset input signal |
| 11 | CS | I | Input pin for chip selection signal |
| 12 | RS | I | Command/data select signal. |
| 13 | GND | P | Ground |
| 14 | WR | I | Write strobe signal |
| 15 | RD | I | Read strobe signal. |
| 16~31 | DB0-DB15 | I/O | Data Signal |
| 32 | GND | P | Ground |
| 33 | LED_A | P | LED Anode |
| 34 | LED_K1 | P | LED Cathode |
| 35 | LED_K2 | P | LED Cathode |
| 36 | LED_K3 | P | LED Cathode |
| 37 | LED_K4 | P | LED Cathode |
| 38 | LED_K5 | P | LED Cathode |
| 39 | LED_K6 | P | LED Cathode |
| 40 | GND | P | Ground |
Maximum Absolute Limit
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | Â Â Â Â Â Â Â Â 1.6~3.3 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -20 to 70 | °C |
| Storage temperature | Tstg | -30 to 80 | °C |
| Â |
DC Characteristics (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test Condition |
| Operating voltage | VDD | 2.6 | 2.8 | 3.3 | V | – |
| Supply current | IDD | – | – | 5 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | – | VDD | V | – |
| VIL | 0 | – | 0.2VDD | V | ||
| Input leakage current | IIL | -1.0 | – | 1.0 | mA | VIN=VDD or VSS |
Electrical-optical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT | Test
Condition |
| Supply Voltage | Vf | 3 | 3.2 | 3.4 | V | If= 90 mA |
| Supply Current | If | – | 90 | – | mA | – |
| Reverse Voltage | Vr | – | – | 5 | V | – |
| Power dissipation | Pd | – | 192 | – | mW | – |
| Luminous Intensity for LCM | Â
– |
250 | 300 | – | Cd/m2 | If= 90 mA |
| Uniformity for LCM | – | 80 | – | – | ï¼… | If= 90 mA |
| Backlight Color | White | |||||
| Â | ||||||

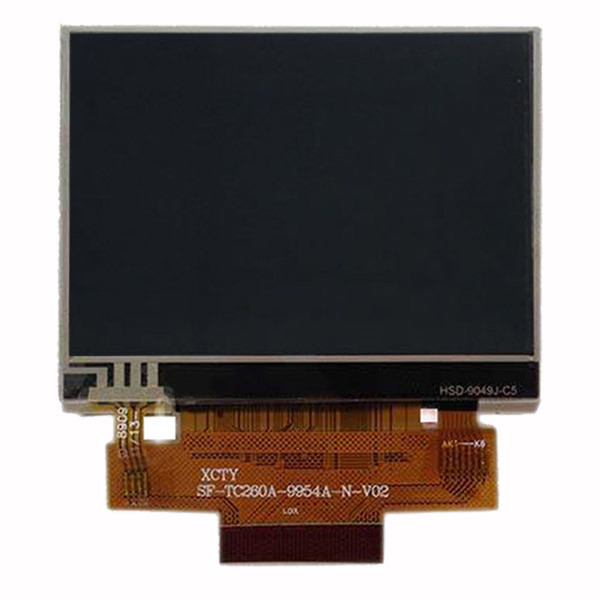

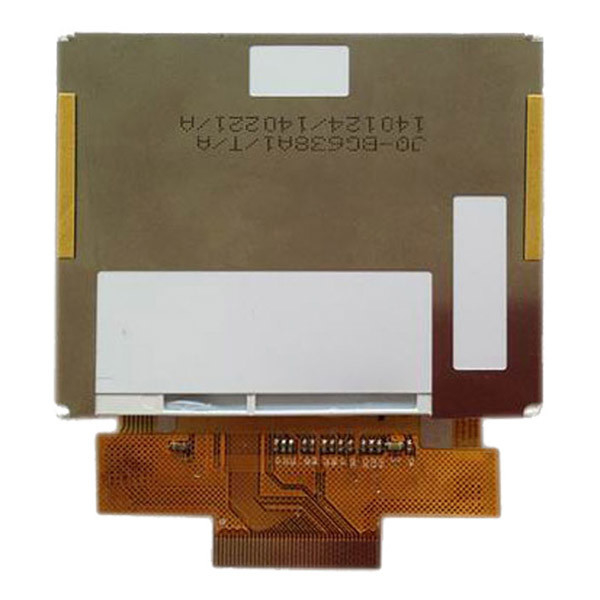

2.6 inch TFT LCD display IPS 480×320 Pixels landscape Product Image
