Monochrome COG LCD Manufacturer, Graphic Display 128×32 Dots with ST7567 IC

128×32 Monochrome Graphic LCD Display Module with ST7567 IC

The SF-12832-19B11 by ShenZhen Techstar Electronics Incorporated Co., Ltd presents a cutting-edge 128×32 monochrome Graphic LCD display module.

Quick Product Overview:

• Screen Type: Graphic Monochrome LCD Display Module
• Resolution: 128×32
• Viewing Angle: 12:00
• Dimensions: 50x23x3.3 mm
• Driver IC: ST7567
• Drive Mode: 1/33 Duty cycle, 1/6 Bias
• Temperature Range: Operating: -10°C to +60°C; Storage: -20°C to +70°C
• Touch Panel: Not Included (Customizable)

Product Highlights:

• The SF-12832-19B11 model features a built-in ST7567 controller or an equivalent IC, boasting 10 pins. The Flexible Printed Circuit (FPC) can be tailored to specific needs.
• Operating at a typical supply voltage of 3.3V, the LCD 12832 SF-12832-19B11 module includes a white LED backlight.
• The SF-12832-19B11 display employs FSTN Transmissive Positive mode for optimal performance.
• Capable of enduring temperatures from -10℃ to +60℃ during operation, and storage temperatures ranging from -20℃ to +70℃.
• While initially designed without a touch panel, customization options are available to incorporate one.

Applications

This versatile module finds widespread application across POS terminals, cash readers, meters and instruments, remote controllers, sensor devices, handheld gadgets, mobile food ordering machines, medical analyzers, and beyond.

Quality Management

Quality Policy

Our commitment is to consistently deliver high-quality products on time, meeting and exceeding customer requirements through continuous improvement.

Environmental, Health, and Safety (EHS) Policy

We adhere to all applicable laws and regulations to prevent pollution and promote environmental conservation. We strive to minimize emissions, conserve resources, and enhance environmental awareness, thus contributing to a sustainable future.

Implemented Measures

• Transparency: We ensure transparency in our quality policy and enhance employee awareness through comprehensive training and education programs.
• ‘5S’ Management: Through the implementation of ‘5S’ methodology, we maintain organized and efficient office and production environments while ensuring our workforce is well-trained.
• ISO9001 Quality Guarantee System: Our comprehensive quality assurance system covers all aspects affecting product and service quality, integrating them into regulated procedural management and control.
• Cost Efficiency: While upholding quality standards, we focus on reducing production costs, optimizing raw material expenses, and enhancing production and managerial efficiency.

Why Choose Us

Custom LCD Display Solutions

Do you require specialized LCD displays tailored to unique application, electrical, optical, touch, or mechanical specifications? SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD is equipped to meet your customized LCD requirements effectively.

Comprehensive Touch Screen Solutions

Concerned about integrating touch screen and display solutions seamlessly? SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD offers a range of custom and standard touch screen options, including Resistive and Capacitive multi-touch solutions, along with air and optical bonding services.

Quality Assurance and Reliability

SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD holds ISO9001:2015 and ISO14000 certifications, ensuring compliance with global environmental regulations such as RoHS and REACH. Our commitment to quality is reinforced through rigorous manufacturing processes, including IQC, PQC, and OQC management, as well as reliability and aging testing.

Long-term Supply Assurance

We guarantee a stable supply of recommended products for at least 5 years under normal circumstances. Additionally, we proactively plan for any special requirements to ensure uninterrupted long-term supply fulfillment for our clients.

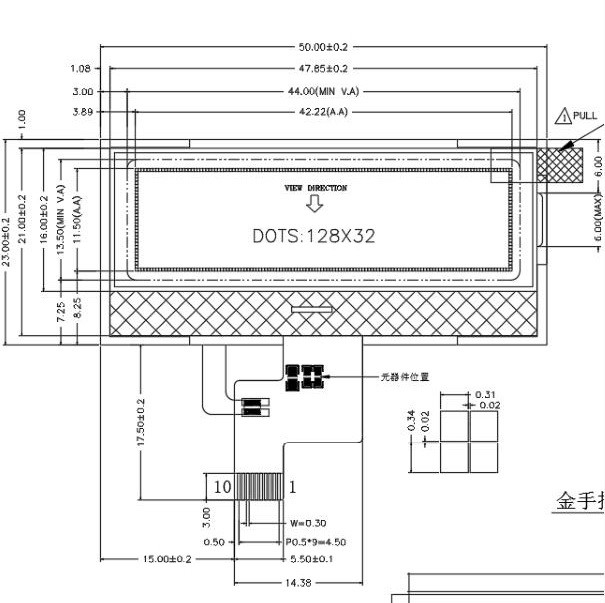

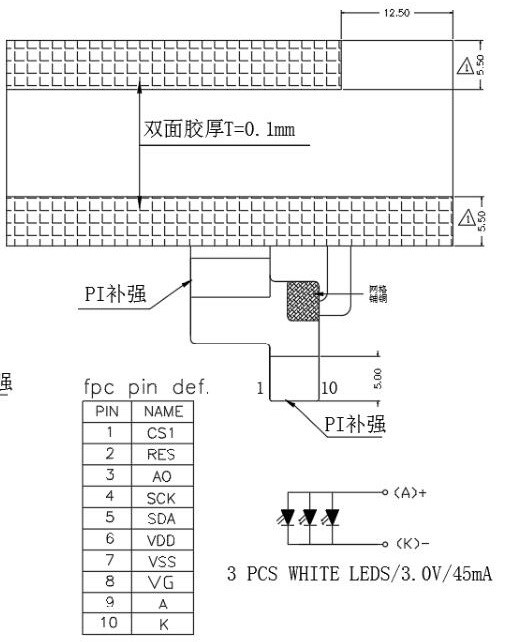

128×32 Monochrome Graphic LCD Display Drawing

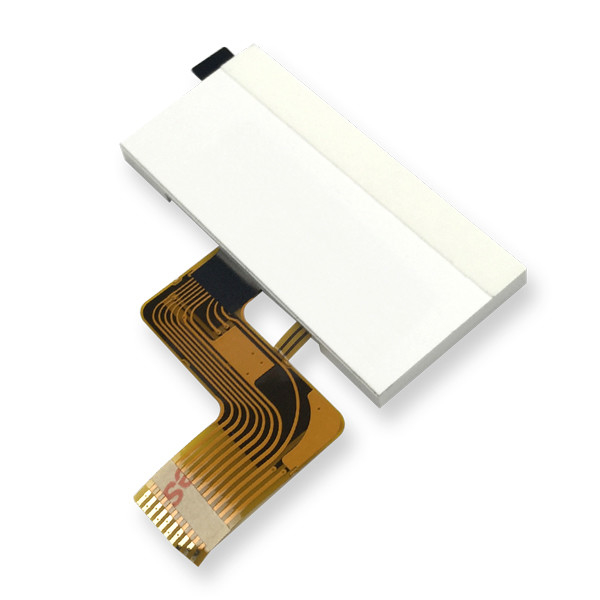

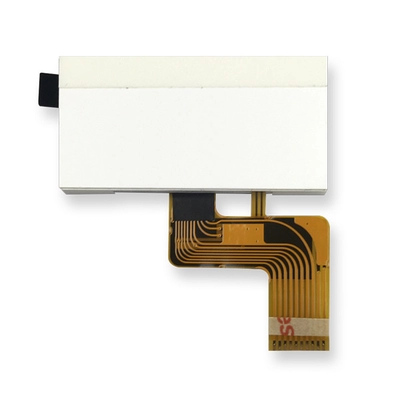

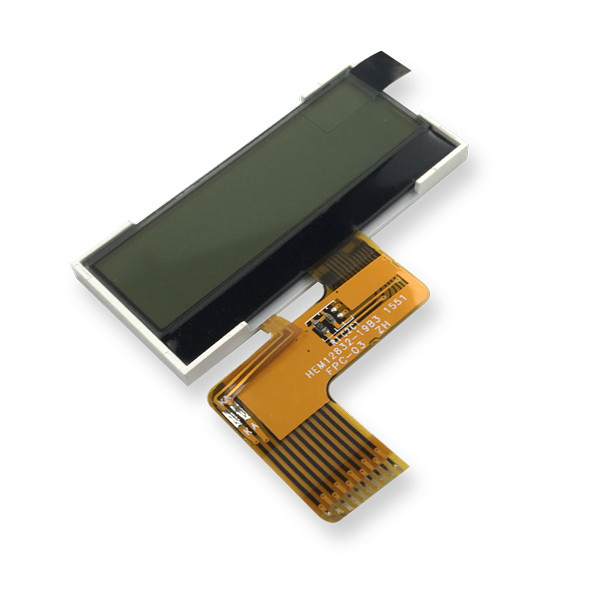

128×32 Monochrome Graphic LCD Display Product Image
