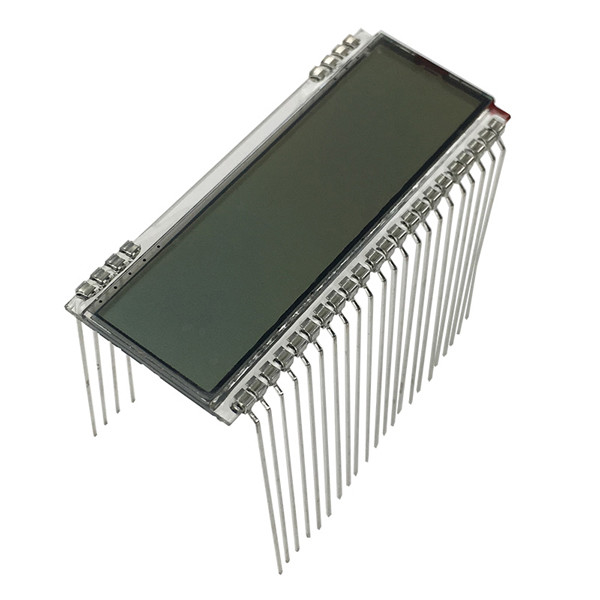

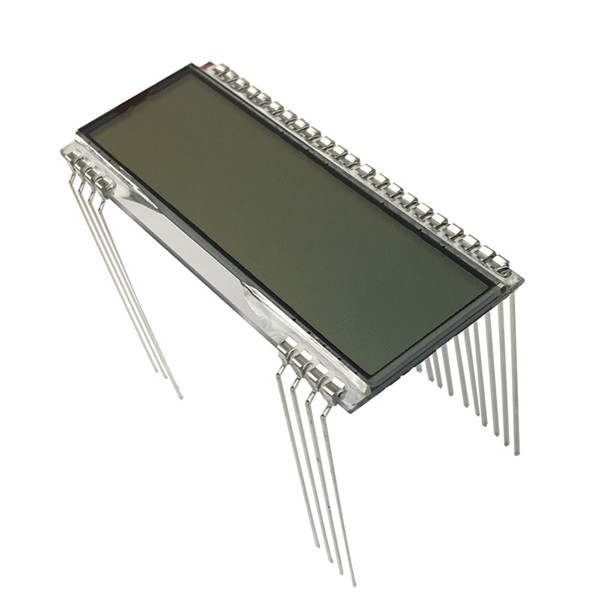

Introduction to Product: LCD Segment Displays in Reflective Mode, TN, HTN, and FSTN Variants
LCD segment displays serve as indispensable components for showcasing various electrical parameters such as voltage, current, power, and energy measurements. Additionally, they come equipped with a voltage alarm feature, offering alerts for overvoltage scenarios through backlight and voltage flashing prompts.
Operating seamlessly in diverse environments necessitates LCD meters with extended temperature resilience, spanning from -40°C to 85°C.
Key Features of JY4242HP-A LCD Meter Display:
- Exceptional Temperature Endurance: Operating range from -40°C to +85°C
- Enhanced Viewing Experience: HTN technology ensures a broader viewing angle compared to standard TN LCDs
- Ensured Quality Stability: Reliable polarizer solutions employed to maintain product quality consistency
- Customizable Backlight Options: Available in white, green, yellow-green, red, and blue variants (Transflective/Transmissive)
- Optimal Brightness: High backlight intensity ensures clear visibility
- Custom Design: Choice of four colors silk ink for personalized design aesthetics
| Product: | LCD Seven Segment Display |
|---|---|
| Driving Condition: | 1/4 Duty, 1/3 Bias, 3.3 V |
| Outline Dim.: | 59x25x2.85 Mm |
| Operating Temp: | -40°C To +85°C |
| Surface Printing: | None (Customizable ) |
| Application: | Meter Front Screen |
| Glass: | TN/HTN/STN, Reflective/Transflective |
| Optics: | 6:00 O’clock (12:00 O’clock Optional) |
| Backlight: | Customizable |
| Response Time: | 10 mS @ 25°C |
| Connector: | Metal Pin |
| Compliance: | REACH & RoHS Compliant |

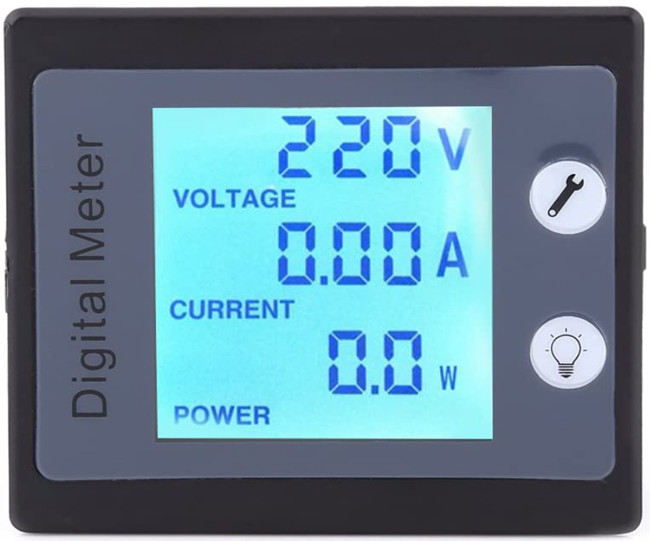

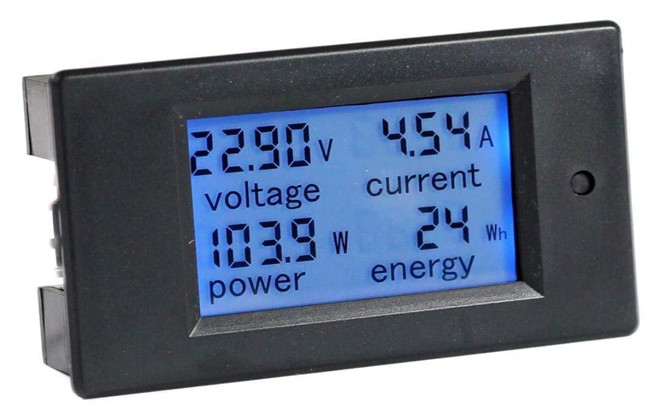

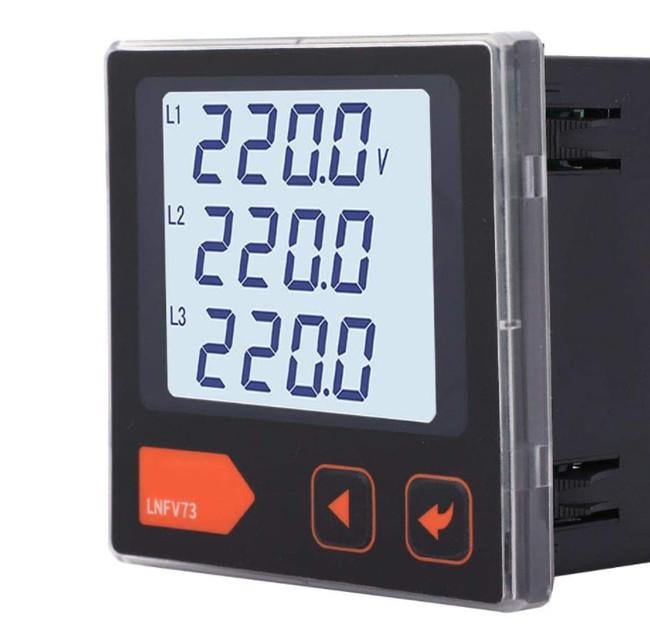

Meter lcd applications are asÂ

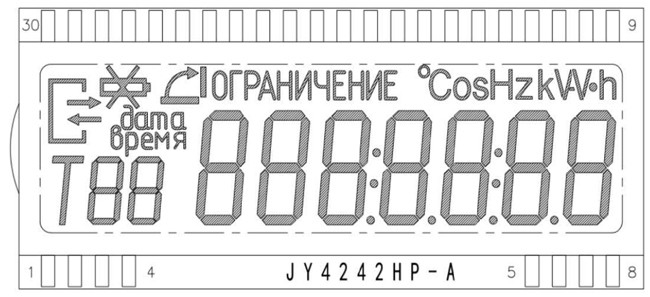

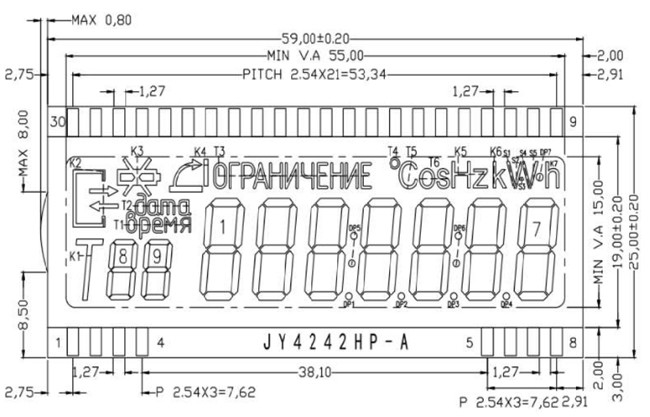

LCD Segment Display Reflective Mode, TN HTN FSTN Alphanumeric LCD Meter Display Product Drawing
