Description
800×480 RGB TFT LCD 5 Inch Display with PCAP Capacitive Touch
Explore the SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD  5-inch TFT LCD marvel, model SF-TC500C-8295A-CT, boasting superior resolution. Nestled between our standard 4.3-inch and 5.7-inch modules, the 8295A-CT dazzles with its enhanced clarity. While our conventional 4.3″ offers a 480×272 resolution and the 5.7″ TFT boasts 320×240, the 8295A-CT outshines with an impressive 800×480 resolution. It’s the perfect choice for projects craving heightened detail without compromising affordability.
Embracing an RBG interface, the SF-TC500C-8295A-CT is a landscape TFT LCD display featuring a capacitive Touch Panel. Customizable cover glass dimensions cater to diverse customer needs. With a surface brightness of 450 cd/m2 (nits), the luminance can be further tailored to a stunning 1000 cd/m2 (nits), ensuring vivid visual experiences.
Product Features
| Product: | 5 Inch TFT Display |
|---|---|
| Resolution: | 800*480 Dots |
| Interface: | RGB Interface |
| Touch Screen: | With Capacitive Touch Panel |
| Cover Glass: | Customizable |
| Viewing Direction: | 6 O’clock |
| Outline Dimension: | 120.7(L) X 76.3(W) X 2.8(T) Mm |
| Pin Number: | 50 Pins |
| Connection: | Plugging |
| Surface Luminance: | 450 Cd/m2 |
| LED Lifetime: | 40,000 Hours |
| Compliance: | REACH & RoHS Compliant |
800×480 RGB TFT LCD 5 Inch, PCAP Capacitive Touch 5″ TFT Display Drawing
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1-2Â | Â Â VLED+ | 0 | Power for LED backlight (Anode) |
| 3-4Â | VLED- | 0 | Power for LED backlight (Cathode) |
| 5 | GND | I | Power Ground |
| 6 | VCOM | I | Common voltage |
| 7Â | DVDD | I | Power for digital circuit |
| 8Â | MODE | I | DE/SYNC mode select |
| 9Â | DE | I | Data input enable |
| 10Â | VS | I | Vertical sync input |
| 11 | HS | I | Horizontal sync input |
| 12-19 | B7-B0 | I | Blue data |
| 20-27 | G7-G0 | I | Green data |
| 28-35 | R7-R0 | I | Red data |
| 36 | GND | I | Power Ground |
| 37 | DCLK | I | Sample clock |
| 38 | GND | I | Power Ground |
| 39 | L/R | I | Left/right selection |
| 40 | U/D | I | Up/down selection |
| 41 | VGH | I | Gate ON voltage |
| 42 | VGL | I | Gate OFF voltage |
| 43 | AVDD | I | Power for analog circuit |
| 44 | RESET | I | Global reset pin |
| 45 | NC | I | No connection |
| 46 | VCOM | I | Common voltage |
| 47 | DITHB | I | Dithering function |
| 48 | GND | I | Power Ground |
| 49-50 | NC | I | No connection |
| Â | Â |

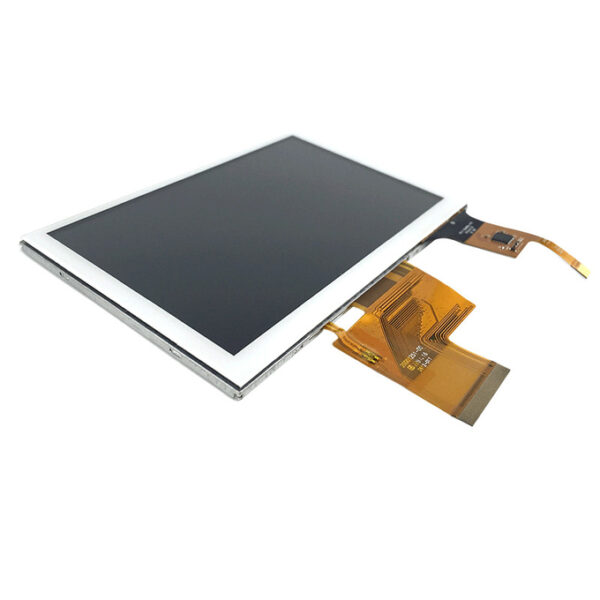

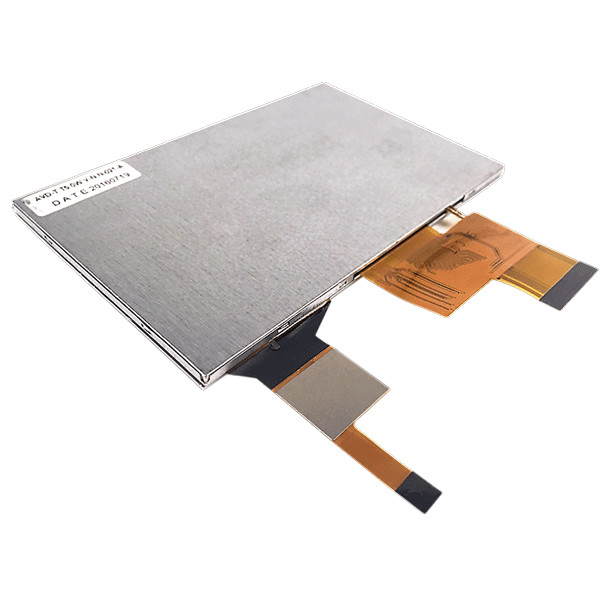

800×480 RGB TFT LCD 5 Inch, PCAP Capacitive Touch 5″ TFT Display Image
