Description
2.66-inch E-Ink ESL Display: Upgrade Your Shelf Labeling
Key Features:
- Crisp, high-contrast display:Â 152×296 pixels for clear pricing and product information.
- Super energy-efficient:Â Battery lasts for months or even years on a single charge.
- Wide viewing angle:Â Easy readability from any direction.
- Flexible orientation:Â Display in landscape or portrait mode to suit your needs.
- Easy integration:Â Serial peripheral interface and I2C signal master interface.
- Built-in temperature sensor:Â For dynamic price adjustments (optional).
Benefits:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
- Enhance the customer experience:Â Provide clear, up-to-date product information.
- Reduce operational costs:Â Eliminate manual price tag changes and associated labor.
- Streamlined inventory management:Â Automate price updates and stock tracking.
- Modernize your store appearance:Â Sleek, e-ink displays create a high-tech look.
Ideal For:
- Retail stores
- Supermarkets
- Warehouses
- Libraries
- Any application requiring dynamic, low-power displays
Contact us today to learn how our ESL displays can revolutionize your business!
| Screen Size | 2.66 inch | ||
|---|---|---|---|
| Display Mode | Active Matrix EPD | ||
| Display Resolution | 152(H)×296(V) Pixels | ||
| Active Area | 30.704 (H) ×60.088 (V) mm | ||
| Pixel Pitch | 0.203(H) × 0.203(V) | ||
| Pixel Configuration | Rectangle | ||
| Outline Dim.: | 36.3(H) × 71.8(V) ×1.14(D) mm | ||
| Weight | 4.1 g | ||
| Logic supply voltage | 3.0V typical | ||
| Operation Temperature | 0°C to +50°C | ||
| Storage Temperature | -25°C to +60°C | ||
| Interface: | SPI | ||
| Compliance: | REACH & RoHS Compliant | ||
ESL Display 2.66 inch, E-ink display 2.66 inch Product Drawing
Interface Pin Definition
| Pin # | Single | Description | Remark |
| 1 | NC | No connection and do not connect with other NC pins | Keep Open |
| 2 | GDR | N-Channel MOSFET Gate Drive Control | |
| 3 | RESE | Current Sense Input for the Control Loop | |
| 4 | NC | No connection and do not connect with other NC pins | Keep Open |
| 5 | VSH2 | Positive Source driving voltage | |
| 6 | TSCL | I²C Interface to digital temperature sensor Clock pin | Note 6-6 |
| 7 | TSDA | I²C Interface to digital temperature sensor Data pin. | Note 6-6 |
| 8 | BS1 | Bus selection pin | Note 6-5 |
| 9 | BUSY | Busy state output pin | Note 6-4 |
| 10 | RES # | Reset signal input. | Note 6-3 |
| 11 | D/C # | Data/Command control pin | Note 6-2 |
| 12 | CS # | The chip select input connecting to the MCU. | Note 6- 1 |
| 13 | SCL | Serial clock pin for interface. | |
| 14 | SDA | Serial data pin for interface. | |
| 15 | VDDIO | Power input pin for the Interface. | |
| 16 | VCI | Power Supply pin for the chip | |
| 17 | VSS | Ground (Digital) | |
| 18 | VDD | Core logic power pin | |
| 19 | VPP | Power Supply for OTPÂ Programming | |
| 20 | VSH1 | Positive Source driving voltage | |
| 21 | VGH | Power Supply pin for Positive Gate driving voltage and VSH | |
| 22 | VSL | Negative Source driving voltage | |
| 23 | VGL | Power Supply pin for Negative Gate driving voltage, VCOM and VSL | |
| 24 | VCOM | VCOM driving voltage | |
Maximum Absolute Ratings
| Symbol | Parameter | Rating | Unit | Humidity | Unit | Note |
| VCI | Logic supply voltage | -0.5 to +6.0 | V | – | – | |
| TOPR | Operation temperature range | 0 to 40 | °C | 45 to70 | % | Note 12- 1 |
| Tttg | Transportation temperature range | -25 to 60 | °C | 45 to70 | % | Note12-2 |
| Tstg | Storage condition | 0 to 40 | °C | 45 to70 | % | Maximum storage time: 5 years |
| – | After opening the package | 0 to 40 | °C | 45 to70 | % | |
DC Characteristics
| Symbol | Parameter | Test Condition | Applicable pin | Min. | Typ. | Max. | Unit |
| VCI | VCI operation voltage | VCI | 2.5 | 3 | 3.7 | V | |
| VIH | High level input voltage | SDA, SCL, CS#, D/C#, RES#,BS1 | 0.8VDDIO | V | |||
| VIL | Low level input voltage | 0.2VDDIO | V | ||||
| VOH | High level output voltage | IOH = – 100uA | BUSY | 0.9VDDIO | V | ||
| VOL | Low level output voltage | IOL= 100uA | 0. 1VDDIO | V | |||
| Iupdate | Module operating current | – | 3 | – | mA | ||
| Isleep | Deep sleep mode | VCI=3.3V | – | – | 3 | uA | |

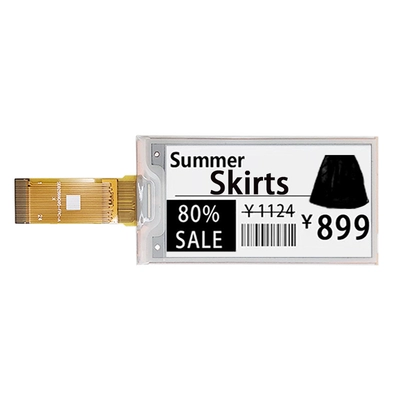

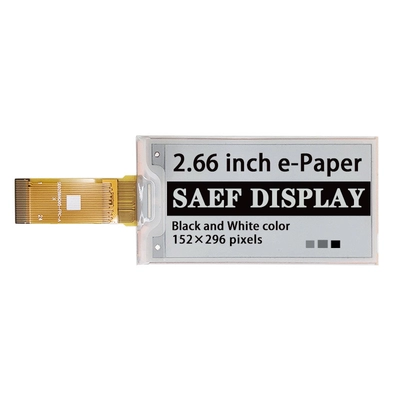

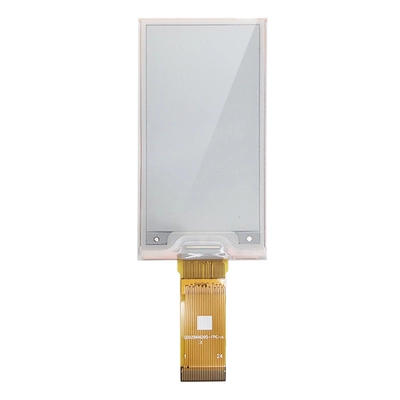

ESL Display 2.66 inch, E-ink display 2.66 inch Product ImageÂ
