Description
Introducing the SFOS066XZ-7115AN OLED Display Module, featuring a 0.66-inch diagonal size and a resolution of 64×48 pixels. This COG (Chip-On-Glass) graphic display is designed for industrial-grade applications, offering a competitive price point.
Equipped with the SSD1315 IC, this module supports versatile interfaces, including 8-bit 68XX/80XX Parallel, 4-wire SPI, and I2C. The logic supply voltage is 4V, with an operating current for VDD at 180μA and a driving duty of 1/48.
Ideal for wearable devices, smart home applications, and more, the SFOS066XZ-7115AN OLED Display Module operates reliably in a temperature range from -40℃ to +80℃, with storage temperatures also spanning from -40℃ to +80℃. This module combines high-quality performance with affordability to meet the demands of various industrial applications.
Explore the Distinctive Features:
- Immerse yourself in the brilliance of a 0.66-inch mini OLED display boasting a 64×48 resolution, empowered by the advanced SSD1315 chipset.
- Experience unparalleled efficiency with this 0.66-inch OLED display module, delivering ultra-low power consumption of just 0.08w for full-screen illumination.
- Customize your experience with our soldered-type micro OLED display, sized at 0.66 inches. Tailor the FPC (length, interface, plugging type connection, etc.) according to your unique requirements.
- Versatility at its core – the 0.66-inch 64×48 OLED product is crafted for Parallel, SPI, and IIC interfaces, ensuring seamless integration.
- Enjoy an infinite viewing angle of up to 175 degrees with this cutting-edge 0.66-inch OLED display module.
- Elevate your devices with the OLED 0.66-inch 64×48 product, perfectly suited for wearable devices, smart home applications, and more.
- Immerse yourself in the self-illuminating design of the IIC OLED 0.66-inch product. No backlight is required, ensuring high-contrast, bright, and clear dots that remain readable even in tiny fonts.
- Swift and responsive – this 0.66-inch OLED display boasts a remarkable response time of just 10 microseconds at +25 °C.
- Unleash brilliance with the 0.66-inch mono OLED product, featuring high brightness and an outstanding contrast ratio of up to 2000:1.
- Embrace sustainability with the cost-effective 0.66-inch OLED product, designed for lower power consumption, actively contributing to the reduction of CO2 emissions.
Product Features:
| Product: | 0.66 Inch OLED Display Module |
| Number Of Pixels: | 64×48 Graphics |
| Driver IC: | SSD1315 Or Equivalent |
| Interface: | Parallel, SPI, I2C |
| Display Mode: | Passive Matrix |
| Drive Duty: | 1/48 Duty |
| Display Color: | Monochrome (white) |
| Panel Size: | 16.42 X 16.9 X 1.25 (mm) |
| Active Area: | 13.42 X 10.06 (mm) |
| Pixel Pitch: | 0.21 X 0.21(mm) |
| Pixel Size: | 0.19 X 0.19(mm) |
| Viewing Direction: | All Viewing Angles |
| Pin Number: | 28 Pins |
| Connection: | Soldering/Hotbar (Plug-in Customizable) |
| Life Time: | 50,000 Hours @60cd/m2 |
| Compliance: | REACH & RoHS Compliant |
Discover ShenZhen Techstar Electronics Incorporated Co., Ltd’s Graphic OLED Displays:
ShenZhen Techstar Electronics Incorporated Co., Ltd offers a range of graphic OLED displays in three mechanical structures – COB, COG, and TAB passive matrix technology.
Choose from a variety of resolutions in our graphic monochrome OLED lineup, including 50×16 OLED, 64×128 OLED, 100×16 OLED, 100×32 graphic OLED, 200×16 graphic OLED, OLED 128×32, OLED display 128×64, OLED 128×128, and 256×64 OLED Display. These displays come equipped with on-board controllers and interfaces, supporting parallel, serial, and I2C OLED, as well as SPI OLED. Operating voltages range from 3V to 5V, depending on resolution and color.
Dive into the extensive selection of OLED display modules offered by SAEF, ranging from 0.42″ to 5.5″ OLED displays. Explore options like the 0.42″ micro OLED Display, 0.49″ OLED Display, 0.66″ mini OLED Display, 0.69″ OLED, 0.91″ OLED Display, 0.95″ OLED, 0.96″ OLED Display, 1.3″ OLED Display, 1.5″ OLED Display, 2″ OLED, 2.4″ OLED, 2.7″ OLED Display, 5.5″ OLED Display, and bespoke design solutions to meet your specific needs.

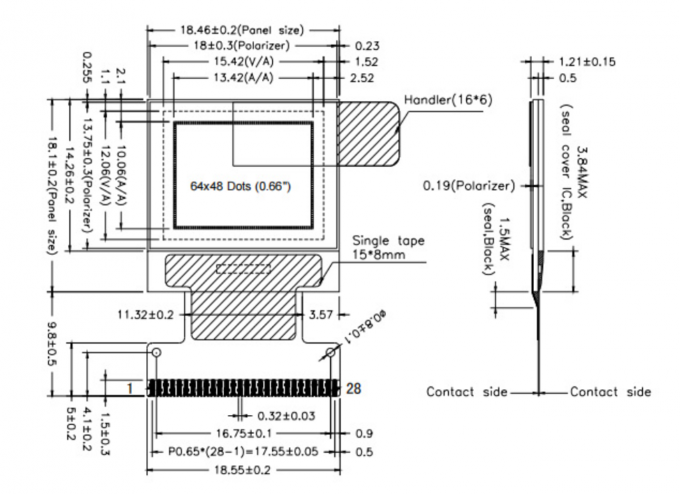

Quality Graphic OLED Display Module 0.66 Inch Product Drawing

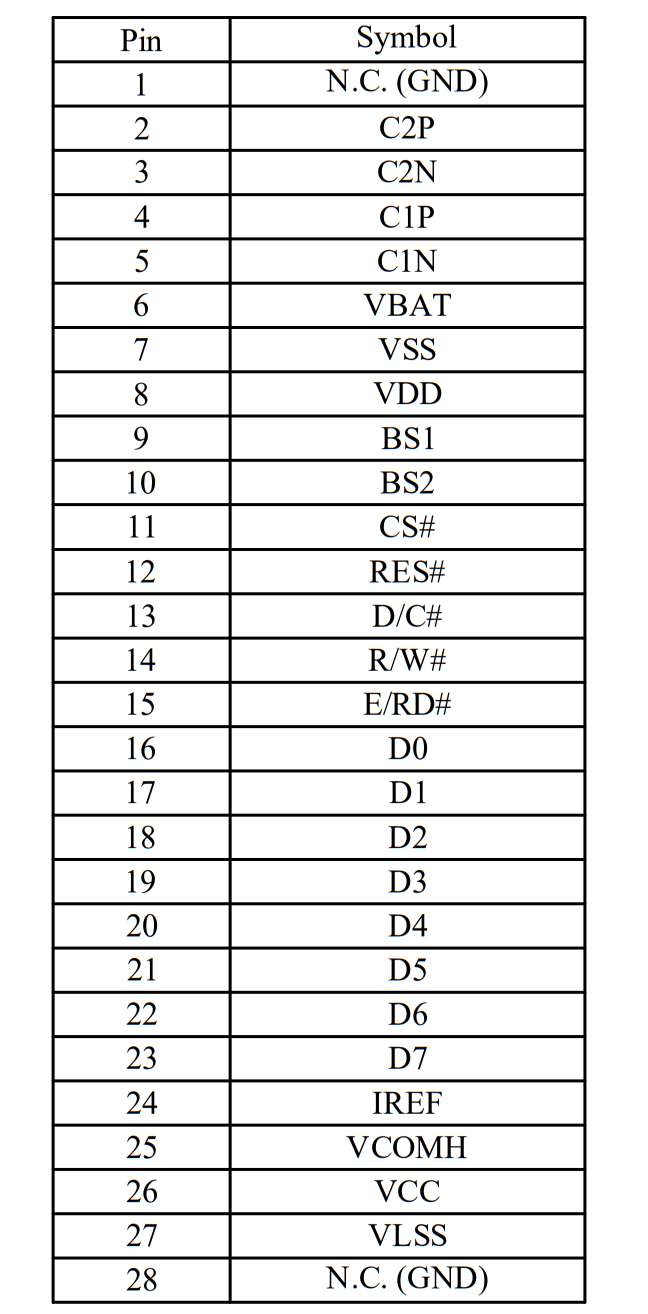

Pin Definition

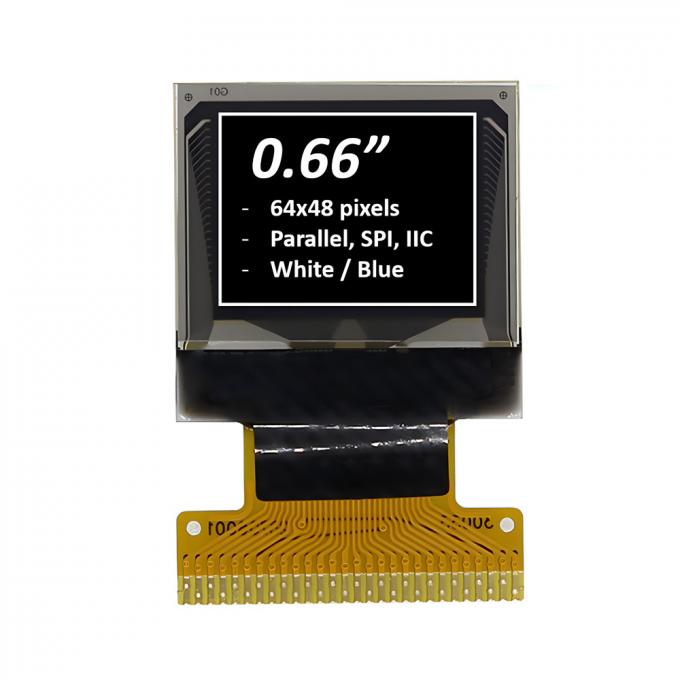

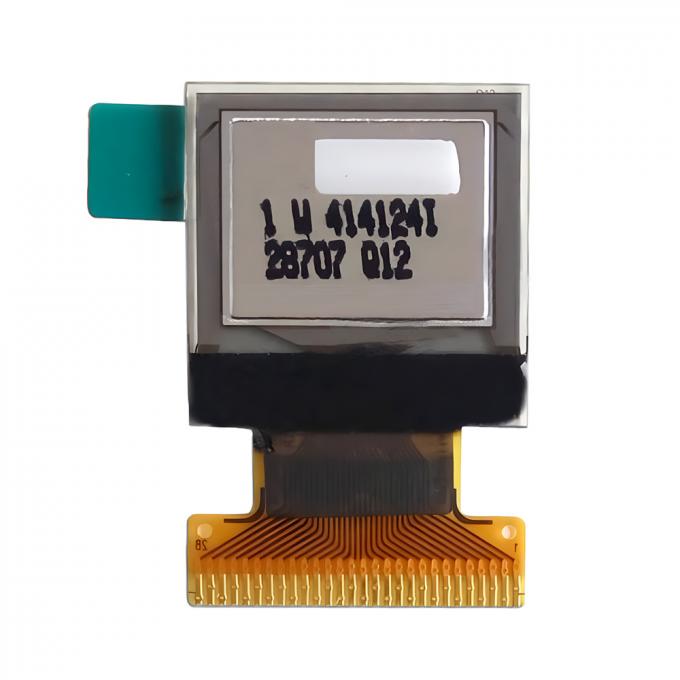

Quality Graphic OLED Display Module 0.66 Inch Product Image
