Description
Product Quick Insight:
- Model No. SF-TC350M-9268A1-T
- 3.5 inch TFT LCD Screen Display, Display 3.5″
- Resolution: 320 x 240 dots
- View Direction: 6H
- Interface: RGB
- Driver IC：HX8238
- Brightness(cd/m²): 400
- Touch Screen: with Resistive Touch screen
Unveiling the TFT LCD Marvel: A 3.5″ Revelation in Display Technology
Introducing the SF-TC350M-9268A1-T, a cutting-edge 3.5-inch QVGA TFT LCD display module that redefines visual experiences. With a vibrant full-color palette and a crisp 320×240 resolution, this display promises a feast for the eyes. Seamlessly controlled by your MCU, it unlocks a realm of possibilities for embedded systems, industrial devices, security apparatus, and handheld equipment craving high-quality, vivid imagery.
But wait, there’s more! This marvel supports an RGB interface, ensuring effortless integration with your host system. Thanks to its FFC/FPC tail, mating with ubiquitous ZIF sockets becomes a breeze, facilitating hassle-free connections.
The SF-TC350M-9268A1-T isn’t just another run-of-the-mill display module—it’s a standard bearer of excellence. Fully compatible with Winstar’s WF35LTIACDNN0 and WF35LTIACDNG0 3.5-inch TFT displays, it sets the benchmark for versatility. Tailored to suit diverse application environments, it boasts optional configurations galore.
Prepare to be impressed! From EMI testing to rigorous reliability assessments, this module stands the test of time. Choose from variants with or without resistive touch panels, opt for capacitive touch screens, and revel in brightness levels soaring up to 700 nits. With the SF-TC350M-9268A1-T, elevate your visual experiences to unprecedented heights.
Features
| Product: | 3.5 Inch TFT Display |
|---|---|
| Resolution: | 320*240 Dots |
| Touch Screen: | Resistive Touch Panel (CTP Optional) |
| Cover Glass Dimension: | Customizable |
| Outline Dimension: | 63.9 X 76.9 X 4.45 mm |
| Viewing Direction: | 6:00 |
| Interface: | RGB |
| Pin Number: | 54 Pins |
| Connection: | Plugging |
| Surface Luminance: | 350 – 700 Cd/m2(nits) |
| LED Lifetime: | 40,000 Hours |
| Compliance: | REACH & RoHS Compliant |

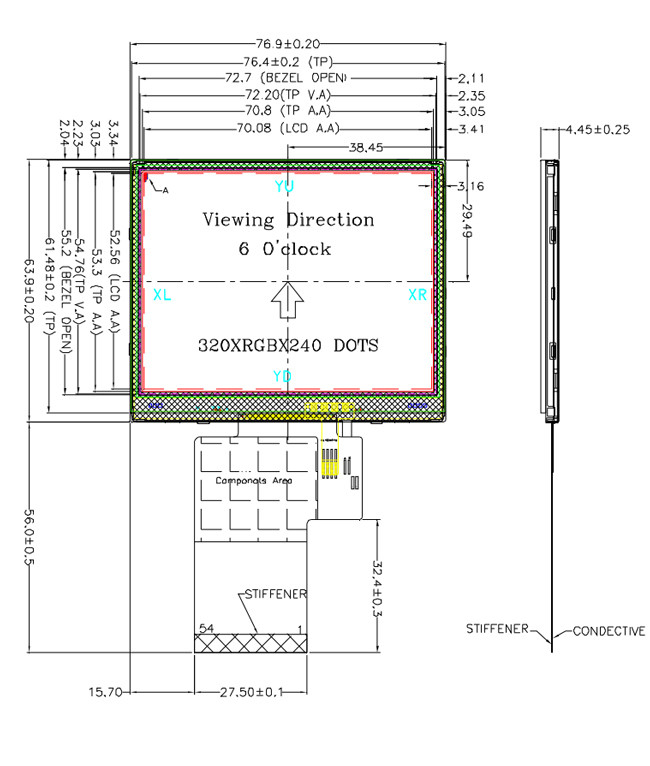

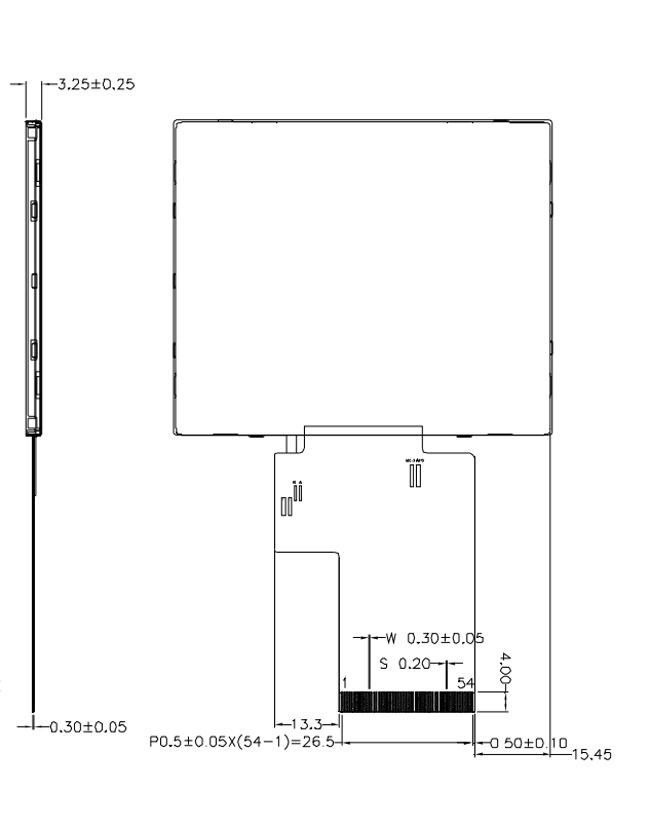

TFT LCD 3.5 inch, 3.5″ QVGA TFT Display Module Drawing
Interface Pin definition
| NO. | PIN NAME | I/O | Description |
| 1 | LED-K1 | I | LED Cathode |
| 2 | LED-K2 | I | LED Cathode Connect to LED-K1 |
| 3 | LED-A1 | I | LED Anode |
| 4 | LED-A2 | I | LED Anode  Connect to LED-A1 |
| 5-7 | NC | – | No Connection |
| 8 | /RESET | I | Reset Pin |
| 9 | CS | I | Input pin for chip selection signal |
| 10 | SCL | I | SPI Clock Signal |
| 11 | SDI | I | SPI Interface Input Pin |
| 12 | B0 | I | BLUE Data Signal(LSB) |
| 13-19 | B1-7 | I | BLUE Data Signal |
| 20 | G0 | I | GREEN Data Signal(LSB) |
| 21-27 | G1-7 | I | GREEN Data Signal |
| 28 | R0 | I | RED Data Signal (LSB) |
| 29-35 | R1-7 | I | RED Data Signal |
| 36 | HSYNC | I | Horizontal Synchronizing Signal |
| 37 | VSYNC | I | Vertical Synchronizing Signal |
| 38 | DOTCLK | I | Clock Signal to Sample each date |
| 39-40 | NC | – | No Connection |
| 41 | VDD | I | +2.8V Power Source |
| 42 | VDDIO | I | 1.8V~2.8V Power Source |
| 43 | YU | I | Touch Panel Pin |
| 44 | XL | I | |
| 45 | YD | I | |
| 46 | XR | I | |
| 47-51 | NC | – | Not Connection |
| 52 | ENABLE | I | Input Data enable control |
| 53-54 | GND | I | Power Ground |

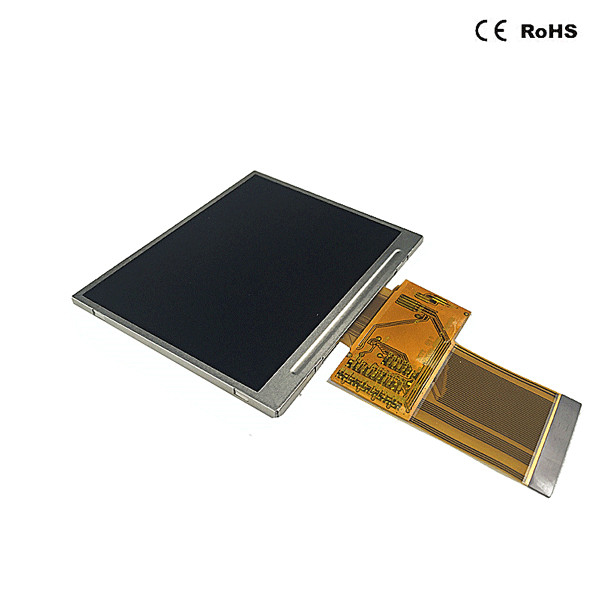

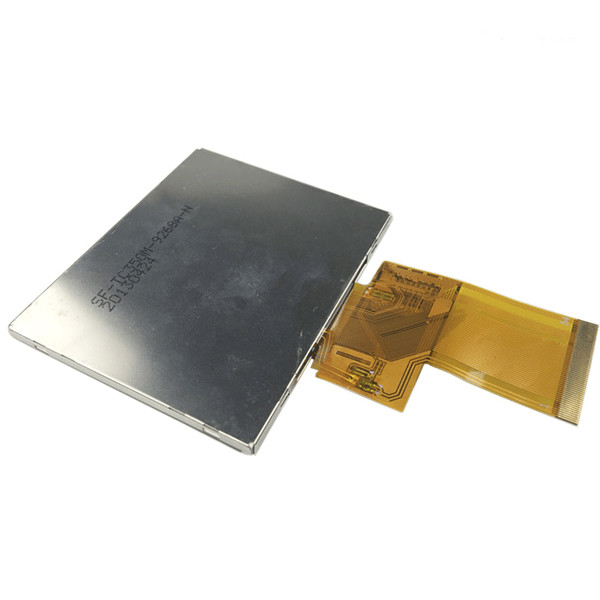

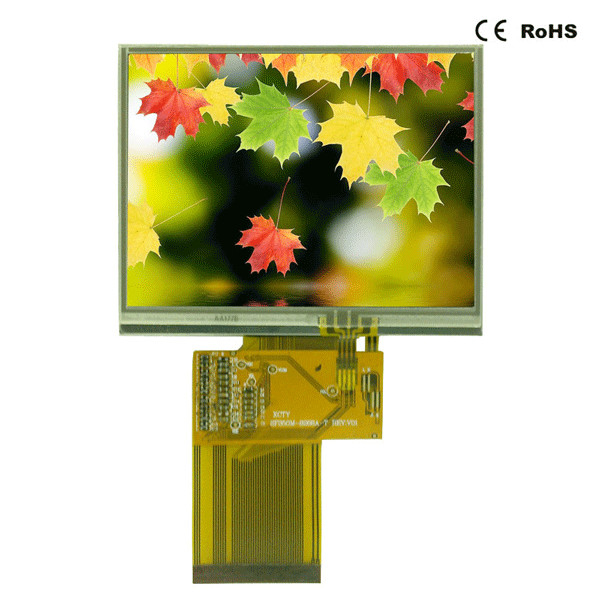

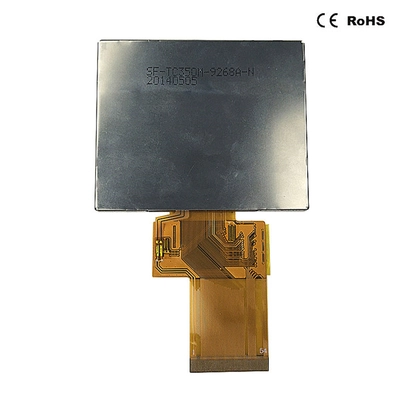

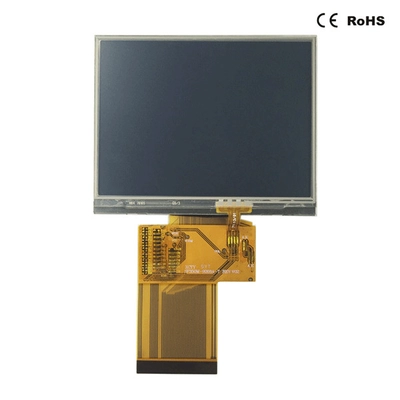

TFT LCD 3.5 inch, 3.5″ QVGA TFT Display Module Product Image
