Unveiling the 6.5 Inch 800×480 Industrial TFT LCD Display: Revolutionizing Visual Experience
Introducing the SF-TC650I-9292A-T, a groundbreaking 6.5-inch industrial TFT-LCD display engineered to redefine visual clarity. Boasting an impressive 800×480 resolution (800 pixels horizontally by 480 pixels vertically), this model transcends conventional displays with its unparalleled performance.
Versatile in application, this display supports an RGB interface, ensuring seamless integration across various platforms. With a supply voltage (VCC) ranging from 3.0V to 3.6V, it empowers embedded systems, automation technologies, GPS devices, medical equipment, and industrial machinery with vivid, high-quality imagery.
Distinguished by its TN-LCD type TFT architecture, the SF-TC650I-9292A-T offers a grayscale inversion direction at 6 o’clock, optimizing viewing angles for enhanced user experience. Sporting a brightness of 320 cd/m2 (typical value), it delivers unparalleled luminance across diverse environments.
Designed for durability, this display operates flawlessly within a wide temperature range, from -20℃ to +70℃, ensuring reliability in extreme conditions. With storage temperatures spanning from -30℃ to +80℃, it guarantees longevity and resilience.
Experience seamless compatibility with the Innolux model AT065TN14V01, affirming its status as a pinnacle of technological innovation in the realm of TFT displays. Revolutionize your visual experience with the SF-TC650I-9292A-T, where every pixel tells a story of unparalleled clarity and precision.
| Keywords: | 6.5 Inch TFT LCD Display |
| Resolution: | 800×480 |
| Interface: | RGB |
| LED Lifetime: | 40,000 Hours |
| Viewing Direction: | 6 O’clock |
| Operating Temp.: | -20℃ To +70℃ |
| Touch Screen: | Resistive Touch Panel |
| Cover Glass Dimension: | ODM |
| Surface Luminance: | 320 Cd/m2 |
| Pins: | 50 |
| Connection: | ZIF / Plugging |
| Compliance: | REACH & RoHS Compliant |

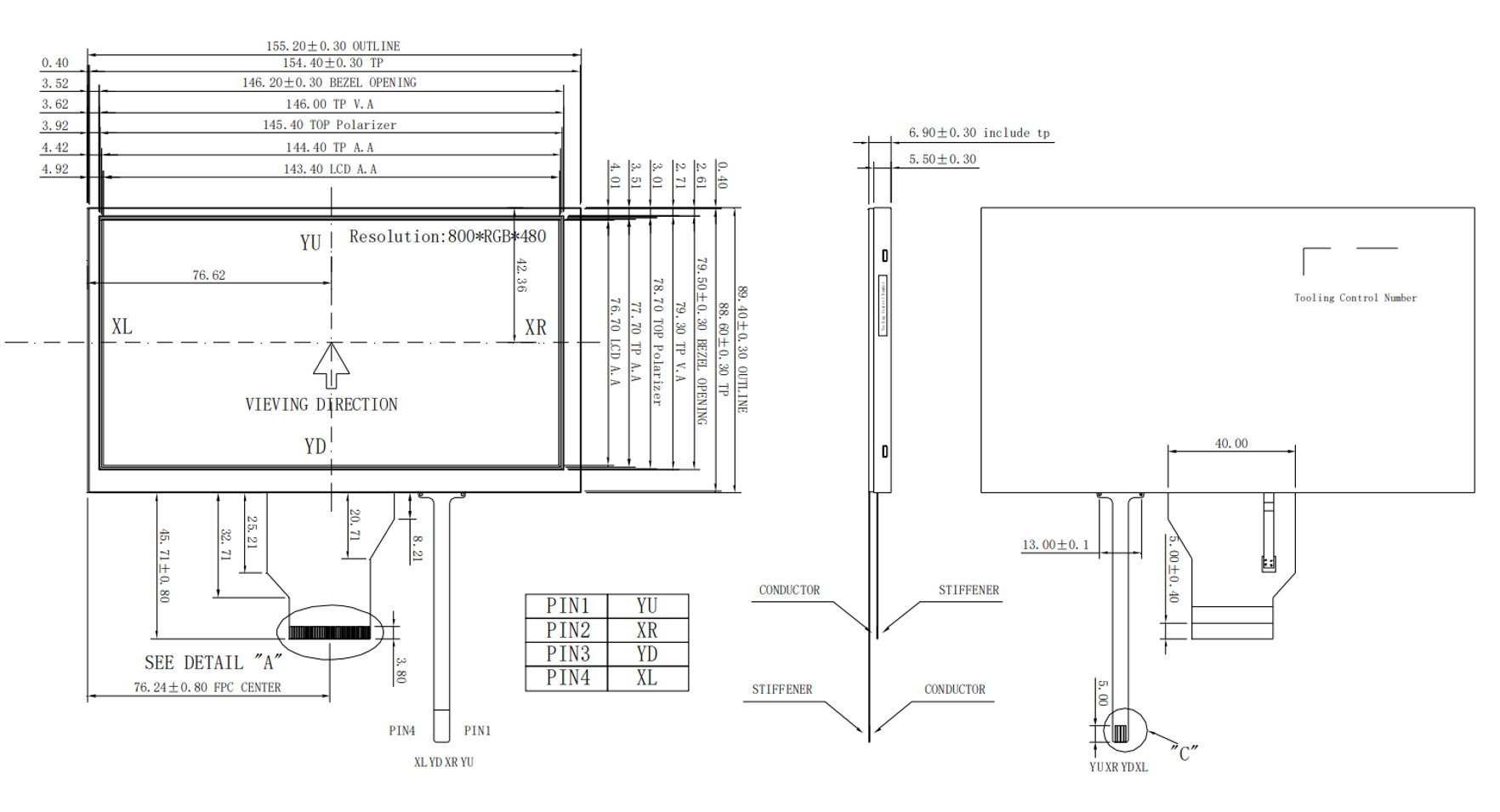

Resistive Touchscreen 6.5 Inch 800×480 Industrial TFT LCD RGB Interface Drawing
DC Characteristics (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test Condition |
| Operating voltage | VDD | 3.1 | 3.3 | 3.5 | V | – |
| Supply current | IDD | – | 12 | 15 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.7VDD | – | VDD | V | – |
| VIL | 0 | – | 0.3VDD | V | ||
| Input leakage current | IIL | -1.0 | – | 1.0 | mA | VIN=VDD or VSS |
Reliability Test
| Item | Condition | Time (hrs) | Assessment |
| High temp. Storage | 80°C | 120 |
No abnormalities in functions and appearance |
| High temp. Operating | 70°C | 120 | |
| Low temp. Storage | -30°C | 120 | |
| Low temp. Operating | -20°C | 120 | |
| Humidity | 60°C/ 90%RH | 120 | |
| Thermal Shock Temp. Cycle | -20°C ¬ 25°C ®70°C
(0.5 hour ¬ 5 min ® 0.5 hour) |
10cycles | |

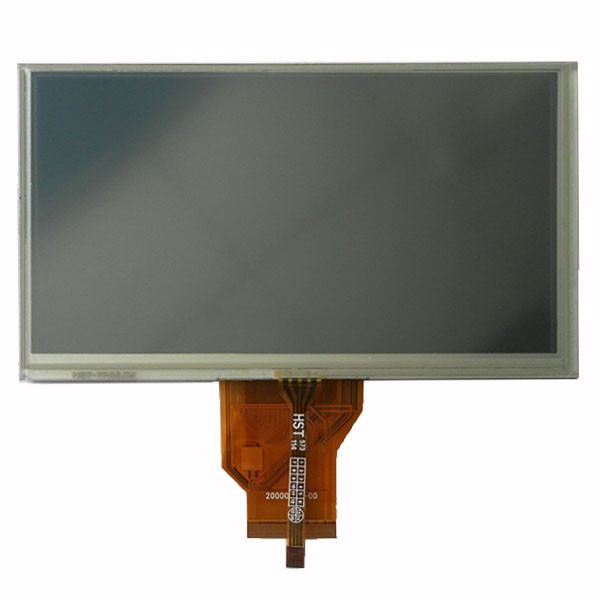

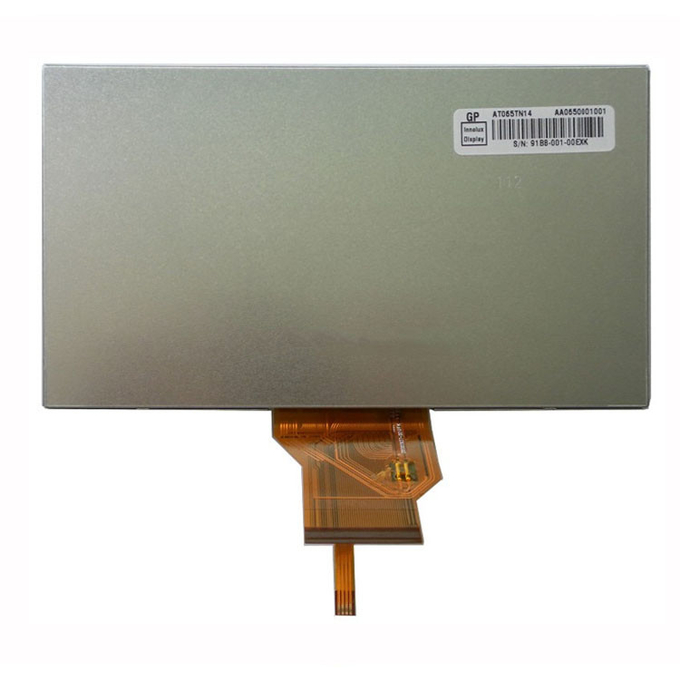

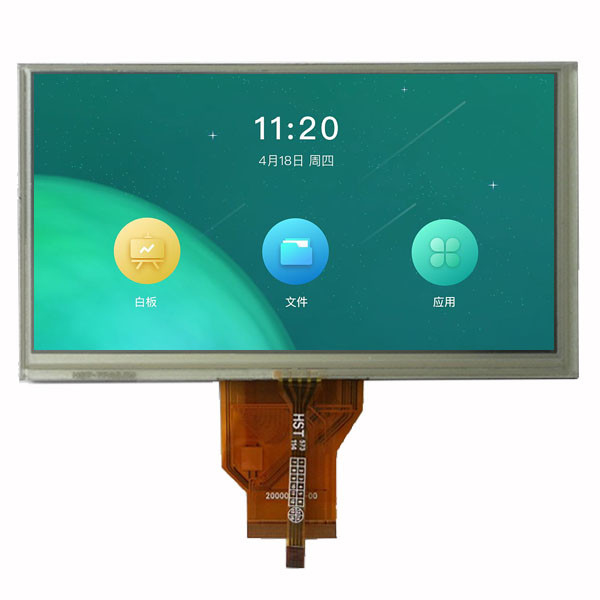

Resistive Touchscreen 6.5 Inch 800×480 Industrial TFT LCD RGB Interface ImageÂ
