Enigmatic COG LCD 128×64: Unveiling its Mysteries
In the realm of ShenZhen Techstar Electronics Incorporated Co., Ltd, lies the enigmatic 128×64 Monochrome Displays, embodied in the ethereal COG LCD SF12864-207B. Within its essence resides the profound ST7567 IC, a guardian of the arcane, beckoning through the SPI interface. Behold its form, dimensions spanning 65.8 x 36.8 x 6.2 mm, yet concealing a VA size of 53.0 x 24.6 mm, a paradoxical revelation.
This Monochrome Display, a chameleon of temperatures, dares to traverse realms from -0℃ to +50℃, its essence held in stasis within temperatures ranging from -10℃ to +60℃. A nomad of the LCD world, the COG 128×64 display, a wanderer seeking purpose, finds solace in applications thirsting for the embrace of compactness, where its mysteries unravel, casting shadows upon the mundane.
Pin Definition:
Pin1, /CS, Chip Select , When /CS= “L”, chip is selected
Pin2, /RST, When /RST= “L”, the settings are initialized
Pin3, A0, Select register data when A0= “H”, and instruction when A0= “L”
Pin4, SCL Serial clock input terminal
Pin5, SDA Serial data input terminal
Pin6, VDD Supply voltage for logic circuit +3.3V
Pin7, GND Ground
Pin8, V0 LCD driving voltage for common circuits at negative frame.
Pin9, XV0 LCD driving voltage for common circuits at positive frame.
Pin10, VG LCD driving voltage for segment circuits
SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD offers Graphic Display Modules within the COB/COG structures range. The Monochrome Graphic LCD displays include various sizes such as 122×32, 128×64, 128×128, 160×32, 160×80, 160×128, 160×160, 192×32, 192×64, 240×64, 240×128, 240×160, and 320×240. These modules come in STN/FSTN with LED backlighting and support different interfaces such as 6800, SPI, 8080, and I2C. Additionally, they offer character font options including English, Japanese, European, Cyrillic, Hebrew, Traditional Chinese, Simplified Chinese, Korean, and more.
Product Features:
| Product: | COG SPI LCD 128X64 |
| Resolution: | 128 X 64 Dots Resolution |
| Glass Type: | STN, Positive, Transflective |
| Optics: | 6:00 |
| Interface: | SPI |
| Outline Dim.: | 65.8 X 36.8 X 6.2 Mm |
| Viewing Area | 53.0 X 24.6 Mm |
| Pixel Pitch: | 0.36 X 0.345 Mm |
| Operating Temp | 0°C To +50°C |
| Pin Number: | 10 Pins |
| Controller: | ST7567 |
| Drive Mode: | 1/64 Duty Cycle, 1/9 Bias |
| Connector: | COG+FPC |
| Compliance: | REACH & RoHS Compliant |

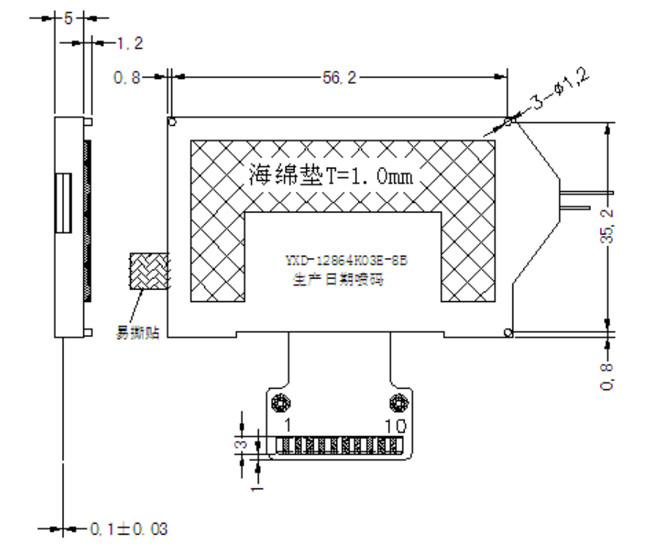

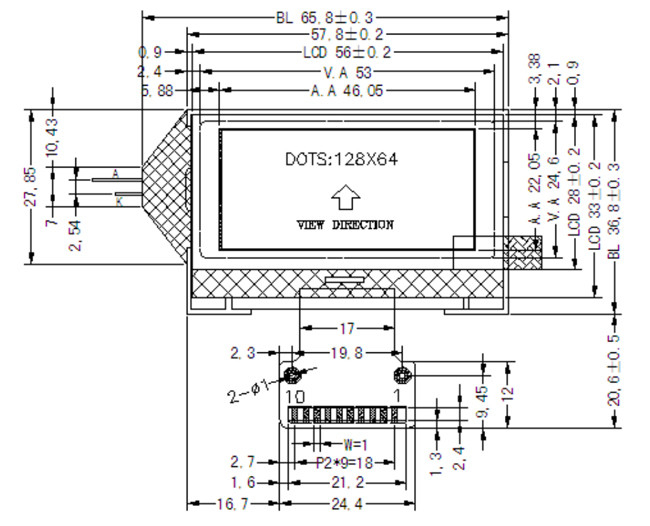

COG LCD 128×64, 128×64 SPI LCD Display Drawing

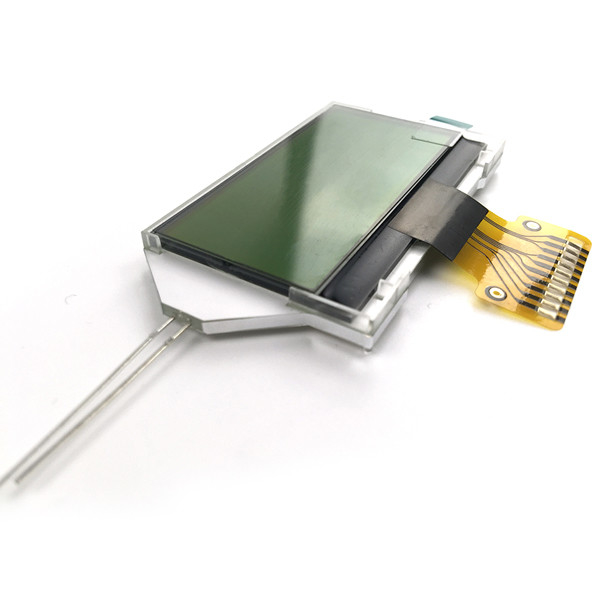

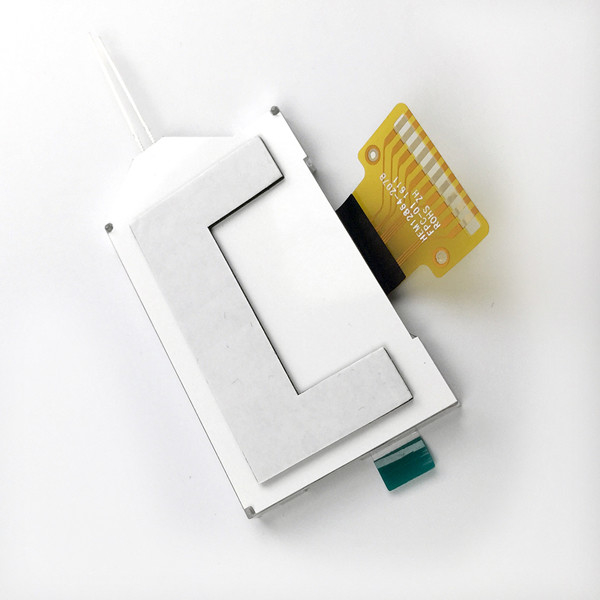

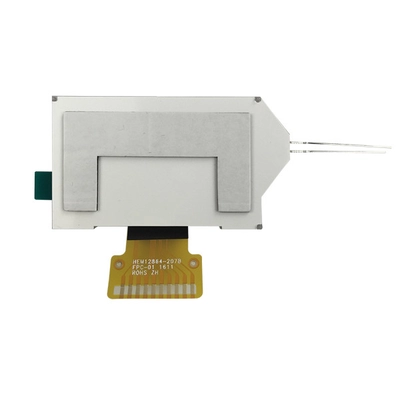

COG LCD 128×64, 128×64 SPI LCD Display Real Product Image
