Unveiling the SFOM130YZ7-12864WB-01: A 1.3″ OLED Marvel with SPI Interface, Bursting with Features
Dive into the technological excellence of the SFOM130YZ7-12864WB-01, an evolutionary upgrade from the SF-OS130YZ-12864WB-01. This 1.3-inch OLED display, boasting a pixel-packed 128×64 resolution, is not just a module; it’s a game-changer.

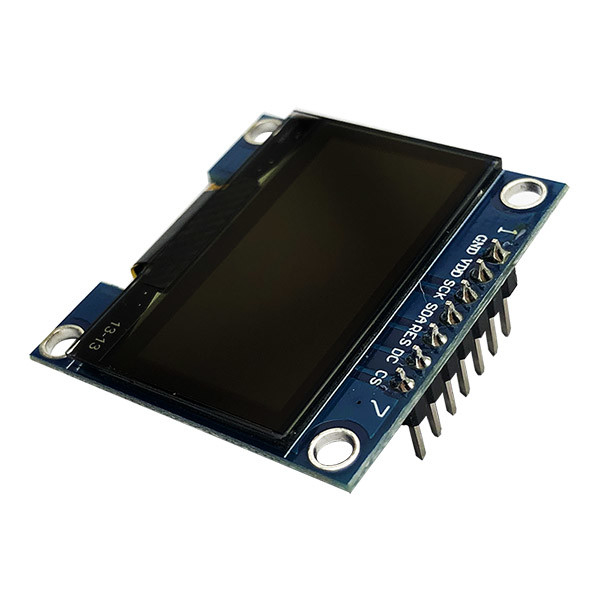

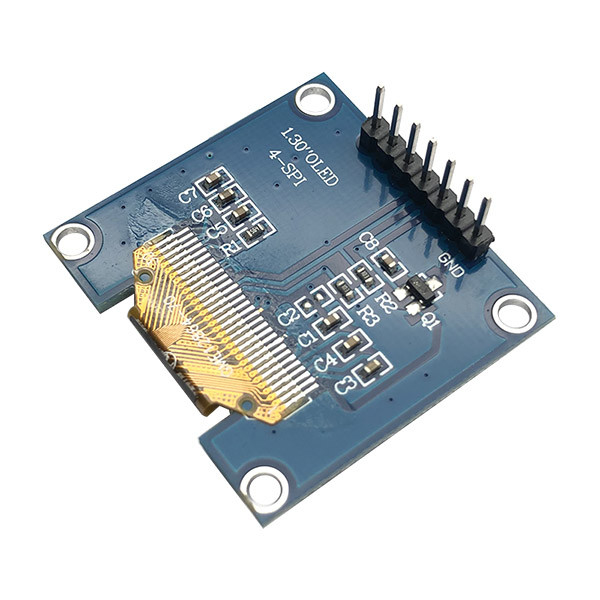

What sets the SFOM130YZ7-12864WB-01 apart? It comes with a user-friendly PCB board, equipped with four mounting holes for effortless integration into diverse applications. The module, powered by the SH1106 IC, offers versatility with a 4-wire SPI interface and an optional I2C interface. Operating with a driving duty of 1/64, it gracefully handles logic supply voltage ranging from 3.3V to 5V, with I/O level compatibility thanks to a conversion circuit. Witness a display that dances with 80mA @3.3VDD (typical value) at 50% check board current through its 7 header pins, or opt for the optional 4 pins header pins connection.
But this isn’t just about specs; it’s about a display that adapts. Whether it’s a smart home application, a medical device, smart control systems, or metering solutions, the SFOM130YZ7-12864WB-01 thrives. It fearlessly operates in temperatures from -40℃ to +85℃, proving its resilience across varied environments.
Key Features in Focus:
- Visual Brilliance: Immerse yourself in a 1.3-inch mini OLED display with a sharp 128×64 resolution powered by the SH1106 chipset.
- Efficiency Redefined: Experience ultra-low power consumption, with full-screen lighting requiring a mere 0.08w, ensuring prolonged and efficient use.
- Easy Integration: Four mounting holes facilitate a seamless installation process, aligning with the user’s convenience.
- Adaptable Interfaces: The SPI interface takes center stage, but the module gracefully entertains change with an optional I2C interface for added flexibility.
- Unmatched Compatibility: Support for a variety of control chips, making it fully compatible with Arduino 51 series, MSP430 series, STM32/2 CSR IC, and more.
- Powerful Voltage Range: Operate confidently within the DC 3V – 5V power voltage range, ensuring adaptability to diverse setups.
Upgrade your display game with the SFOM130YZ7-12864WB-01 – where innovation meets adaptability.
| Product: | 1.3 Inch SPI OLED 7 Pin |
|---|---|
| Resolution: | 128×64 Graphics |
| Interfaces: | 4 Wire SPI (I2C optional) |
| Viewing Algle: | All Viewing Angle |

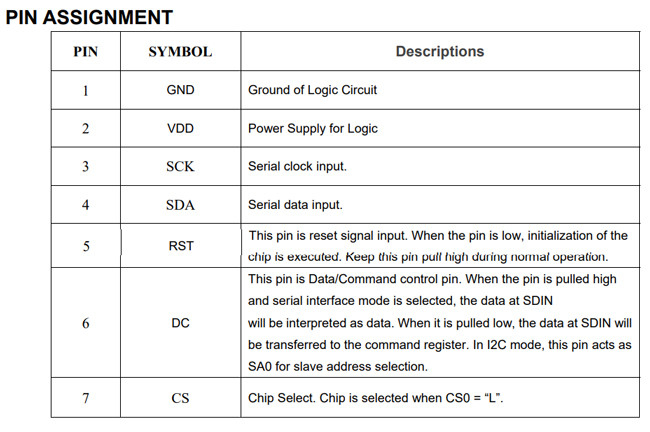

| Pin Number: | 7 Pins (4 pins optional) |
| Color: | White and Blue Optional |

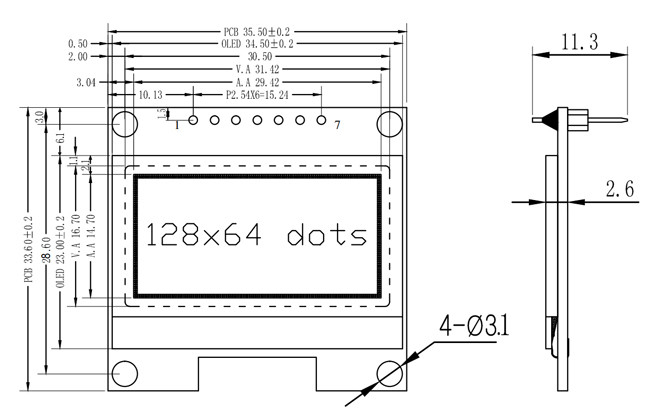

| Module Size: | 35.5(W)×33.6(H)×2.6(T) mm |
| Glass: | PMOLED (Passive Matrix OLED) |
| Controller: | SH1106 Or Equivalent |
| Opereating Temp.: | -40℃ To +85℃ |
| Contrast Ratio: | 2000:1 (Dark Room Contrast) |
| Compliance: | REACH & RoHS Compliant |
