Description
Sunlight-Optimized 15-Inch Industrial TFT Display with 1000 Nits Brightness and LVDS Interface

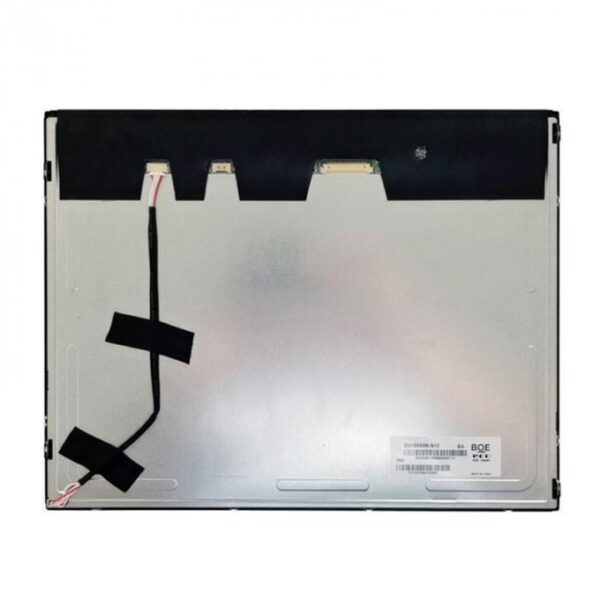

The SFTO1500XC-7121AN10 boasts a vibrant color active matrix TFT LCD design, employing amorphous silicon TFTs (Thin Film Transistors) as active switching devices. This industrial-grade TFT display features a generous 15-inch diagonal active area, offering XGA resolutions (1024 pixels horizontally by 768 pixels vertically). Each pixel comprises red, green, and blue dots, organized in a vertical stripe configuration, delivering a stunning palette of 16.7 million colors. Engineered for reduced reflection and enhanced color fidelity, the TFT-LCD MDL panel ensures optimal visual clarity. The SFTO1500XC-7121AN10 TFT LCD Display seamlessly integrates with BOE DV150X0M-N10.

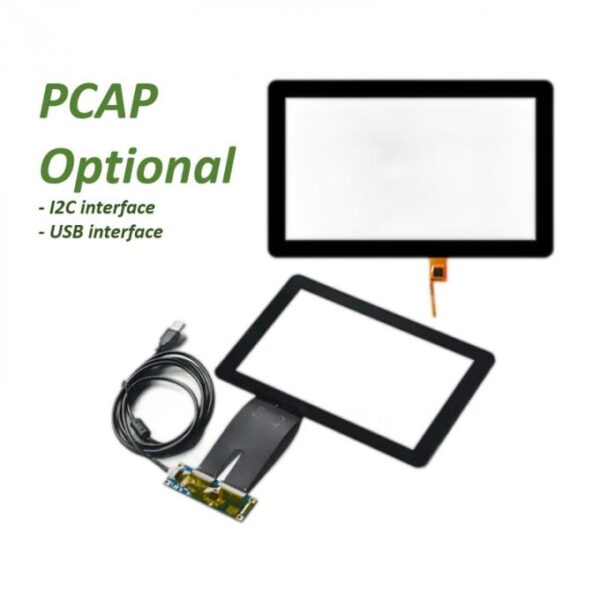

Designed with versatility in mind, the SFTO1500XC-7121AN10 industrial TFT display features a capacitive touch panel, offering both single-touch and multi-touch options. With a luminance of 1000cd/m², this display achieves a surface brightness of 1500cd/m², making it ideal for high-visibility applications, particularly in sunlight-intensive environments. For enhanced readability under direct sunlight, explore the SFTO1500XC-7121AN15 model.
General Specification
| Parameter | Specification | Unit | Remarks |
| Active area | 304.128(H) × 228.096(V) | mm | |
| Number of pixels | 1024(H) × 768(V) | pixels | |
| Pixel pitch | 0.297(H) × 0.297(V) | mm | |
| Pixel arrangement | Pixels RGB Vertical stripe | ||
| Display colors | 16.7M | colors | 6bits+FRC |
| Display mode | Normally Black | ||
| Dimensional outline | 326.5(H) × 253.5(V) × 9.7(Total) | mm | Detail refer to drawing |
| Weight | 930 | g | |
| Power Consumption | 8.72 | Watt | Typ. |
| Bezel width (L/R/U/D) | 10/10/11.7/11.7 | mm | |
| Surface Treatment | Haze 25%, 3H | ||
| Back-light | E-LED Light bar Type | ||
| LEDÂ life | 50000 | ||
| Display Direction | landscape & Portrait | ||
15 Inch LVDS Industrial TFT Display 1000 Nits 1024×768 Pixel Product Drawing

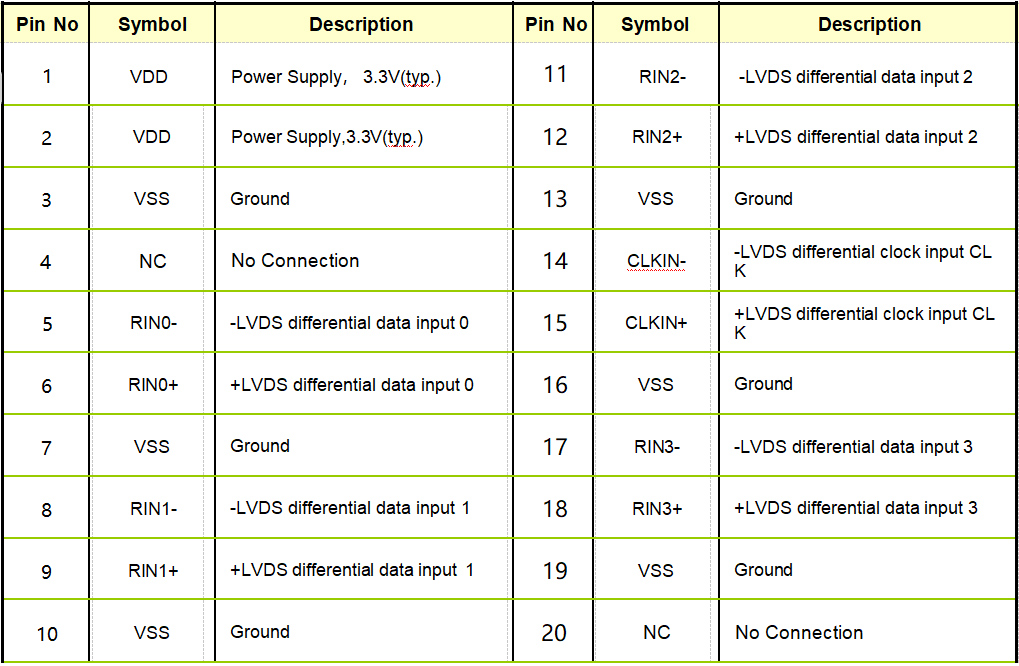

Interface Pin Definition
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Remark |
| Power Supply Voltage | VDD | -0.3 | 4 | V | Ta = 25 ℃ |
| Operating Temperature | TOP | -20 | +70 | ℃ |
Note 1 |
|
Storage Temperature |
TSUR | -20 | +70 | ℃ | |
| TST | -20 | +70 | ℃ | ||
| Operating Ambient Humidity | Hop | 10 | 90 | %RH | |
| Storage Humidity | Hst | 10 | 90 | %RH | |
Electrical Specifications
| Parameter | Symbol |
Values |
Unit | Remark | |||
| Min | Typ | Max | |||||
| Power Supply Input Voltage | VDD | 3.0 | 3.3 | 3.6 | V | Note 1 | |
| Power Supply Current | IDD | – | 410 | 740 | mA | ||
| Power Supply Ripple Voltage | VRP | – | – | 300 | mV | ||
| Rush Current | IRUSH | – | 2 | 3 | A | Note 2 | |
|
LVDS Interface |
Differential Input High
Threshold Voltage |
VLVTH |
– |
– |
+100 | mV |
VLVC=1.2V |
| Differential Input Low
Threshold Voltage |
VLVTL | –Â 100 |
– |
– |
mV | ||
| Common Input Voltage | VLVC | 0.7 | – | 1.6 | V | ||
|
CMOS Interface |
Input High Threshold
Voltage |
VIH | 0.7VDD |
– |
VDD | V | |
| Input Low Threshold
Voltage |
VIL | 0 |
– |
0.3VDD | V | ||
|
Power Consumption |
PD | 0.8 | 1.3 | W | |||
| PBL | 7.92 | 8.71 | Note 3 | ||||
| Ptotal | 8.72 | 10.1 | |||||

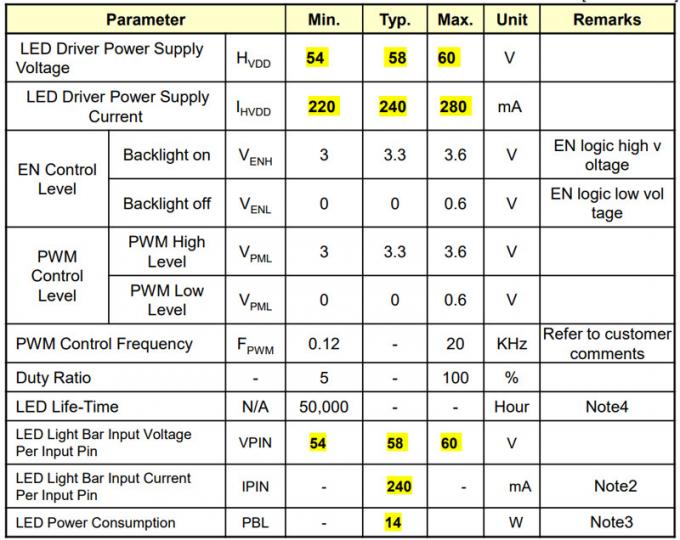

Backlight Unit Specifications

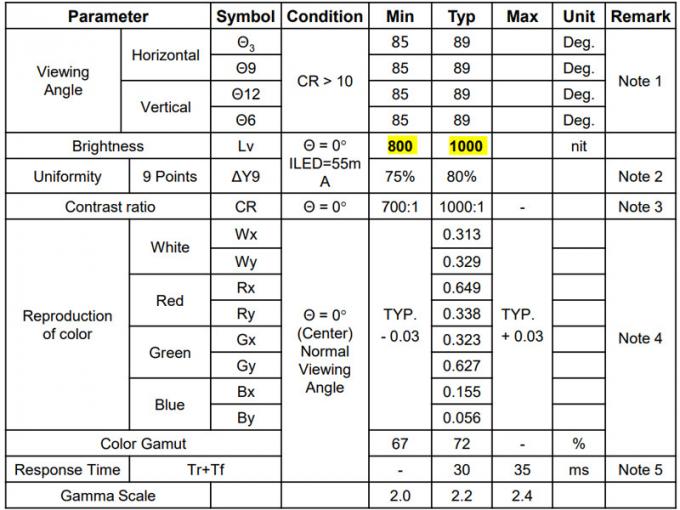

Optical Specifications
15 Inch LVDS Industrial TFT Display 1000 Nits 1024×768 Pixel Product Image
