Sunlight-Readable 2.4 Inch IPS TFT LCD Display with ILI9341V SPI Interface
The SFTC240B-7105A-CT TFT LCD display is a 2.4-inch portrait mode module featuring a capacitive touch screen (CTP). With a QVGA resolution of 240×320 pixels, this TFT LCD module is equipped with the ILI9341V IC (compatible with ST7789V IC) and supports an SPI interface. The analog supply voltage (Vcc) ranges from 2.4V to 3.6V, with a typical value of 3.3V. The module comes with an anti-glare surface panel, ensuring visibility from all viewing angles.
Designed for optimal readability even in bright sunlight, the SFTC240B-7105A-CT TFT display boasts a high-brightness backlight and a high-brightness polarizer, achieving a surface brightness of up to 1000 NITS. The CTP surface is anti-glare, enhancing readability under direct sunlight. This LCD module is ideal for use in embedded systems, industrial devices, security applications, and handheld equipment that demand high-quality and colorful image displays.
Product Features:
| Product: | 2.4 Inch TFT LCD Display |
| Resolution: | 240*320 |
| Viewing Direction: | IPS All Viewing Angles |
| Pin Number: | 15 Pins |
| Surface Luminance: | 1000 Cd/m2 |
| LED Lifetime: | 40,000 Hours |
| Touch Screen: | Capacitive Touch Panel |
| Cover Glass Dimension: | Customizable |
| Interface: | SPI |
| Connection: | Plug In |
| Driver IC: | ILI9341V |
| Compliance: | REACH & RoHS Compliant |

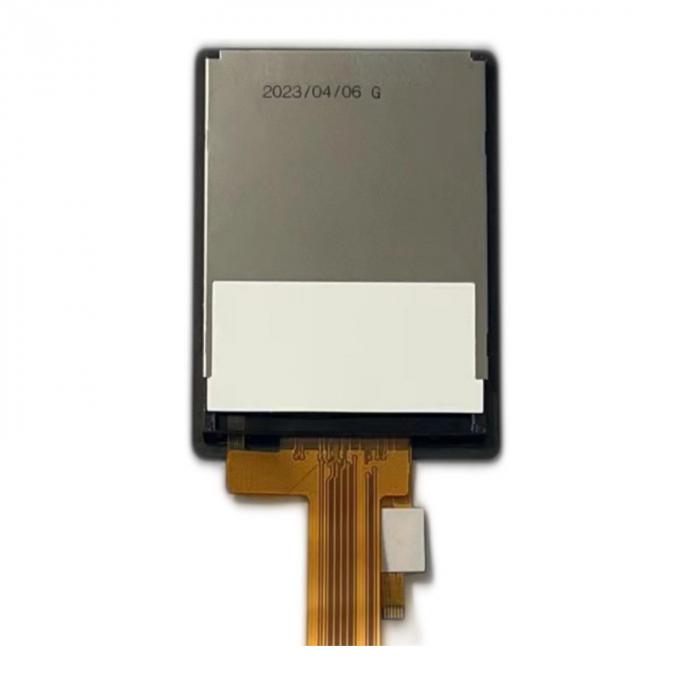

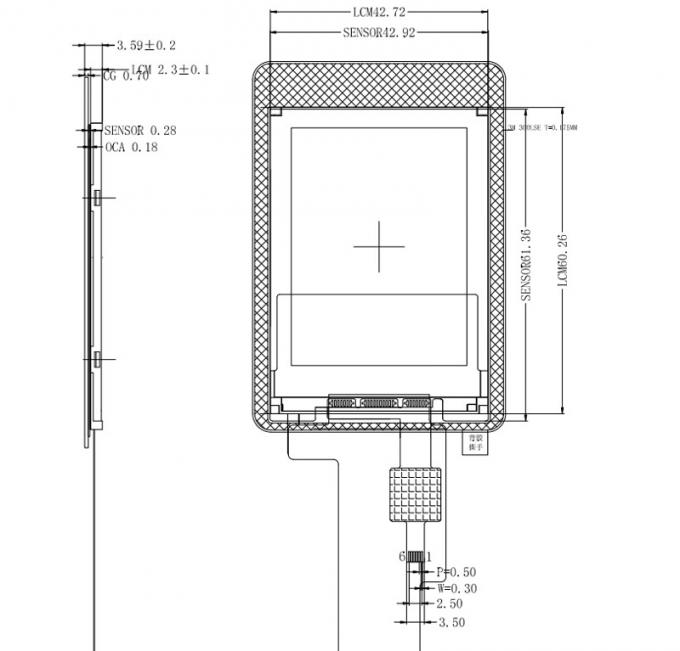

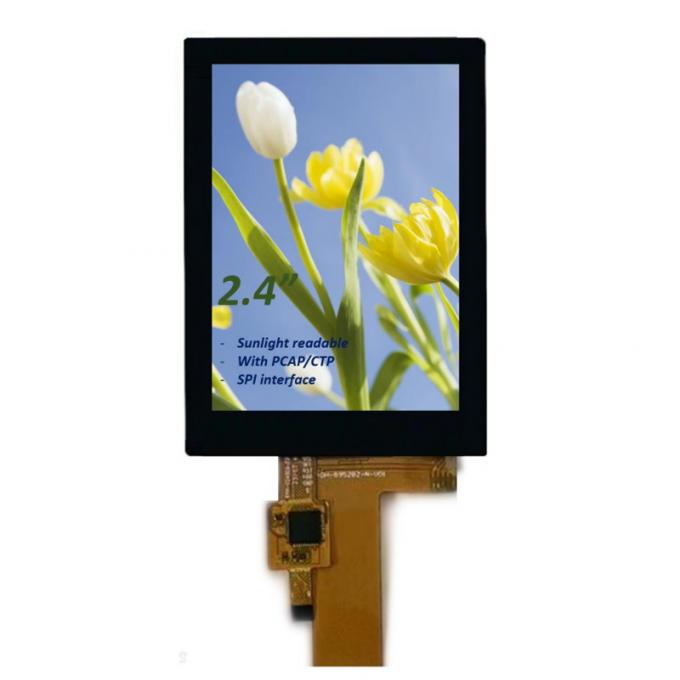

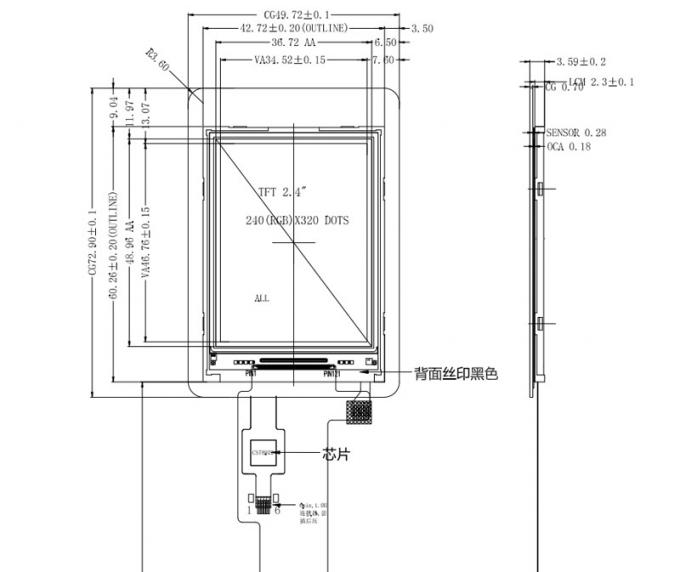

Sunlight Readable 2.4 Inch IPS TFT LCD Display SPI Interface​ Drawing
Interface Pin Definition
| NO. | PIN NAME | Description |
| 1 | GND | Power Supply 2.8V Voltage |
| 2 | RS | Display data/command selection pin in 4-line serial interface. |
| 3 | CS | -Chip selection pin |
| 4 | SCL | This pin is used to be serial interface clock. |
| 5 | DATA | SPI interface input pin. |
| 6 | RESET | LCM Reset input signal |
| 7 | VDD | SPI interface output pin. |
| 8 | VSS | Power Supply 2.8V Voltage |
| 9 | A | LED Anode |
| 10 | K | LED Cathode |
| 11 | TP_VCC | TP Power Supply for Analog Circuits |
| 12 | TP_RST | External Reset, Low is active |
| 13 | TP_INT | External interrupt to the host |
| 14 | TP_SCL | I2C clock input |
| 15 | TP_SDA | I2C data input and output |
