Unlock Vivid Clarity with Our 21.5 Inch Sunlight Readable TFT LCD Display Featuring USB Touch Screen
Introducing the SFTO2150SMT-7048A-CT PCAP TFT LCD display, a cutting-edge 21.5-inch marvel that redefines visual excellence. Utilizing amorphous silicon TFTs (Thin Film Transistors) as its active switching devices, this display boasts a stunning Full-HD resolution of 1920 by 1080 pixels within its 21.5-inch active area. Each pixel showcases a meticulous arrangement of RED, GREEN, and BLUE dots, forming a vertical stripe pattern, enabling the display to render a vibrant spectrum of 16.7 million (6bit+2FRC) colors with a color gamut of 72%. Embedded within is an advanced LED driver, ensuring optimal back-lighting performance.
The SFTO2150SMT-7048A-CT PCAP TFT display captivates with its seamless presentation of graphics and text across a 1920×3×1080 dotspanel, showcasing 16.7M colors. Leveraging Dual-channel LVDS and 8-bit RGB data input, and powered by a +3.3VDC supply voltage, this display delivers unparalleled clarity and precision. Its color filters, meticulously integrated for superior color rendition, guarantee vivid and lifelike images, making it ideal for multimedia applications. Enjoy an immersive viewing experience from every angle, thanks to its wide viewing angles.
Key Features:
- LVDS interface for seamless connectivity
- High-speed response ensures fluid performance
- 6-bit (Hi-FRC) color depth, displaying 16.7 million colors
- Edge-lit LED backlight for enhanced brightness
- Compatibility with RGB98% and NTSC45% (NTSC72% available)
- Remarkable luminance and contrast ratio, minimal reflection
- DE (data enable) only for streamlined operation
- Rohs and Halogen-free, ensuring environmental compliance
- TEO 6.0, ES6.0 Compliant
- Gamma Correction for optimized visuals
Voltage Supply VDD: 5.0 Volts
Current Supply IVDD: 500 milliamps
Initial Surge Current IRUSH: 2.0 Amps
Allowable Input Ripple Voltage VRF: 300 millivolts
Threshold Voltage for High-Level Differential Input VIH: +100 millivolts
Threshold Voltage for Low-Level Differential Input VIL: -100 millivolts
Differential Input Voltage VID: Ranges from 200 to 600 millivolts
Input Voltage Range VBL_I: From -0.3 to VDD+0.3 millivolts (with VIH at 100 millivolts and VIL at -100 millivolts)
Common Mode Voltage for Differential Input VCM: 1.0, 1.2, 1.5 Volts
Power Consumption VD: Ranges from 2.5 to 6 Watts
Product Information:
| Keywords: | 21.5 Inch PCAP TFT Display |
| Resolution: | 1920*1080 Pixels |
| LCD Interface: | LVDS |
| LCD Size: | 495.6 X 292.2 X 10.57 Mm (w/o Touch) |
| LCD With Touch: | 526 X 324 X 15.16 Mm (with Touch) |
| Active Area: | 476.064(H) X 267.786(V) Mm |
| CTP Interface: | USB |
| Surface Luminance: | 1000 Cd/m2 |
| Touch Screen: | CTP (Projective Capacitive Touch Screen) |
| Operating Temp.: | -10℃ To +60℃ |
| Storage Temp.: | -20℃ To +60℃ |
| Display Type: | IPS Full Viewing Angles |
| Contrast Ratio: | 1000 |
| LED Lifetime: | 30,000 Hours |
| Surface Treatment: | Haze 25%, 3H |
| Display Color: | 16.7 M |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant |

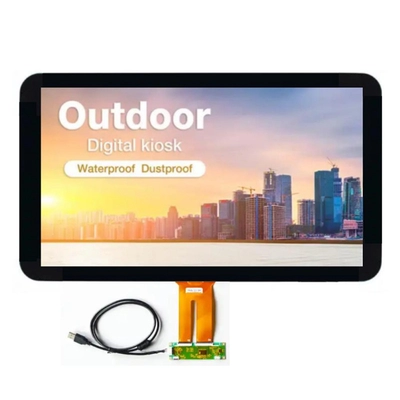

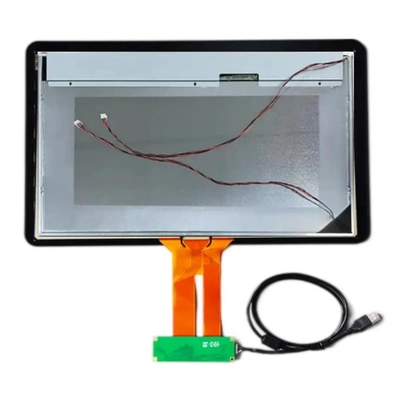

Sunlight Readable 21.5 Inch TFT LCD Display With USB Touch Screen Product Image

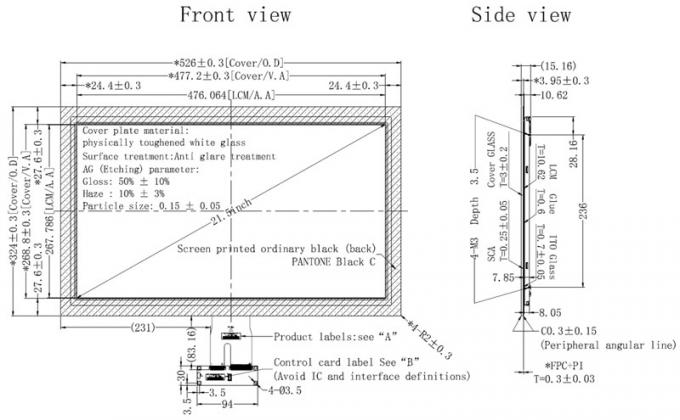

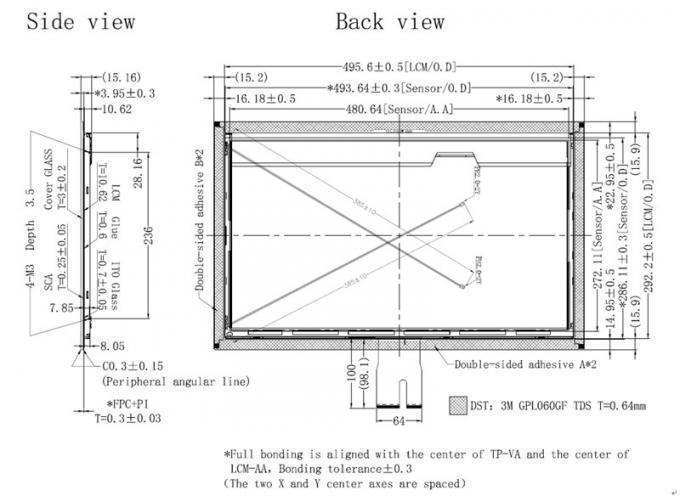

Sunlight Readable 21.5 Inch TFT LCD Display With USB Touch Screen Product Drawing
