Sunlight Readable 27 Inch UFD TFT LCD Display 60Hz 1000nits EDP Interface

Introducing the Sunlight-Optimized 27-Inch UFD TFT LCD Display: Enhancing Visibility with 60HZ Refresh Rate and 1000nits Brightness via EDP Interface

Embark on a visual journey with our SFTO2700B-7125AN Industrial TFT display, boasting a generous 27-inch diagonal active area and stunning UHD resolutions of 3840 by 2160 pixels. Every pixel, meticulously crafted into vibrant hues, is segmented into RED, GREEN, and BLUE dots, arranged in elegant vertical stripes, resulting in a palette of 1.07 billion colors. The TFT-LCD panel within this marvel is meticulously calibrated for minimal reflection and superior color rendition, ensuring a visual experience that transcends expectations.

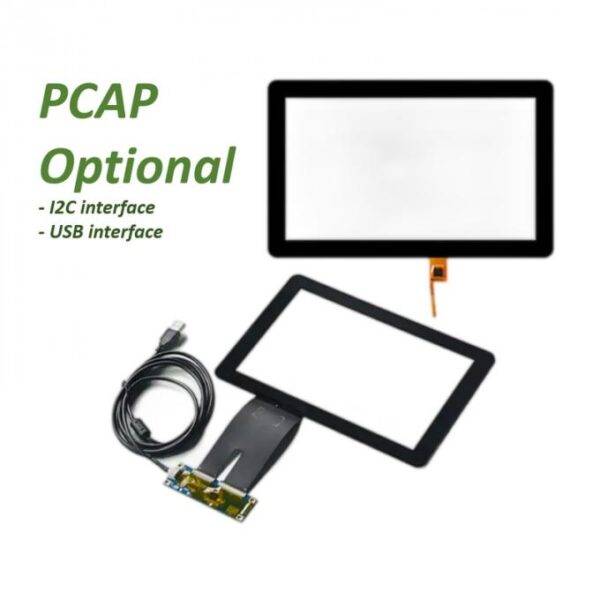

Operating seamlessly with an eDP interface, our industrial-grade TFT LCD Display Module operates optimally within a voltage range of 9V to 11V, delivering a maximum of 11V for peak performance. But that’s not all – our SFTO2700B-7125AN is also equipped with a capacitive touch panel, offering both single-touch and multi-touch functionalities to cater to diverse user needs.

With a luminance of 1000cd/m2, this TFT touch LCD promises exceptional clarity even under the brightest of conditions, ensuring uncompromised visibility in industrial and medical environments, POS terminals, HMIs, home automation setups, security systems, and beyond. Crafted to meet stringent quality standards, this industrial-grade display is the epitome of reliability and performance. Experience excellence with every glance – experience the SFTO2700B-7125AN.

This 27-inch industrial/medical TFT LCD can be displayed in reverse, landscape, and portrait orientations. It supports Type 4-lane eDP interfaces with a 5.4Gbps link rate. The LCD touch display boasts vivid colors and excellent saturation, featuring 10-bit (8bit+A-FRC) color depth and a display of 1.07 billion colors. It utilizes an IPS panel with a built-in edge-type LED backlight.

This EDP monitor is compatible with NTSC 90% and sRGB matching rates of 98% (Typ.) and an area ratio of 105% (Typ.). With a high brightness of 1000 nits and a high contrast ratio of 1000:1, it ensures low reflection and wide viewing angles. Additionally, this sunlight-readable TFT monitor is eco-friendly, being RoHS and halogen-free. Furthermore, it supports gamma correction for enhanced display performance.

Features
