Description
Introducing the SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD SF-TO570I-8968A-N, a 5.7-inch marvel of full TFT-LCD brilliance boasting a resolution of FHD 1920×1080 (1920 horizontal by 1080 vertical pixels array). This technological gem supports the LVDS interface, with the driving LCD panel’s supply voltage (VCC) ranging from 2.8V to 3.6V (typical value at 3.3V). Ideal for embedded systems, automation, medical equipment, and industrial devices, this display caters to applications where a TFT display delivering high-quality, vibrant images is paramount.
Enter the SF-TO570I-8968A-N, an IPS-LCD TFT with a dazzling brightness of 1000 cd/m2 (typical value). However, for applications not requiring such luminosity, the brightness can gracefully scale down to 300 nits. Operating seamlessly across temperatures from -20℃ to +70℃, with storage capabilities extending from -30℃ to +80℃, it stands as a versatile choice for varied environments.
Product Features:
| Product: | 5.7″ Inch FHD LVDS TFT LCD |
| Viewing Direction: | IPS All Viewing Angles |
| Cover Lens: | Customizable |
| Interface: | LVDS |
| Connection: | Plugging / ZIF ( Customizable) |
| Operating Temp.: | -20℃ To +70℃ |
| Resolution: | 1920×1080 Pixels |
| Touch Screen: | Without Touch, PCAP Optional |
| Surface Luminance: | 1000 Cd/m2 ( Customizable) |

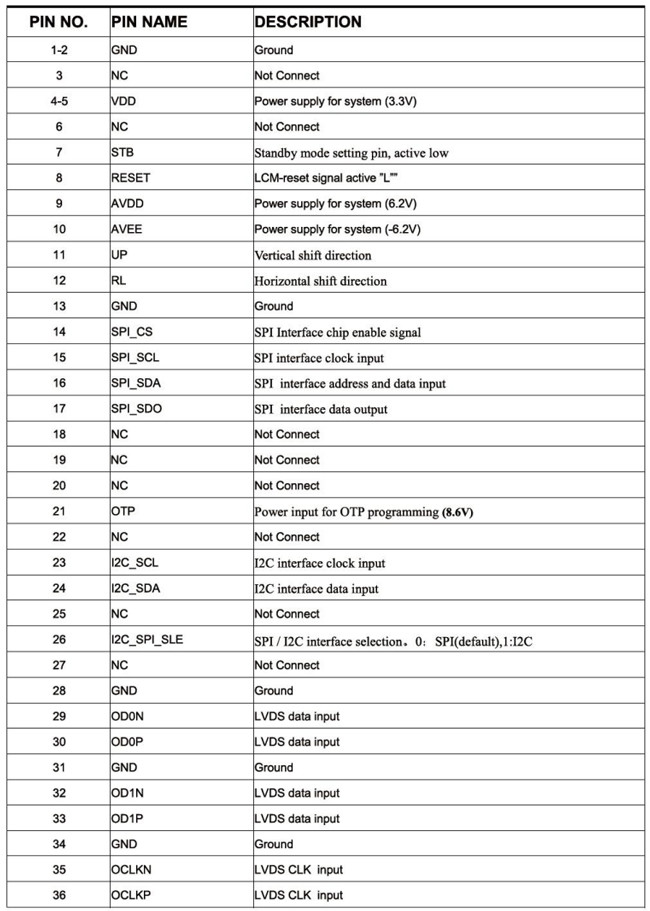

| Pin Number: | 60 Pins |
| Driver IC: | HX8239 |
| Compliance: | REACH & RoHS Compliant |

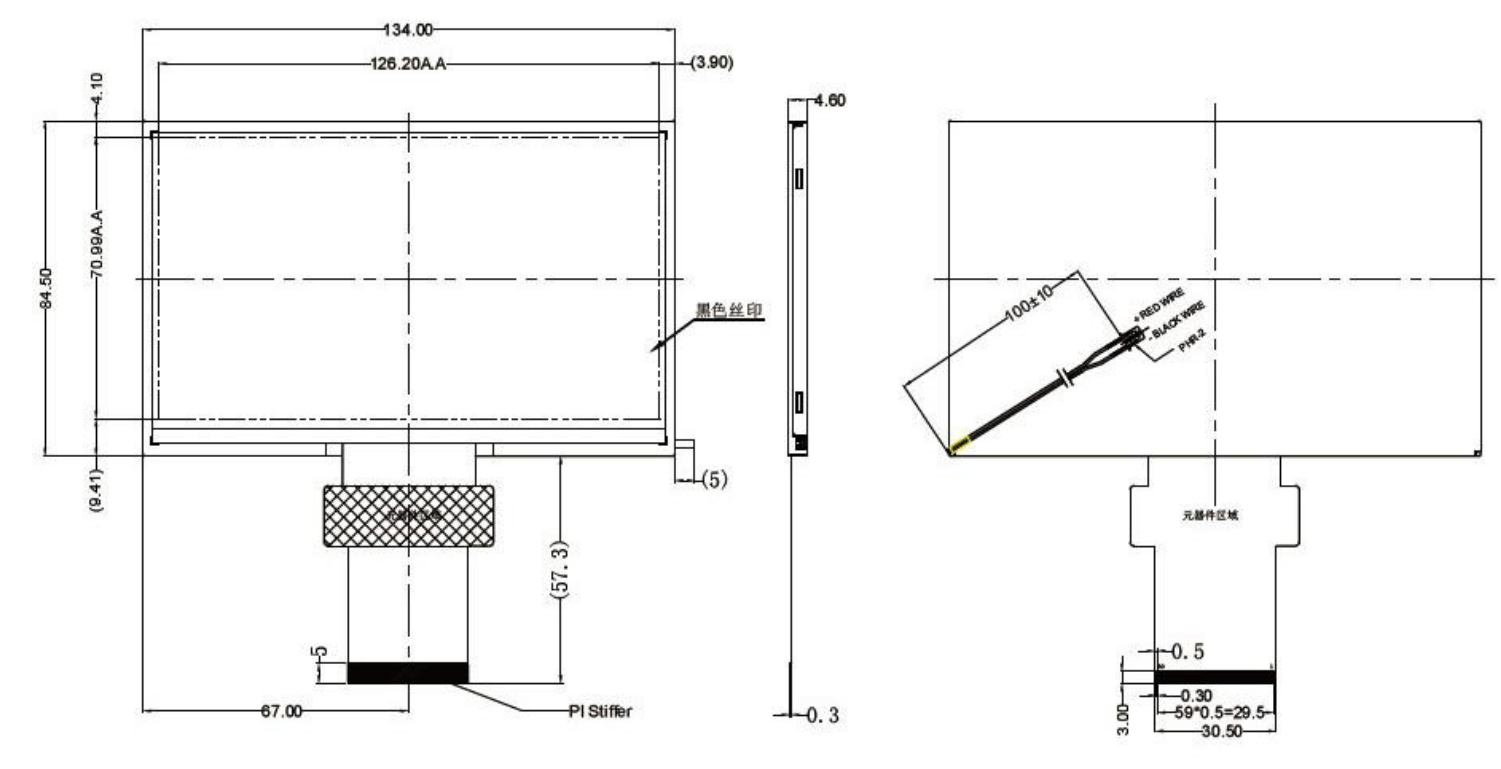

LVDS 5.7 inch TFT, 5.7″ FHD TFT LCD Drawing
DC Characteristics (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test Condition |
| Operating voltage | VDD | 2.8 | 3.3 | 3.6 | V | If=90mA |
| Supply current | IDD | – | 38 | 45 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | – | VDD | V | – |
| VIL | 0 | – | 0.2VDD | V | ||
| Input leakage current | IIL | -1.0 | – | 1.0 | mA | VIN=VDD or VSS |
Reliability Test
| Item | Condition | Time (hrs) | Assessment |
| High temp. Storage | 80°C | 120 |
No abnormalities in functions and appearance |
| High temp. Operating | 70°C | 120 | |
| Low temp. Storage | -30°C | 120 | |
| Low temp. Operating | -20°C | 120 | |
| Humidity | 60°C/ 90%RH | 120 | |
| Thermal Shock Temp. Cycle | -20°C ¬ 25°C ®70°C
(0.5 hour ¬ 5 min ® 0.5 hour) |
10cycles | |

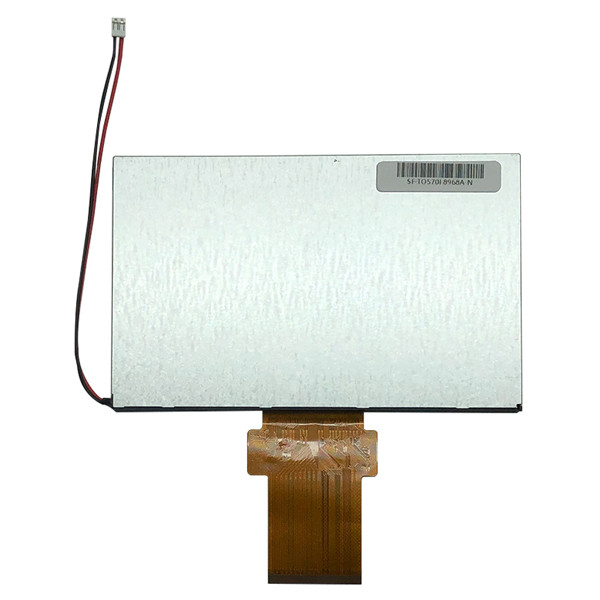

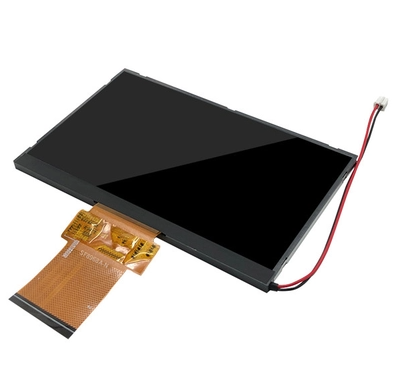

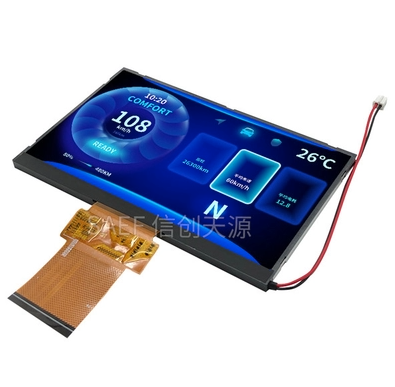

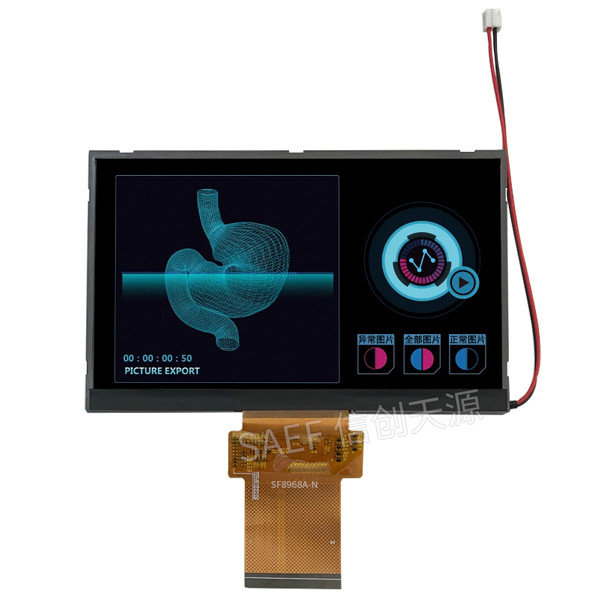

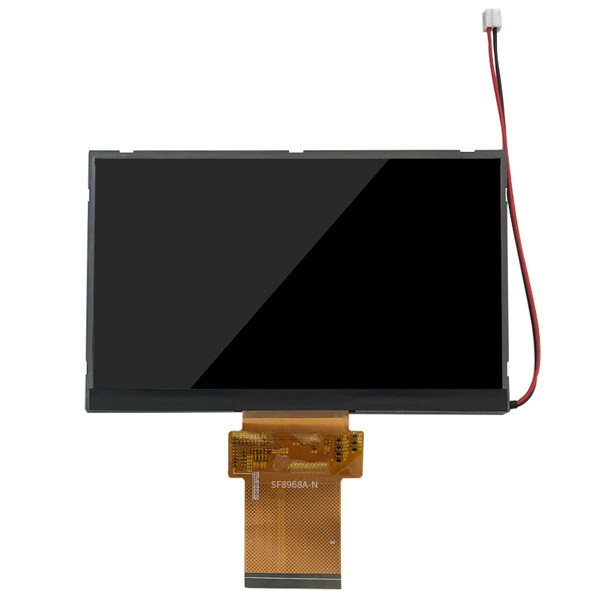

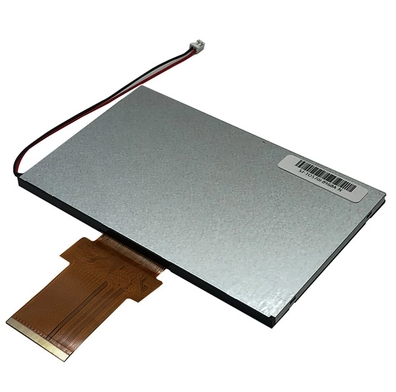

LVDS 5.7 inch TFT, 5.7″ FHD LCDÂ Product Image
