Description
TFT LCD Touch 7 Inch 1024×600 IPS Full Viewing Angle RGB Interface With Capacitive Touch Screen

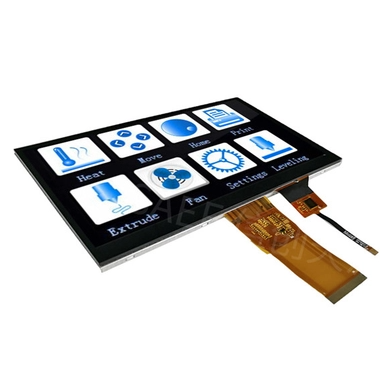

7 inch TFT LCD Touch Module Description
SAEF Technology SF-TO700B-8834A-CT is a 7inch IPS type full viewing angle TFT LCD Display with resolution of QVGA 1024×600 pixels. It is a hot sales product and very popular among customers.
Product Quick Details:
1. LCD Size: 7” inch TFT
2. Resolution: 1024×600
3. Viewing Angle: Free
4. Outline Dimension: 164.90×100.00×5.87 mm
5. LCD Driver IC: ILI6150C
6. LCD Interface Type: RGB
7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
8. Touch Panel: Capacitive Touch Screen(CTP)
Product Features:
| Product: | 7″ Inch TFT LCD Touch |
| Resolution: | 1024×600 |
| LCM Interface: | RGB |
| LED Lifetime: | 40,000 Hours |
| Viewing Direction: | All |
| Operating Temp.: | –20℃ To +70℃ |
| Touch Screen: | Capacitive Touch Screen(CTP) |
| Cover Glass Dimension: | Optional For Customization |
| Surface Luminance: | 250 Cd/m2 |
| Pins: | 50 Pins |
| CTP Interface: | I2C |
| Compliance: | REACH & RoHS Compliant |

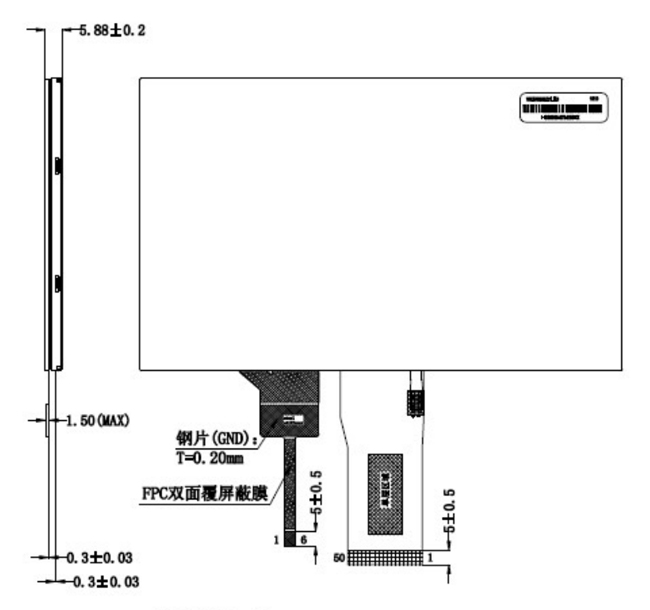

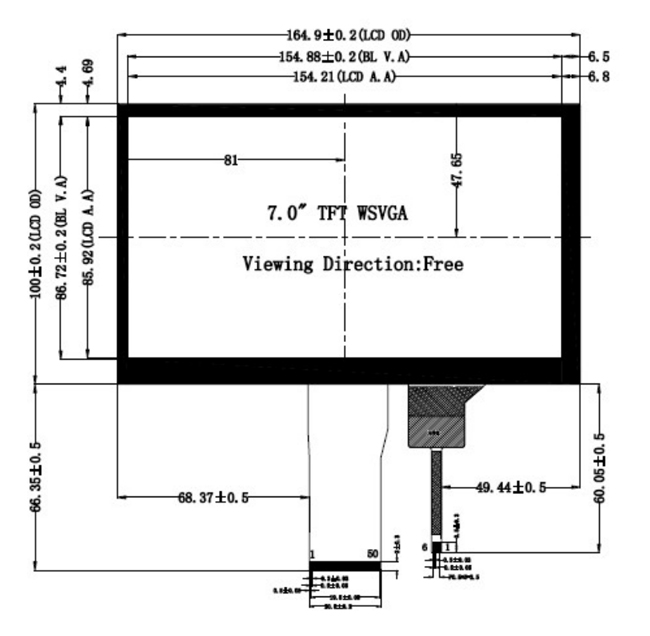

TFT LCD with Capacitive Touchscreen 7 Inch 1024×600 IPS RGB Interface Drawing
LCM PIN Definition
Interface
| Pin | Symbol | Function |
| 1~2 | A | Power supply for backlight |
| 3~4 | K | Backlight ground |
| 5 | GND | Power ground |
| 6 | VCOM | Common voltage |
| 7 | VCC | Power for Digital Circuit |
| 8 | MODE | DE/SYNC mode select |
| 9 | DE | Data Input Enable |
| 10 | VS | Vertical Sync Input |
| 11 | HS | Horizontal Sync Input |
| 12-19 | B7 – B0 | Blue data(MSB) |
| 20-27 | G7 – G0 | Green data(MSB) |
| 28-35 | R7 – R0 | Red data(MSB) |
| 36 | GND | Power Ground |
| 37 | DCLK | Sample clock |
| 38 | GND | Power Ground |
| 39 | L/R | Left / right selection |
| 40 | U/D | Up/down selection |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD | Power for Analog Circuit |
| 44 | RESET | Global reset pin. |
| 45 | NC | No connection |
| 46 | VCOM | Common Voltage |
| 47 | DITHB | Dithering function |
| 48 | GND | Power Ground |
| 49~50 | NC | No connection |
Reliability Test
| Item | Condition | Time (hrs) | Assessment |
| High temp. Storage | 80°C | 120 |
No abnormalities in functions and appearance |
| High temp. Operating | 70°C | 120 | |
| Low temp. Storage | -30°C | 120 | |
| Low temp. Operating | -20°C | 120 | |
| Humidity | 60°C/ 90%RH | 120 | |
| Thermal Shock Temp. Cycle | -20°C ¬ 25°C ®70°C
(0.5 hour ¬ 5 min ® 0.5 hour) |
10cycles | |

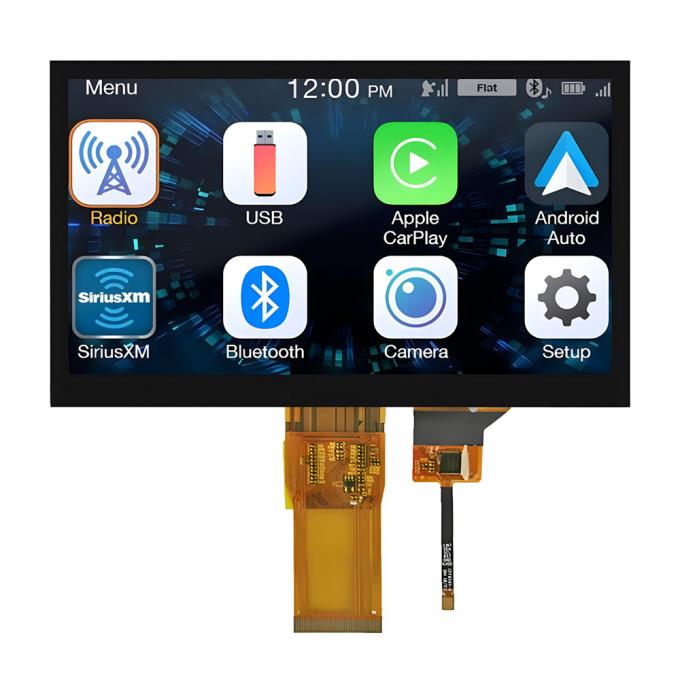

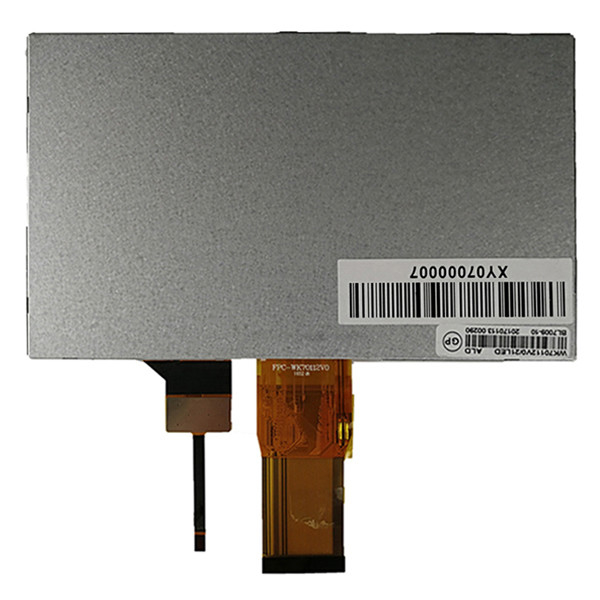

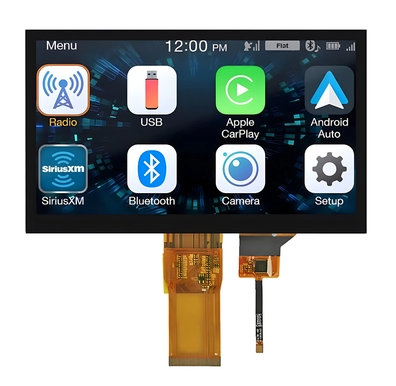

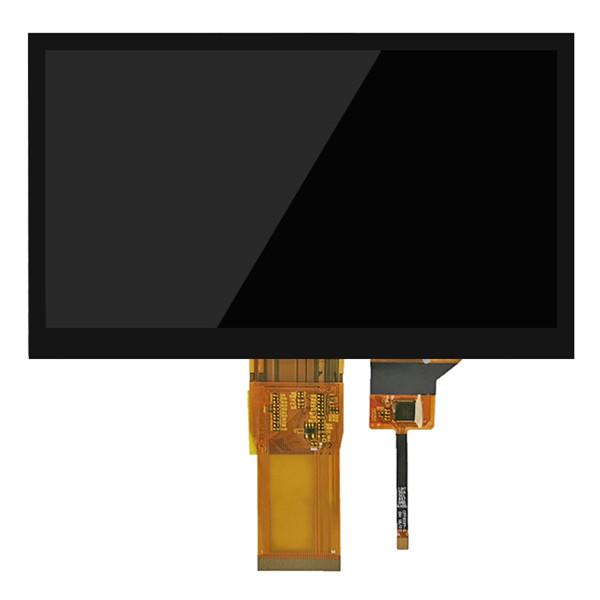

TFT LCD with Capacitive Touchscreen 7 Inch 1024×600 IPS RGB Interface Image
