TFT Display Factory Supply 1.77 Inch, 1.77″ SPI Interface TFT LCD 128×160 Dots

1.77 Inch SPI TFT Display with 128×160 Resolution for Medical Applications

Product Description:

The SF-TC177L-9227A-N is a 1.77-inch TFT LCD module designed in portrait mode, offering a resolution of 128×160 dots.

Key Features:

Versatile Interface: The SF-TC177L-9227A-N supports SPI interface, making it suitable for integration into handheld devices, medical equipment, and various small-sized consumer electronics.

Integrated IC: This TFT LCD module is equipped with the S6D02A01 IC, which is compatible with the ST7735 IC, ensuring smooth functionality and compatibility with existing systems.

Optimized Voltage Range: With a supply voltage range for analog (Vcc) between 2.6V to 3.3V (typical value 2.8V), the SF-TC177L-9227A-N is efficient and adaptable to different power requirements.

Anti-Glare Surface: Featuring an anti-glare surface panel, the SF-TC177L-9227A-N ensures clear visibility even in brightly lit environments.

Viewing Angle and Gray Scale: The display offers a view direction of 6 o’clock, with gray scale inversion at 12 o’clock, providing flexibility in installation and readability.

Wide Temperature Range: The SF-TC177L-9227A-N operates reliably in a broad temperature range, from -20°C to +70°C, with storage temperatures ranging from -30°C to +80°C, ensuring durability and performance in various environmental conditions.

Product Information

1.77 inch SPI TFT Display Drawing

Interface Pin Definition

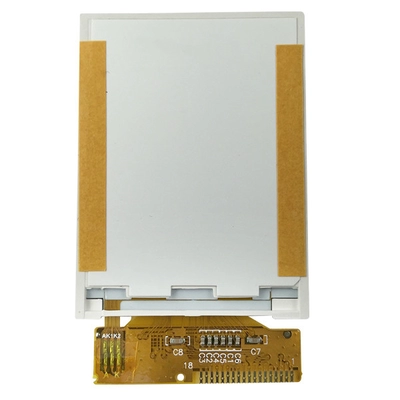

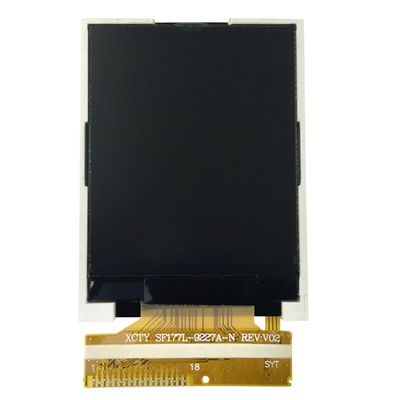

1.77 inch SPI TFT Display Real Product Image
